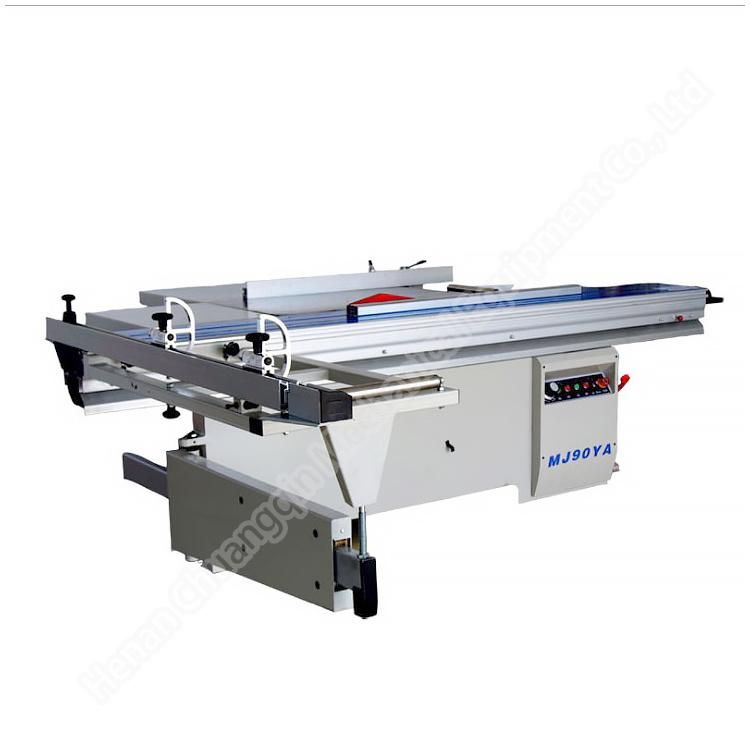

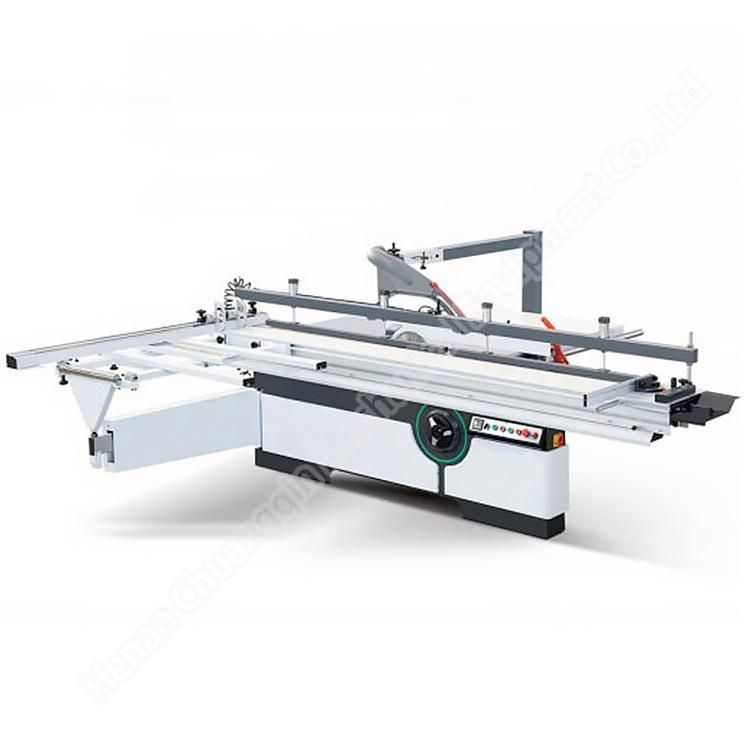

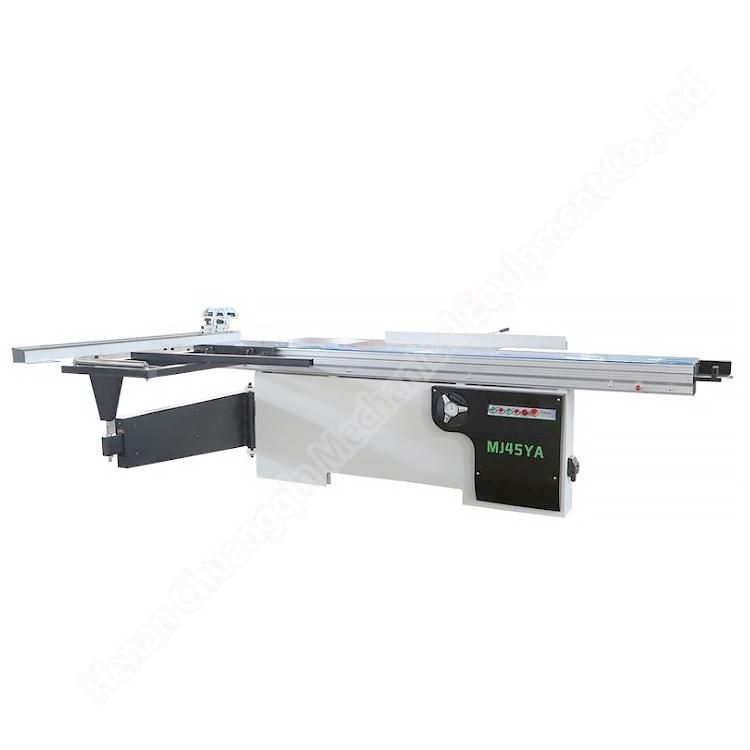

45 or 90 Degree Wood Plywood Saw Cutting Machine Panel Saw Machine Sliding Sliding Table Saw Machines for Panel Table Panel Saw Cutter Wood Table Saw Machine
Henan Chuang Qin Mechanical Equipment Co., Ltd.- Warranty:1 Year
- Type:Table Panel Saw
- Power Type:Electric
- Layout:Vertical
- Controlling Mode:CNC
- Automatic Grade:Automatic
Base Info
- Model NO.:CQ-MJ6130YZ
- Precision:Precision
- Certification:CE
- Customized:Customized
- Condition:New
- Color:Iron Grey
- After-sales Service:Online Services
- Product Name:Table Saw Machine
- Dimensions of Sliding Table:3000*370mm
- Saw Blade Angle:45degree
- Power of Main Saw Spindle:4kw,5.5kw
- Usage:Woodworking
- Core Components:PLC
- Voltage:380V
- Key Selling Points:Easy to Operate
- Name:Panel Sliding Table Saw Machine
- Weight:900kg
- Transport Package:Wooden Case
- Specification:3200*3050*900mm
- Trademark:CQ
- Origin:Henan
- Production Capacity:1000 Set,Sets Per Month
Description
Basic Info.
Model NO. CQ-MJ6130YZ Precision Precision Certification CE Customized Customized Condition New Color Iron Grey After-sales Service Online Services Product Name Table Saw Machine Dimensions of Sliding Table 3000*370mm Saw Blade Angle 45degree Power of Main Saw Spindle 4kw/5.5kw Usage Woodworking Core Components PLC Voltage 380V Key Selling Points Easy to Operate Name Panel Sliding Table Saw Machine Weight 900kg Transport Package Wooden Case Specification 3200*3050*900mm Trademark CQ Origin Henan Production Capacity 1000 Set/Sets Per MonthProduct Description
45 or 90 degree Wood Plywood Saw Cutting Machine panel saw machine sliding sliding table saw machines for panel table panel saw cutter Wood Table Saw MachineProduct Description:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
45 or 90 degree Wood Plywood Saw Cutting Machine panel saw machine sliding sliding table saw machines for panel table panel saw cutter Wood Table Saw Machine
Technical Parameter:
Model | CQ-MJ6130YZ | CQ-6128YZ |
Dimensions of sliding table | 3000*370mm | 2800*310mm |
Maximum saw spindle diameter | 30mm | 30mm |
Saw blade Angle | 45° | 90° |
Power of main saw spindle | 4kw/5.5kw | 4kw/5.5kw |
Scoring saw blade diameter | 120mm | 120mm |
Scoring saw spindle speed | 8000rpm | 8000rpm |
Auxiliary shaft diameter | 20mm | 20mm |
Overall dimensions | 3200*3050*900mm | 3200*3050*900mm |
Weight | 900kg | 900kg |
Maximum cutting length | 3200mm | 3200mm |
Maximum cutting width | 1250mm | 1250mm |
Maximum sawing thickness | 80mm | 80mm |
Saw blade diameter | 300mm | 300mm |
Spindle speed | 4500/6000rpm | 4500/6000rpm |
Auxiliary motor power | 0.75kw | 0.75kw |
1.Euro design sliding table, this will make the machine more stable, and greatly enhance the pressure bearing capacity of the machine.
2.Circular rod structure with chromium plating, the positioning is more accurate than the linear guide, the push table is smoother.

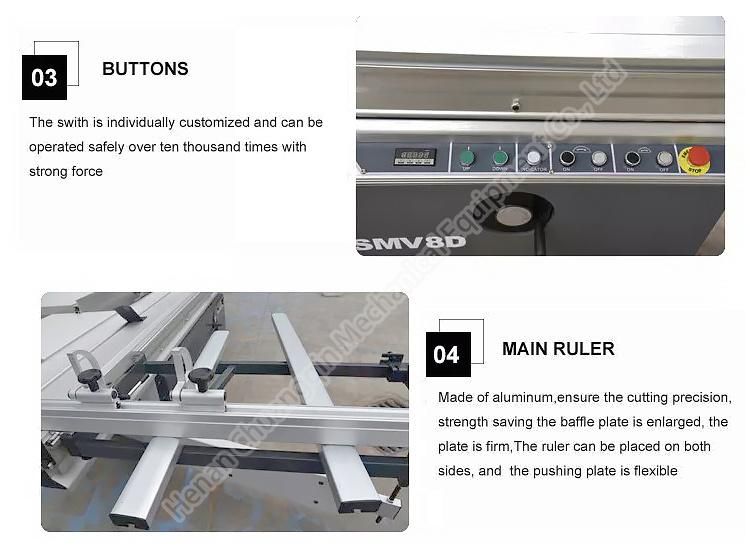

3.Big ruler, made of aluminum alloy material, stable and non-displacement, effectively guarantees the precision in the cutting process, can increase the stretching space, promote smooth, and save time and labor.
4.Main and scoring saw blade, first slotted by a scoring saw, followed by a main saw can easily cut the sheet to prevent chipping burrs, in addition, the size of the saw blade can be used alone.
Product Details:
45 or 90 degree Wood Plywood Saw Cutting Machine panel saw machine sliding sliding table saw machines for panel table panel saw cutter Wood Table Saw Machine
45 or 90 degree Wood Plywood Saw Cutting Machine panel saw machine sliding sliding table saw machines for panel table panel saw cutter Wood Table Saw Machine
