Wood Knife Ring Flaker for Pb Production Line
Suzhou Trillion Shine Import & Export Co., Ltd.- After-sales Service：Lifttime
- Warranty：1 Year
- Type：Flaker
- Automatic：Semi-Automatic
- Transport Package：Safe Seaworthy Package.
- Specification：800-1400mm
Base Info
- Trademark：TrillionShine
- Origin：China
- HS Code：846592
Description
Basic Info.
Trademark TrillionShine Origin China HS Code 846592Product Description

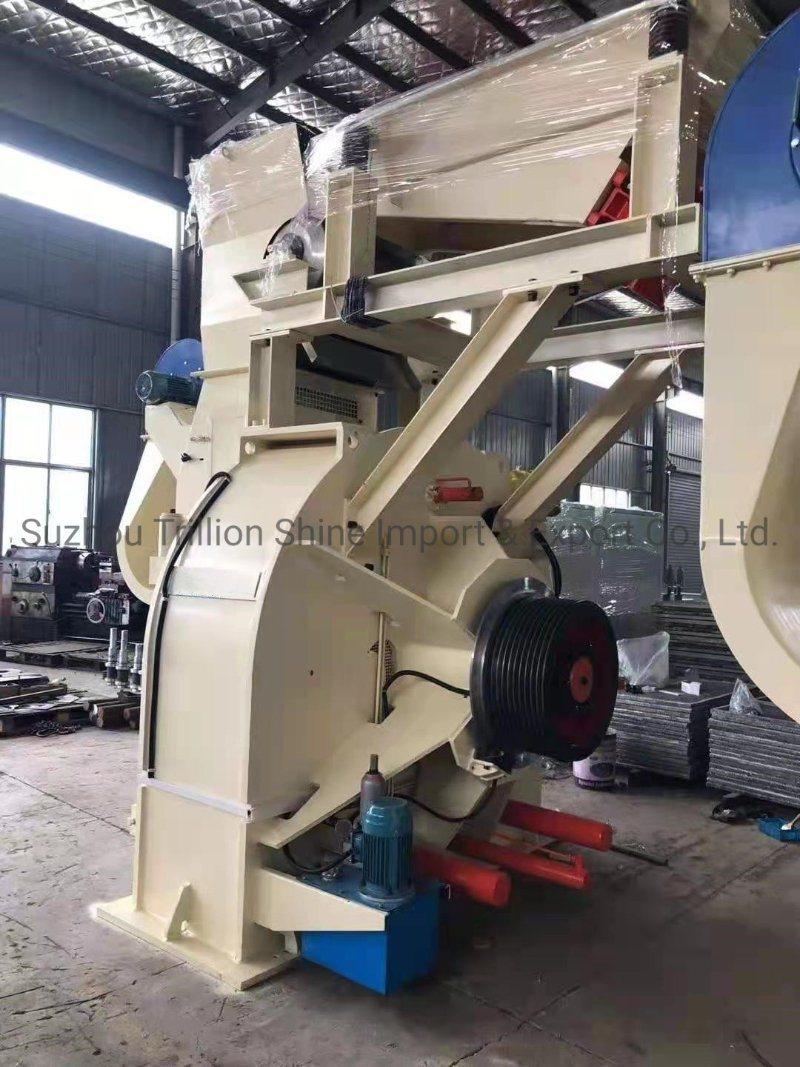

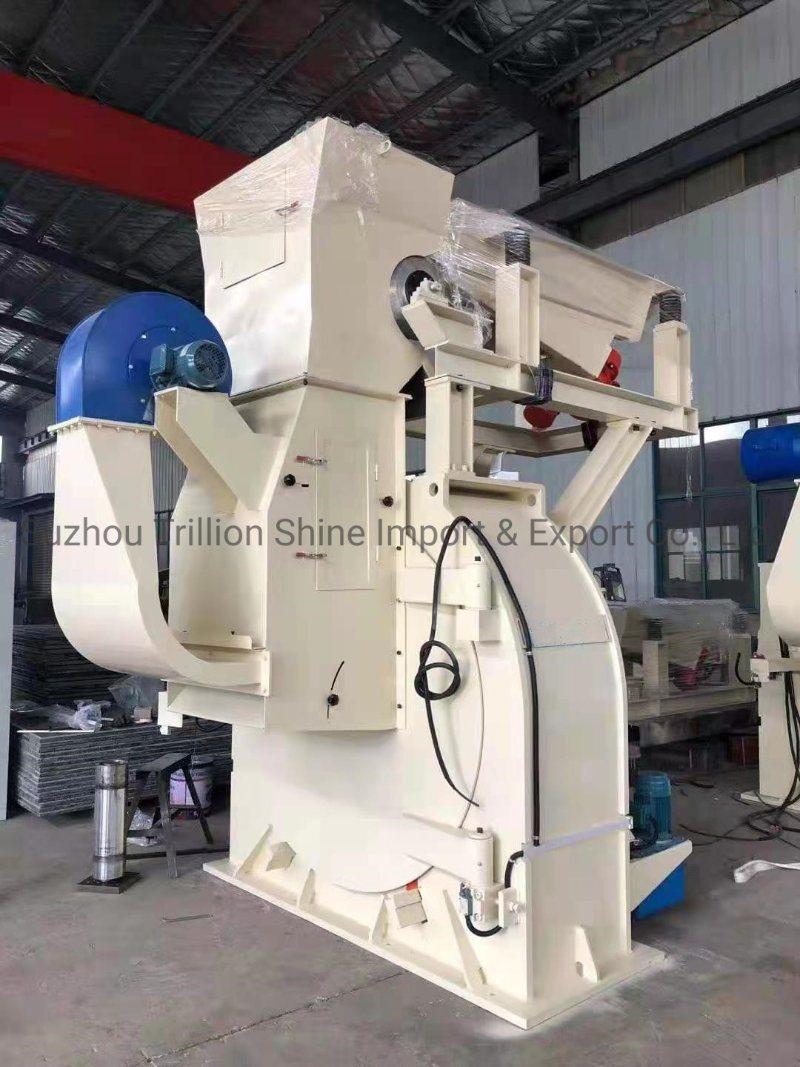

Product DescriptionKnife-ring flaker is mainly used to produce the qualified flakes for PB production line. The machine consists of vibrating feeder, magnetic separator system, heavy objects separator, impeller, knife-ring, housing, main shaft and control system. During running, chips after removing ferrous and non-ferrous impurities go into the cutting chamber to be cut into flakes at a high cutting speed of 60m/s. flake thickness is controlled by the spread of knives through reducing which, the machine can produce uniform flakes for PB production line
Technical specification
| Model | BX468 | BX4612 | BX4612/5 | BX4614/4 | BX4614/5 |
| Diameter of knife ring(mm) | 800 | 1200 | 1200 | 1400 | 1400 |
| Qty of knives (PCS.) | 28 | 42 | 50 | 60 | 66 |
| Knife length(mm) | 300 | 375 | 463 | 463 | 449 |
| Rotation speed of knife-ring(r/min) | 50 | 50 | 50 | 50 | 50 |
| Rotation speed of impeller(r/min) | 1450 | 935 | 1090 | 820 | 850 |
| Flakes thickness (mm) | 0.4-0.7 | 0.4-0.7 | 0.3-0.8 | 0.3-0.8 | 0.6-1.2 |
| Main motor power(kw) | 132 | 200 | 250 | 250 | 315 |
| Productivity(kg/h) | 1500-3000 | 2500-4000 | 4000-6000 | 5000-8000 | 8000-11000 |
| Weight(kg) | 5800 | 8500 | 9000 | 9600 | 11000 |
| Overall dimension (mm) | 3132*2512* 2380 | 3443*2753* 2840 | 3615*2595* 3000 | 2340*3360* 3430 | 4200*3200* 2930 |
