• Model NO.：R7
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Working Pressure：0.7MPa
• Total Power：10.23kw
• Shipping Port：Qingdao
• Transport Package：Wooden Box
• Specification：3600*900*1500mm
• Trademark：QDZD
• Origin：China
• HS Code：84659900
• Production Capacity：100sets,Month

Basic Info.

Model NO. R7 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Working Pressure 0.7MPa Total Power 10.23kw Shipping Port Qingdao Transport Package Wooden Box Specification 3600*900*1500mm Trademark QDZD Origin China HS Code 84659900 Production Capacity 100sets/Month

Product Description

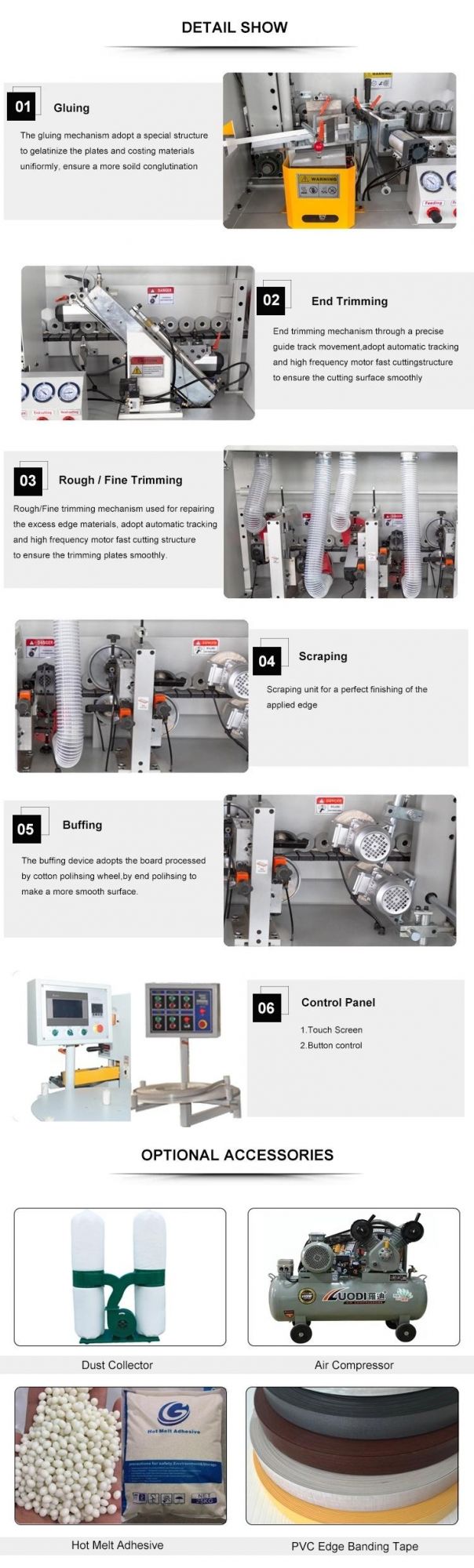

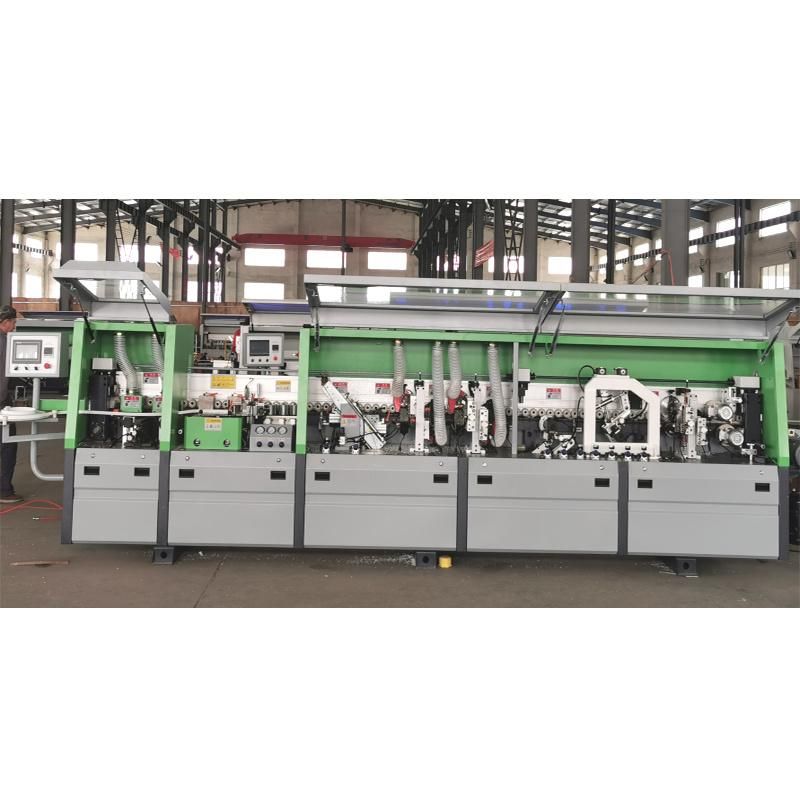

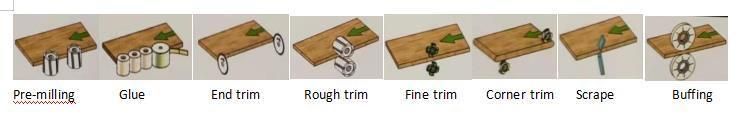

Full Automatic Edge Banding Machine 8 functions, pre-milling and corner trim

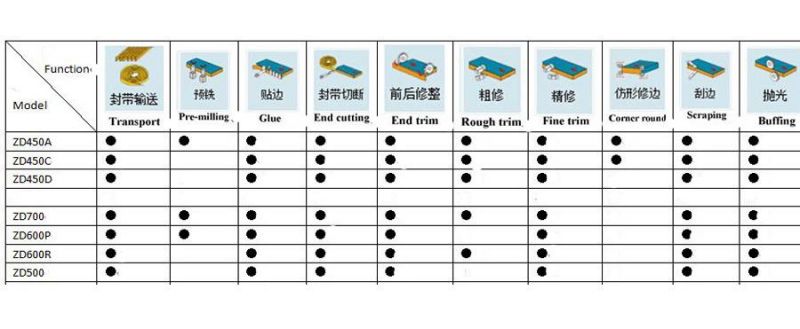

Different Model with different function




Technical Parameters

Working pressure	Total power	Feeding speed	Panel thickness	Panel length	Panel width	Edge thickness	Overall size
0.7MPa	10.23kw	13m/min	10-60mm	Min. 100mm	Min. 50mm	0.4-3mm	6000*900*1500mm

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.



The Workshop


 Feature:








Customer Visiting:



Our Certificate:


The package:
