• Model NO.：LT-1325
• Table Type：Vacuum Table with T-Slot
• Spindle Power：Hqd 9.0kw Air Cooling Spindle
• Motor and Driver：Import Yaskawa 850W Servo Motor
• Transmission：X, Y Axis by Gear Rack, Z Axis by Ball Screw
• Guide Rail：Hiwin Linear Square Guide Rail
• Inverter：Delta Invert
• Control System：Taiwan Syntec 6mA Control System
• Software：Artcam,Type3
• Other：Dust Collector
• Oil Lubrication System：Yes
• Tool Sensor：Yes
• Transport Package：Plywood Case with Water-Proof Material
• Specification：3300x1950x1950mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Basic Info.

Model NO. LT-1325 Table Type Vacuum Table with T-Slot Spindle Power Hqd 9.0kw Air Cooling Spindle Motor and Driver Import Yaskawa 850W Servo Motor Transmission X, Y Axis by Gear Rack, Z Axis by Ball Screw Guide Rail Hiwin Linear Square Guide Rail Inverter Delta Invert Control System Taiwan Syntec 6mA Control System Software Artcam/Type3 Other Dust Collector Oil Lubrication System Yes Tool Sensor Yes Transport Package Plywood Case with Water-Proof Material Specification 3300x1950x1950mm Trademark LINTCNC Origin China HS Code 8465990000 Production Capacity 300 Pieces/Year

Product Description

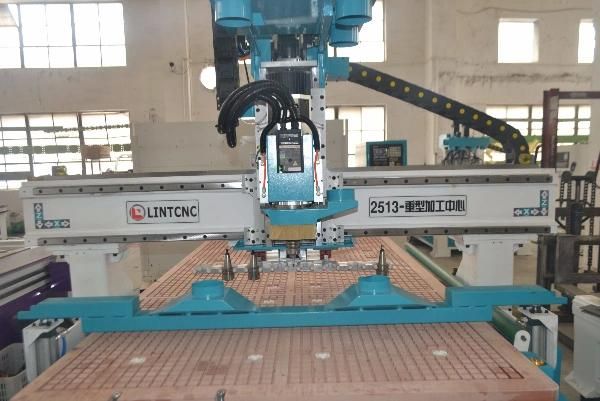

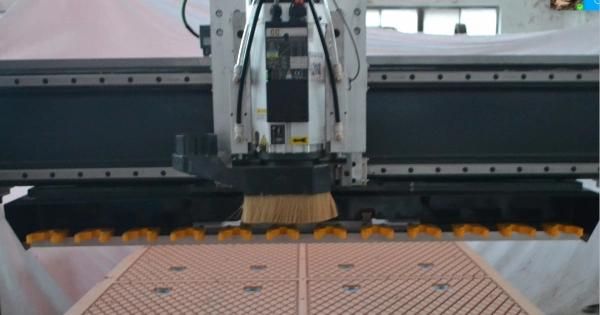

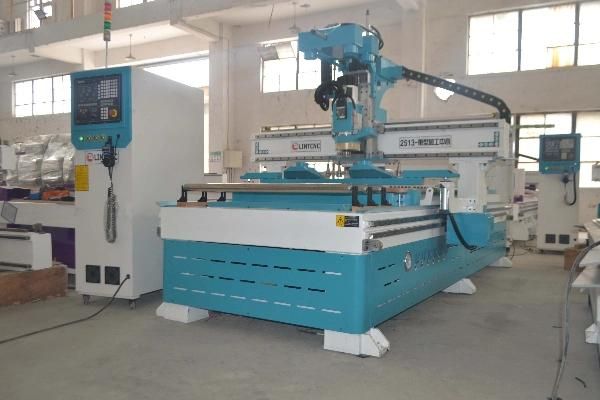

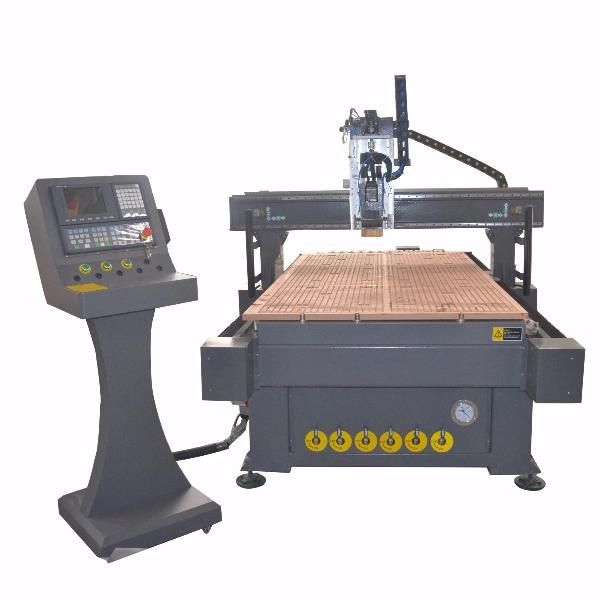

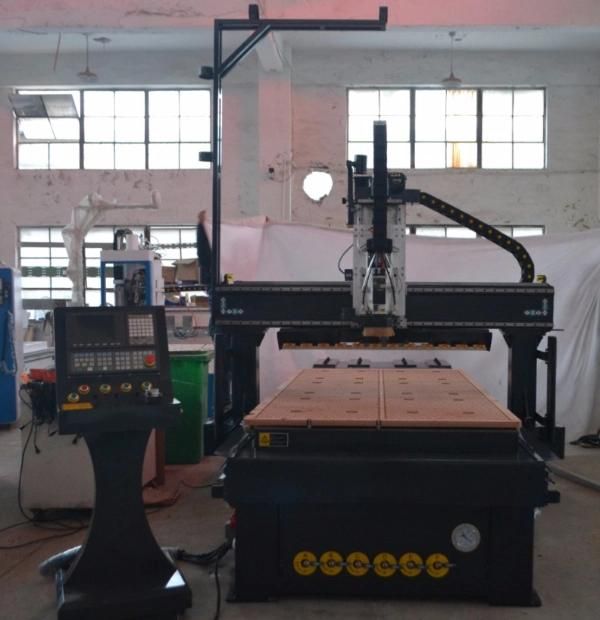

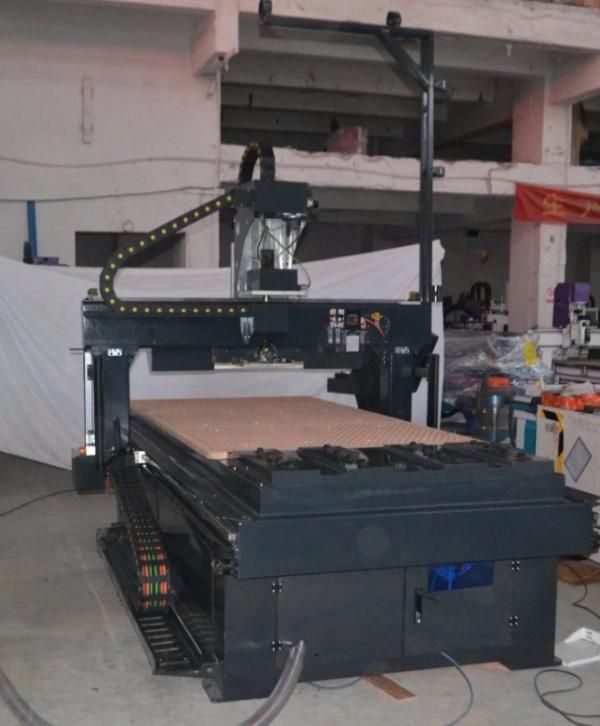

HSD ATC spindle 1325 cnc router cutting and engraving machine for woodworking

Standard ATC LT-1325 Machine details:

1). Working area: 1300*2500*200mm;

2). Vacuum table with vacuum pump

3). Guide rail: Hiwin linear square guide rail;

4). Driving method: X,Y axis by helicia gear rack, Z axis by TBI ball screw;

5). Spindle: HQD 9.0kw water cooling spindle;

6). Motors and drivers: Import Yaskawa 850w Servo motor ;

7). Control system: Taiwan Syntec control system;

8). Dust collector;

9). Tool box;

10). Tool sensor;

Optional:

Rotary axis(engraver round wood): 80mm, 100mm and 150mm diameter.

Any other optional items, please let me know.

Parameter

Model No.	LT-1325 Wood CNC Router
Table Size	1300mm*2500mm
Max. feeding height of Z axis	200mm
Table Structure	Vacuum table with vacuum pump
Machine body	welded steel tube, cast iron vertical shafts and steel gantry
X Y Z axis Transmission	X,Y axis by helical gear rack, Z axis by TBI ball screw
X Y Z Guide rail	Hiwin square guide rail
Spindle Power	HQD 9.0kw water cooling spindle
Max.Spindle Speed	24000 rpm/min
Max. Traveling Speed	25000mm/min
Max. Working Speed	12000mm/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Yaskawa 850w servo motor
Command Language	HPGL, G Code
Control System	Taiwan Syntec control system
Working Voltage	AC110/220V, 50/60HZ
Net Weight/Gross Weight	1400KGS
Package Dimension	3300*1950*1950mm

Samples:
-- Panel furniture, wardrobes, cabinets, office furniture, custom furniture. PVC, acrylic cutting.
-- Punching vertical holes, open slot, cut material, one step to complete. Zero-second tool change. Professionally used in the furniture industry.




Company Information
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, laser cutting machine.

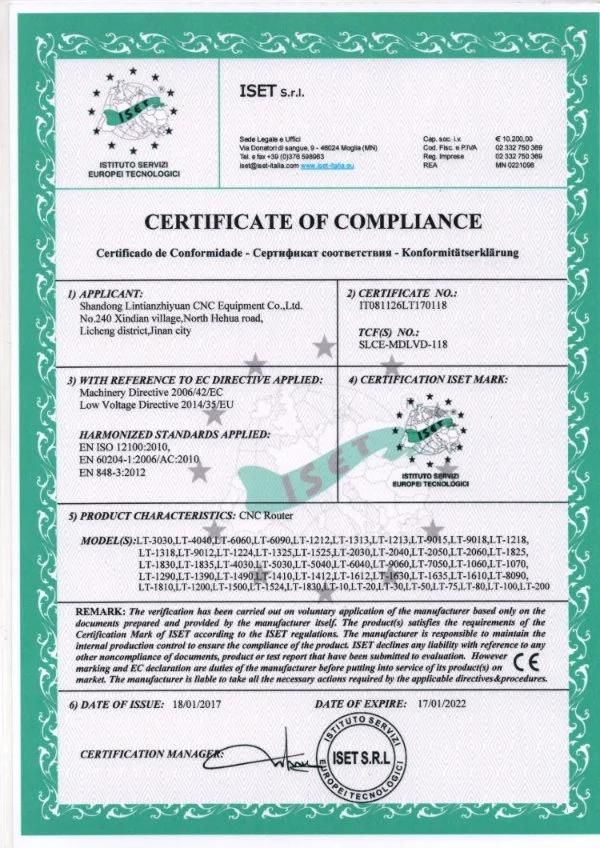

All our stone CNC router, wood CNC router, laser engraver, plasma cutting machine, cutting plotter, advertising CNC router has received certification by CE and ISO9001. Our the company owns more than 100 manufacturing workers and technicians, sales outlets cross-20 provinces and municipalities, and a host of existing agencies over16 countries and regions, with the products exported to 70 countries and regions like the United States, Germany, Britain, Canada, Australia, Russia, Southeast Asia, and etc.

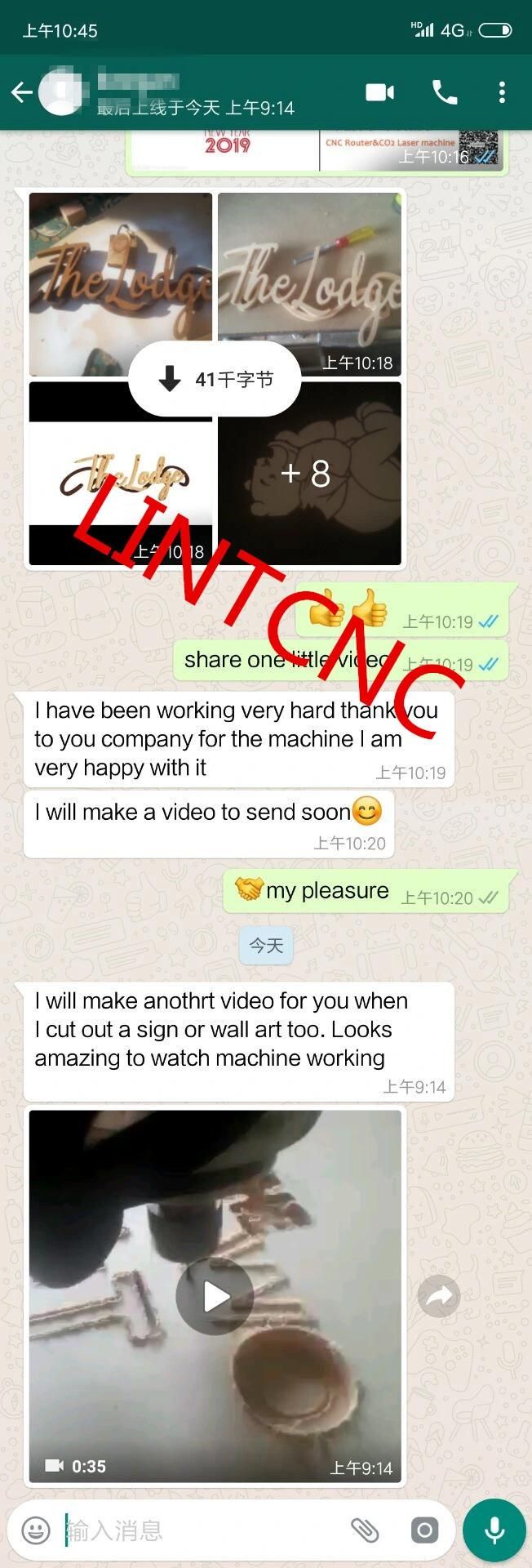

Warranty and Good Feedback:
1.Offering the specification for the machine,2 years warranty.
2.English software,user manual and operation video.
3.24 hours technical support by e-mail,calling,if you have any problems,we will within 12 hours to solve it.
4. During the warranty period,if any part is broken,we will provide for free.
5.Support engineer come to your country for training.
6.15 working days to produce the machine,in the meanwhile,we will report the production process in time.
