Home > Product > Woodworking Engraving Machine

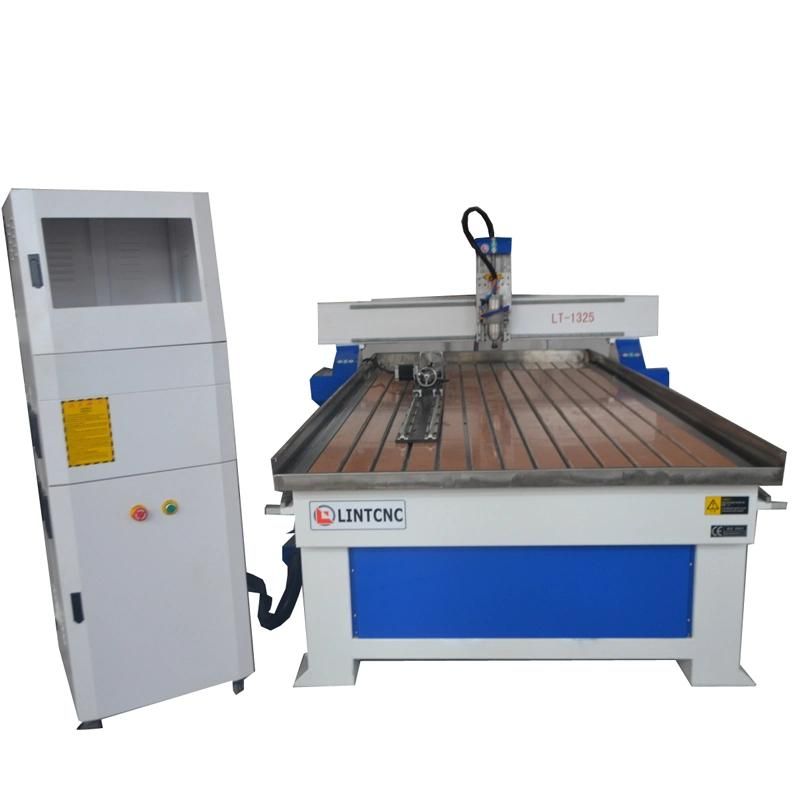

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Shandong Lintianzhiyuan CNC Equipment Co., Ltd.

Condition：New
Certification：ISO, CE
CNC or Not：CNC
Voltage：220V
Working Area：1300*2500mm
Working Table：Aluminum T-Slot Atbel with PVC;Water Tank

Base Info

Model NO.：LT-1325
Spindle：Water Cooled Spindle
Spindle Power：3kw
Control System：Ncstudio
Guide Rail：Hiwin Linear Square Guide Rail
Transmission：X,Y by Gear Rack,Z by Ball Screw
Spindle Rotating Speed：0-24000rpm
Inverter：Fuling Inverter
Software：Artcam
Motor：Stepper Motor
Driver：Leadshine Driver
Transport Package：3300*1950*1950mm
Specification：12.548
Trademark：LINTCNC
Origin：China
HS Code：8465990000
Production Capacity：500sets,Year

Description

Working area1300*2500mmTable styleAluminum T-slot table with pvc;Machine structureWelded steel tube,cast iron vertical shafts and steel gantrySpindle3.0kw water cooling spindleSpindle rotating speed0-24000rpmCollect sizeER20Guide railHiwin square guide railDriving methodX,Y axis by helical gear rack,Z axis by TBI ball screwMotors and driversStepper motor450B,Leadshine drivers MA860HControl systemNcstudio control systemInvert Fuling invertMax.idling speed25m/minMax.working speed12m/minWorking accuracy<0.05/300mmInstruction formateG cose*u00*mmg*pltWorking voltageAC220V,1 phase,50-60HzCompatible softwareType3/CastmateControl cabinetIndependentOtherTool sensor,oiling system,water pump,tool box etc.

Options:

1,4.5kw water cooling spindle;

2,Mach3 USB control system/DSP controller;

3,Rotary axis: 80mm//100mm//150mm//200mm//250mm//300mm;

4,Dust collector;

5,Vacuum table with 5.5kw vacuum pump
Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

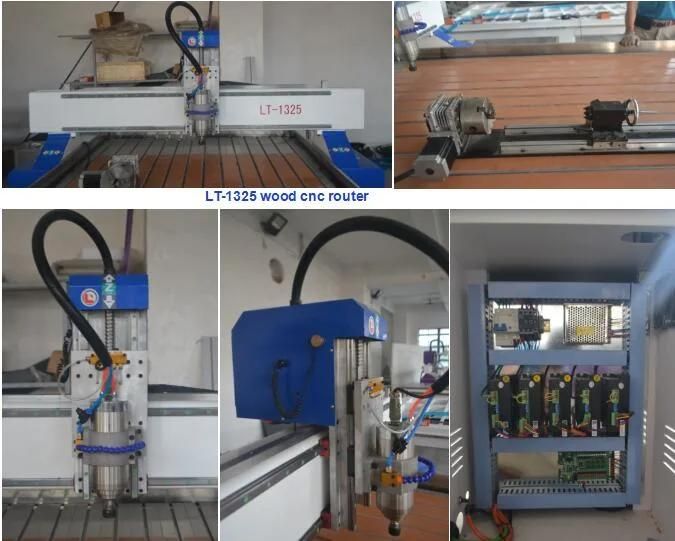

Machine parts

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

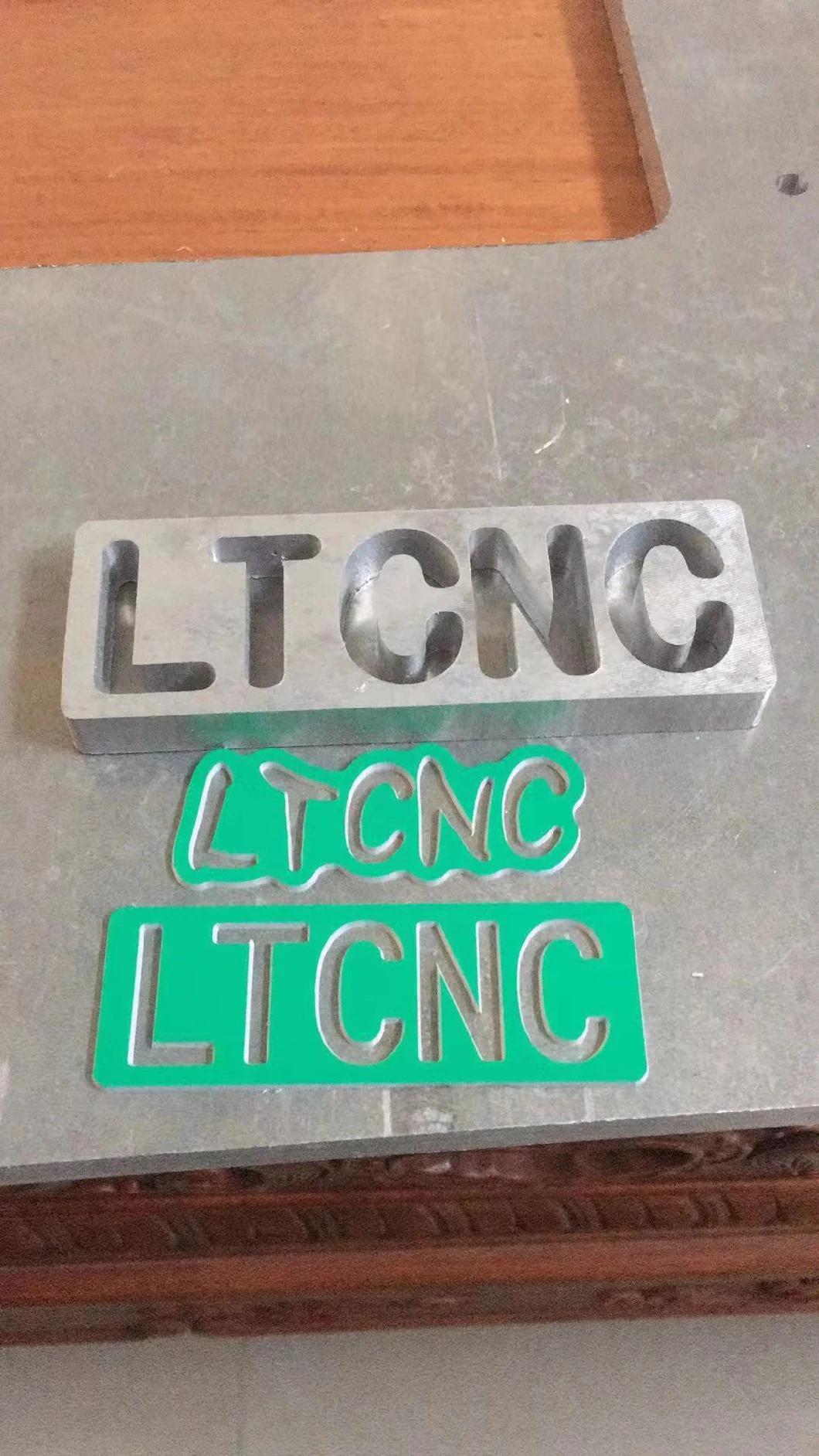

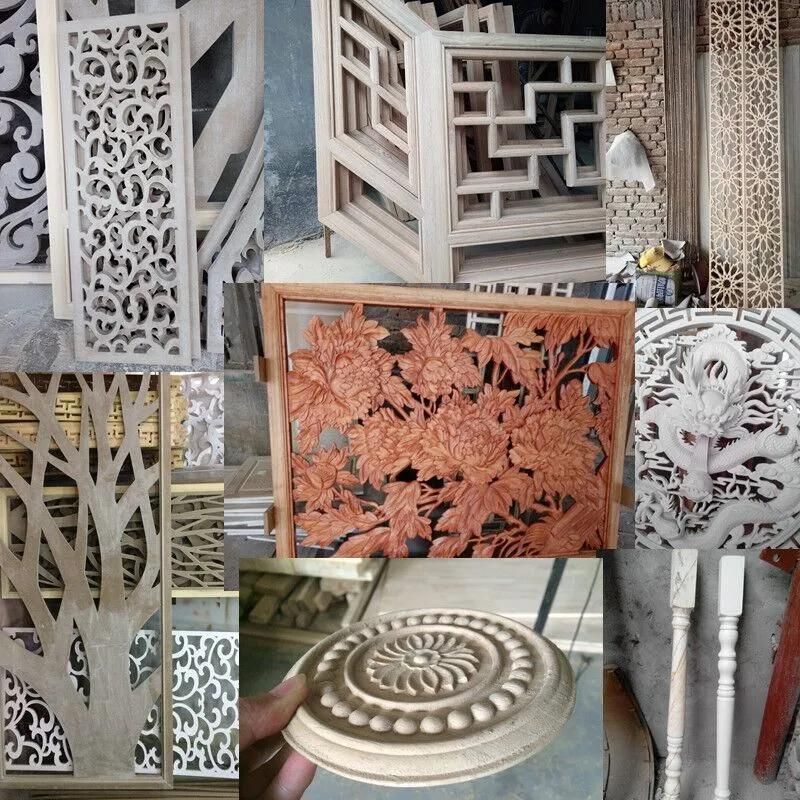

Samples

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Packaging & Shipping
Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Company Information

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Contact information
Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System

Metal Cutting Engraving Machine CNC Wood Router 1325 1515 with Water Cooling System
