Precision Woodworking Machinery Sliding Table Saw Wood Cutting Band Saw MachineQingdao Zhongding Machinery Co., Ltd.
- Type：Table Panel Saw
- Power Type：Electric
- Controlling Mode：CNC
- Automatic Grade：Semiautomatic
- Model NO.：MJ6132TZ
- Certification：CE, ISO
- Transport Package：Plywood Box
- HS Code：84659100
- Production Capacity：500sets
Basic Info.Model NO. MJ6132TZ Certification CE, ISO Customized Customized Condition New Color Customized Transport Package Plywood Box Specification 2.8CBM Trademark QDZD Origin China HS Code 84659100 Production Capacity 500sets

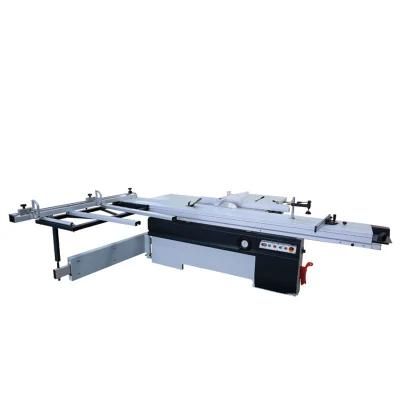

Product DescriptionPrecision Woodworking Machinery Sliding Table Saw Wood Cutting Band Saw Machine
|Dimension of sliding table||3200x360 mm|
|Gross cut capacity||3200 mm|
|Width of cut between saw blade and rip fence||1250 mm|
|Tilting saw group||0-45°|
|Diameter of main saw blade||300 mm|
|Max cutting height (90°)||80 mm|
|Speed of main saw spindle||4000/6000 r.p.m|
|Main saw motor power||5.5 kw|
|Main spindle diameter||30 mm|
|Diameter of scoring saw blade||120 mm|
|Speed of scoring saw spindle||8000 r.p.m|
|Scoring saw motor power||1.1 kw|
|Scoring saw spindle diameter||20 mm|
|Overall dimension||3250x3150x900 mm|

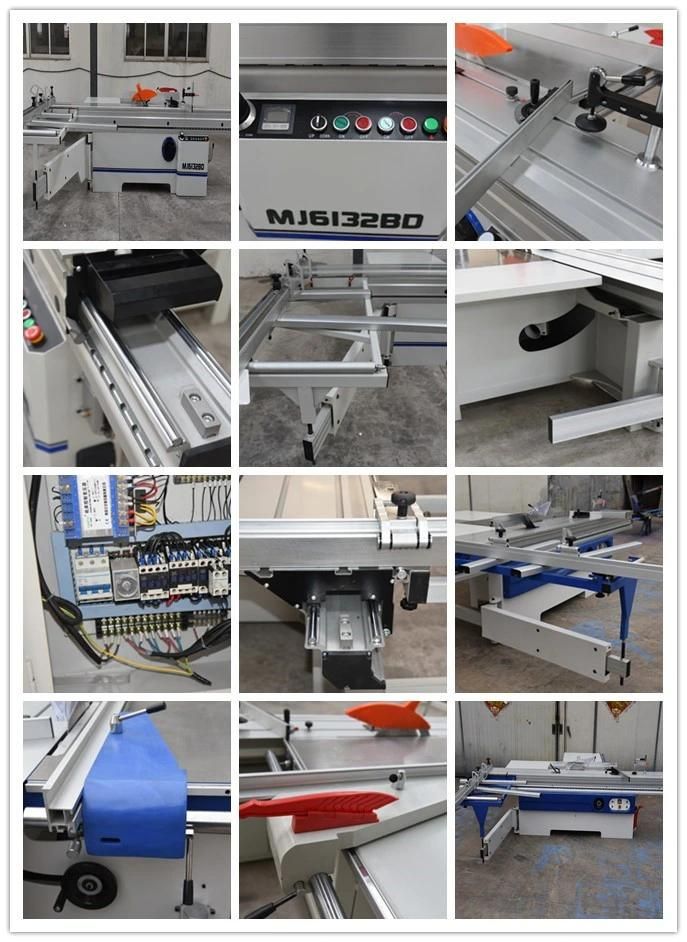

- It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.
- Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display.
- Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
- The electric saddle: Five- positioning of high precision drive systems without regular maintenance is like a built-in motor protected by aluminum profile. There is emergency power-off function and then excluded squeezed danger.
- Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9000 Certificate

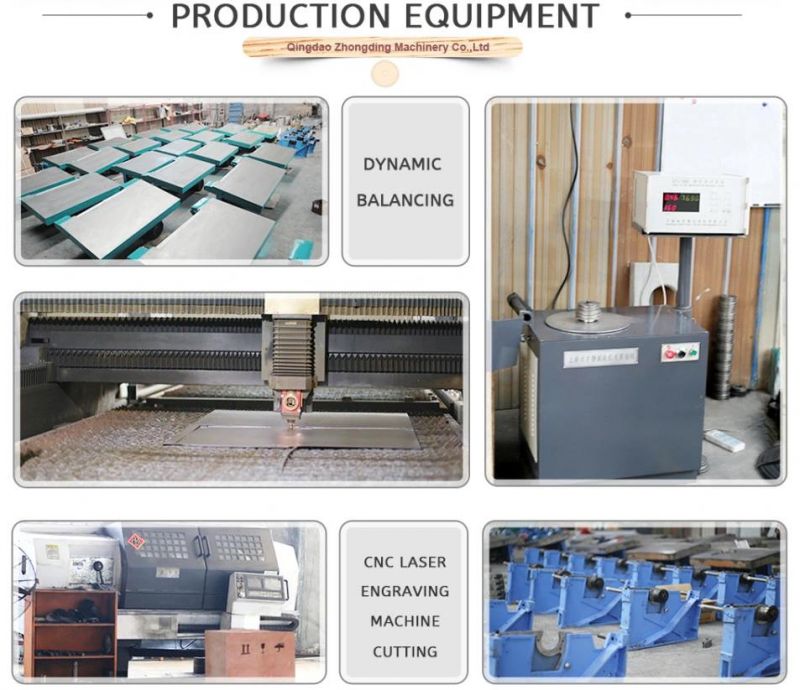

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
