• Model NO.：MY2600
• Name：Clamp Carrier
• Model：My2600
• Rated Power：2.2kw
• Max Working Length：2500mm
• Max Working Width：1250mm
• Max Working Thickness：80mm
• Weight：6200kg
• Clamp Quantity：8PCS
• Type：Hydraulic
• Use：Press Wood
• Color：as Required
• Overall Size：5500*3900*3800mm
• Certificate：CE
• Working Thickness：10-100mm
• Guide Rail：Standard
• Transport Package：Wooden Case
• Specification：3600*3200*3800mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month

Features
1.This machine adopts the principle of hydraulic pressure, the running speed is stable, the pressure is large, and the pressure is even.
2.The hydraulic system is equipped with a pressure maintaining device, continuous pressure to ensure the quality of sheet gluing.
3.Four working faces, can be used for continuous operation, improving work efficiency.
4.Using hydraulic brake positioning mechanism, and equipped with hydraulic locking and safety brackets to ensure safe and reliable operation of the equipment.
Operation Introduction
1.The board to be joined is coated with glue (the glue surface will be better on both sides)
2.Spread the plates flat on the table according to the process specifications.
3.Push the hand valve and press down the plate to fix the plate.
4.Clamp the plate with a jigsaw clip (at least 3 jigsaw clips per plate)
5.Reset the hand valve and press the beam upward to release the plate.
6.Remove the plate to be dry.
7.Repeat 1-6 steps to complete the batch puzzle work.

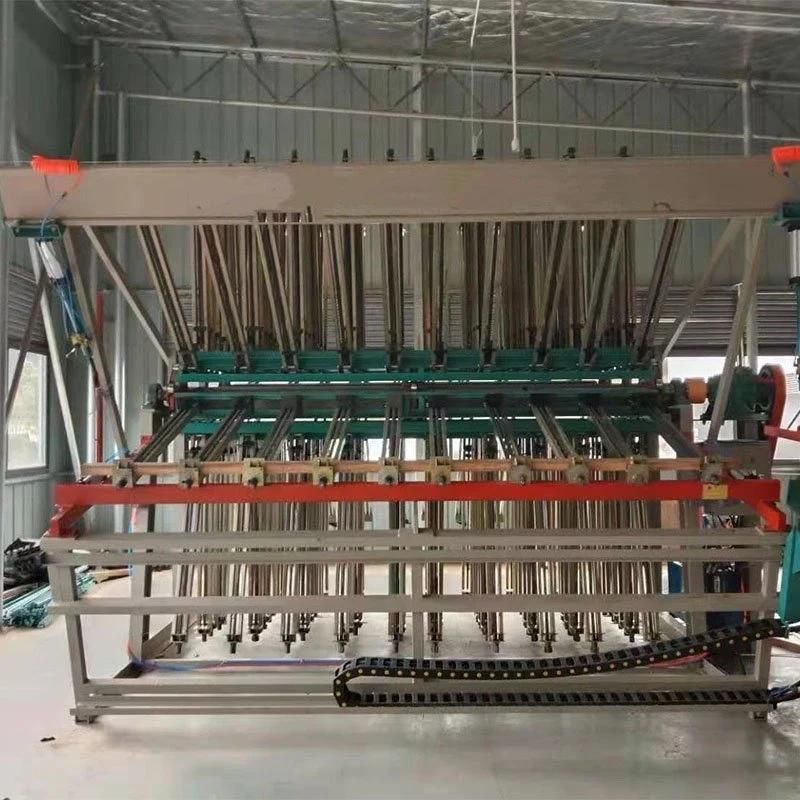

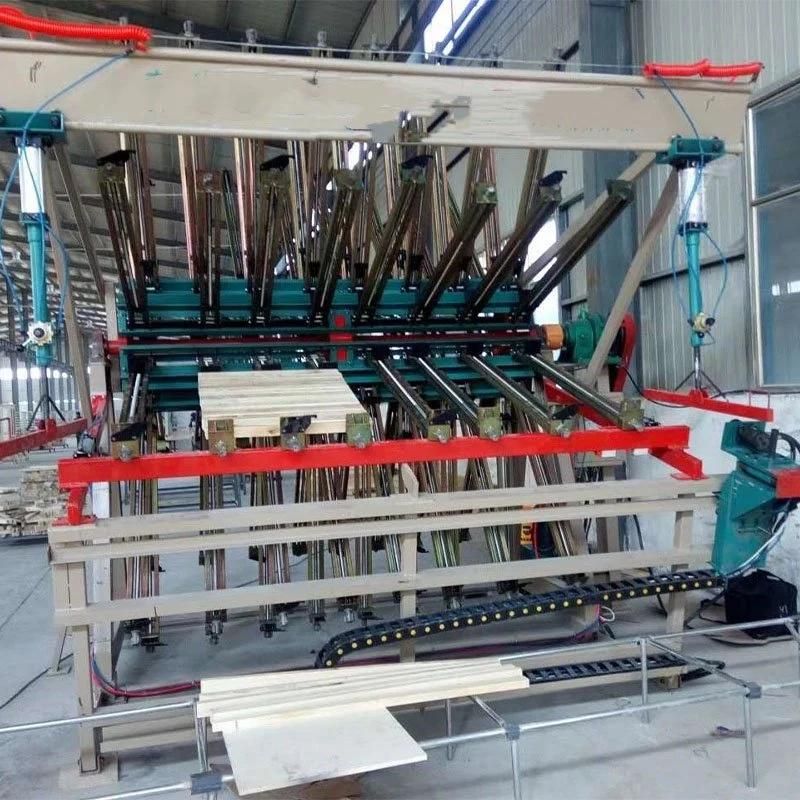

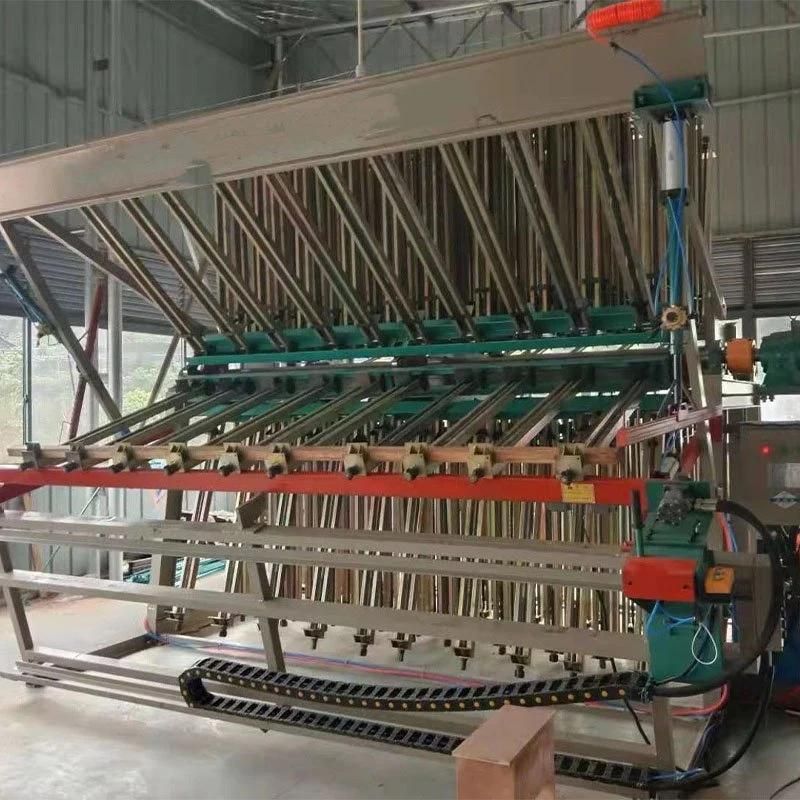

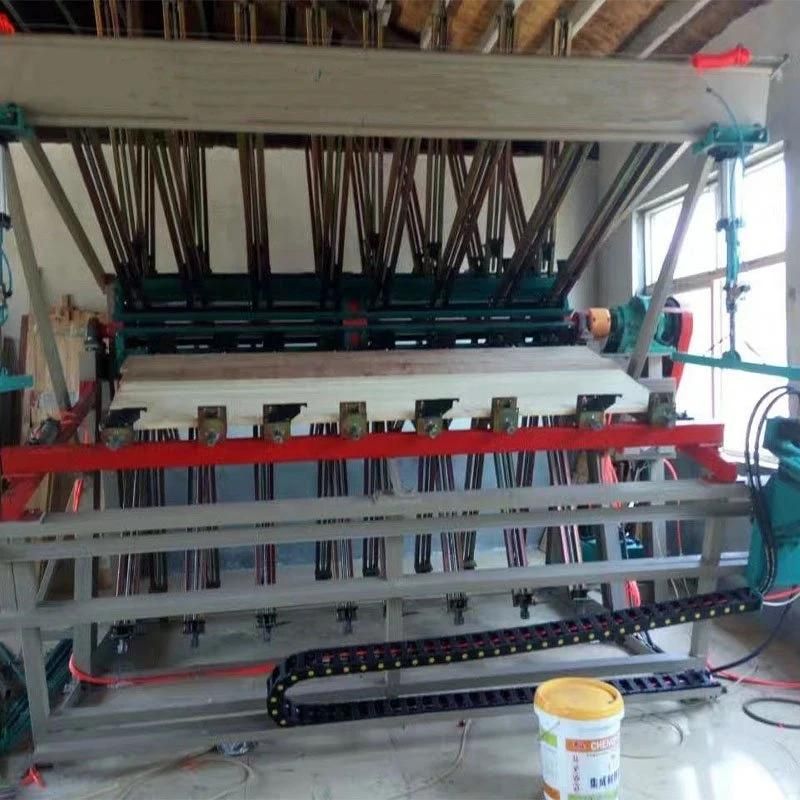

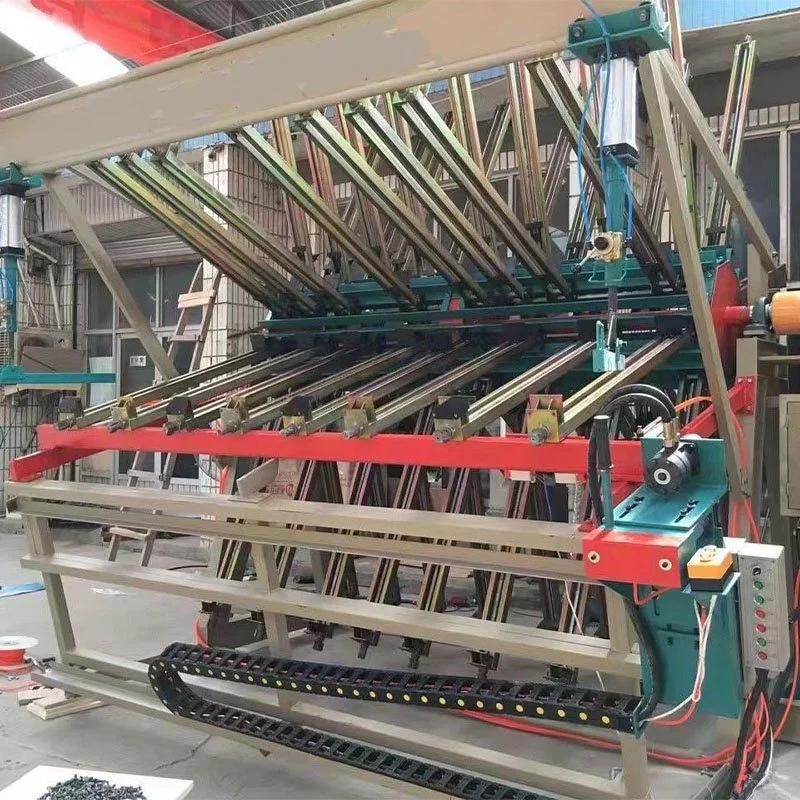

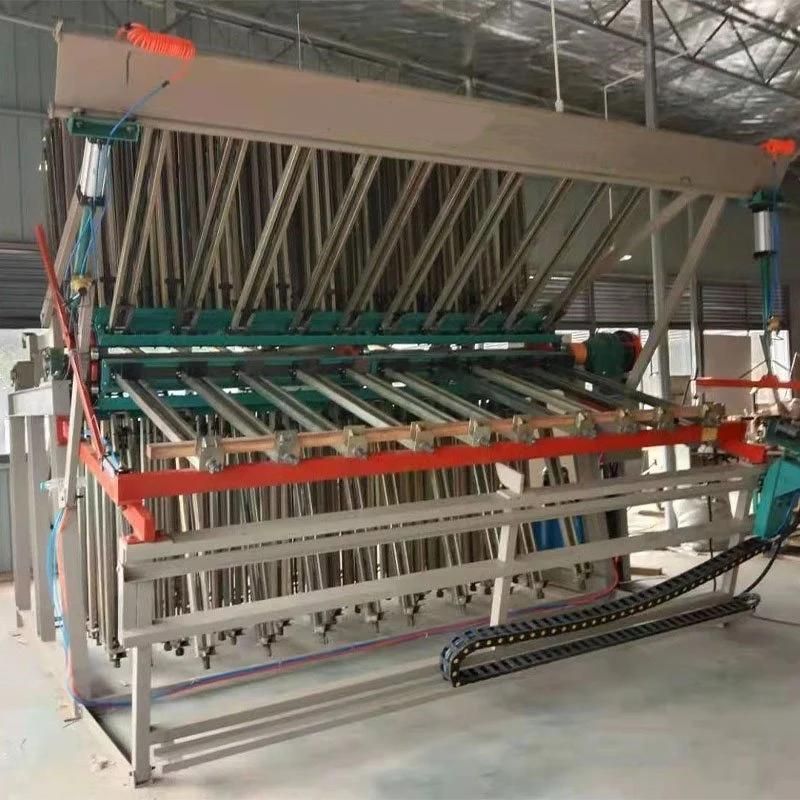

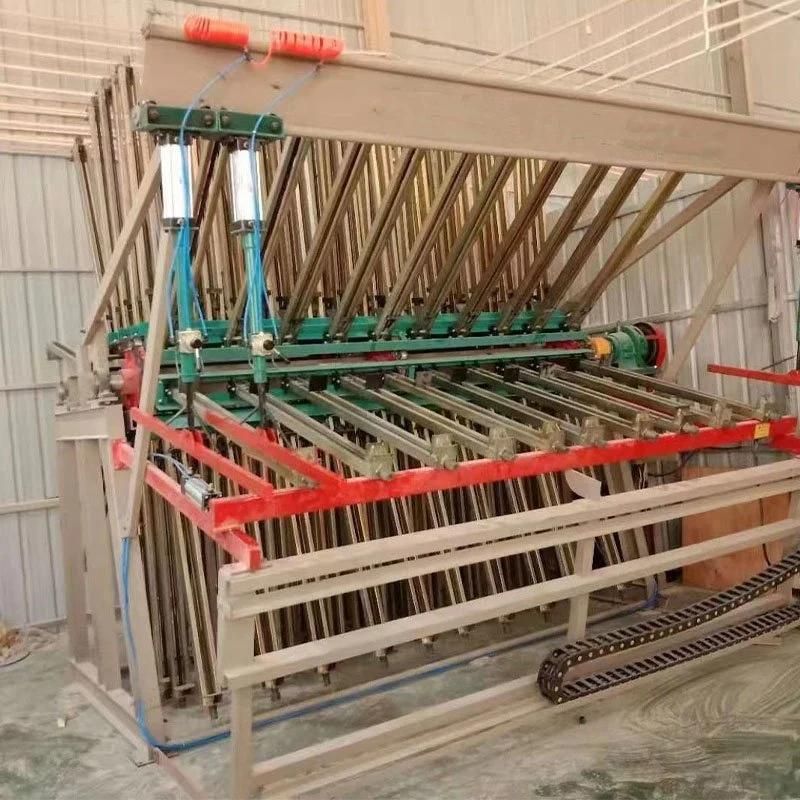

Detailed Pictures


Application
Wood composer machine is mainly used in furniture, handicrafts, cabinets, solid wood doors, special panel equipment used in sheet metal processing. and it is a kind of equipment commonly used in the production of solid wood products.
