Electric Control Slice Cutting Four Side Planer Machine Woodworking Machinery

Shandong STX Machinery Trade Co., Ltd.
  • Warranty:18 Months
  • Type:Four-Side Planer
  • Working Depth:100-200mm
  • Working Width:160mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:M616HS
  • Motor Power:>10Kw
  • Cutter Shaft:6
  • Spindle Speed:>5000rpm
  • Process Type:Heavy Processing
  • Certification:CE
  • After-sales Service:Online Service
  • Color:Standard
  • Advantage:Long Service Life
  • Application:Woodworking Factory
  • Function:Planer and Moulder
  • Extra Support:Roller Conveyor
  • Working Thickness:8-120mm
  • Max. Working Width:160mm
  • Spindle Qty.:6
  • Transport Package:Steel Pallet
  • Origin:China
  • HS Code:846592
  • Production Capacity:2000 Sets,Year

Description

  Tool diameter The 1st lower shaft

125mm

 The right vertical shaft 125-160mm The left vertical shaft 125-160mm

The 1st upper shaft

125-160mm

Right saw shaft

180-250mm

Left saw shaft

180-250mm

Saw shaft speed

4500r/min

Saw shaft diameter

50mm

 Feeding roller diamter 140mm

Vacuum tube diameter

140mm

Outside dimension L*W*H

4450*1800*1720mm

Weight3500kg




Detailed Images

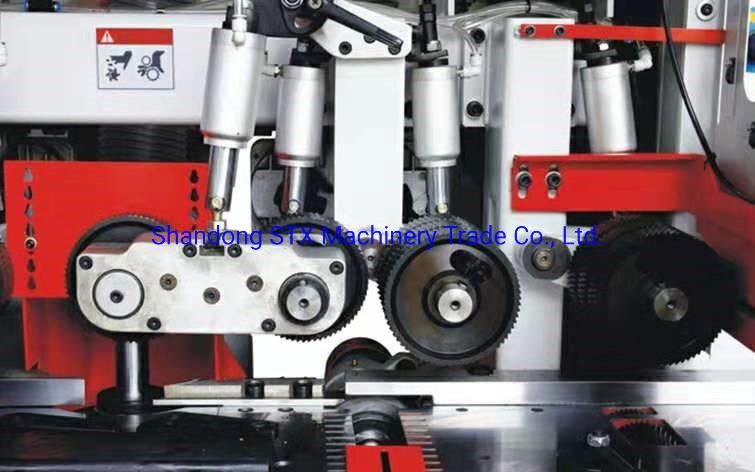

Electric Control Slice Cutting Four Side Planer Machine Woodworking MachineryRapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

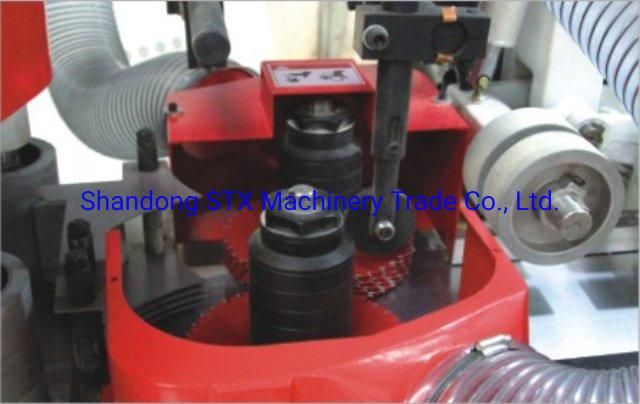

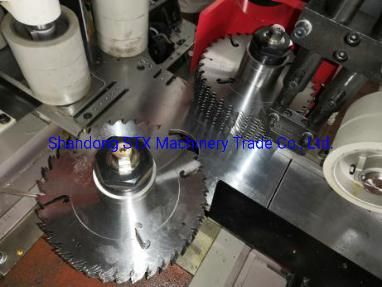

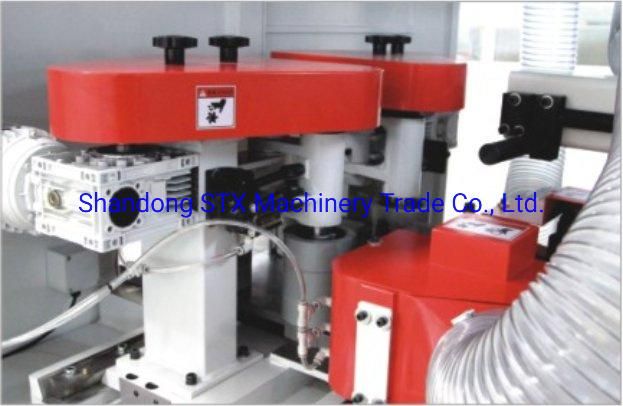

Left and right sawing front and back

The four-sided planer combined with the left and right multi-blade saw functions can use thinner saw blades for processing, the sawing path is reduced, material saving, multi-blade processing at one time, and high efficiency

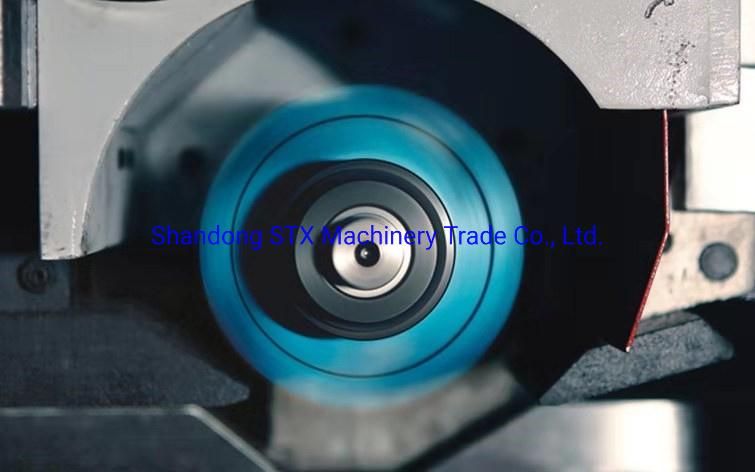

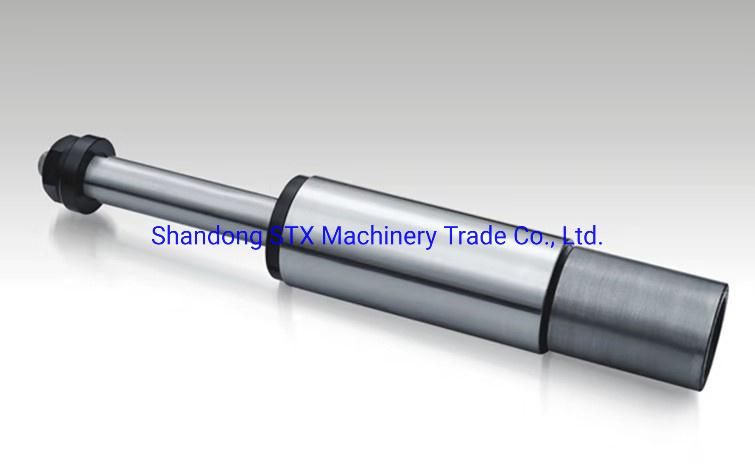

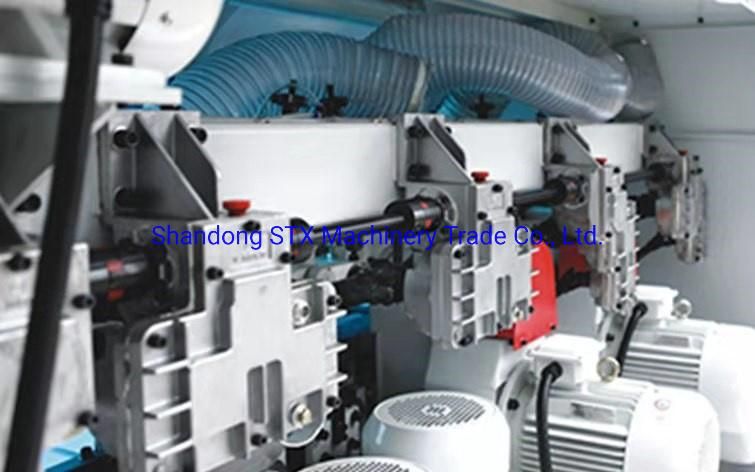

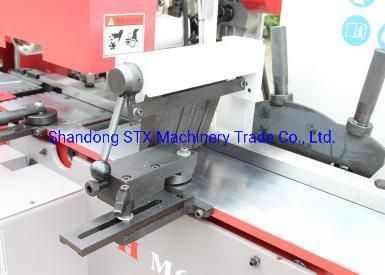

Electric Control Slice Cutting Four Side Planer Machine Woodworking MachineryElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryHeavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracyEuipped with shaft cooling and cleaning function, it can inrease the lift of saw blades and ensure the precision of cuttingElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryFour groups of action wheels guarantee smooth material outfeeding after machiningEvery spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughnessElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryDouble-deck working table on left and right spindle, guaranteed working verticalityFront and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working tableElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryElectric Control Slice Cutting Four Side Planer Machine Woodworking MachineryFeeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.Anti-return system, ensure the operator not to be damaged by returned wood chipsElectric Control Slice Cutting Four Side Planer Machine Woodworking Machinery




Processed effect





 Package & Delivery

Our ServiceAbout Us

Since  established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China
