Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working Width

Shandong STX Machinery Trade Co., Ltd.
  • Warranty：18 Months
  • Type：Four-Side Planer
  • Working Depth：100-200mm
  • Working Width：210mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：M621
  • Motor Power：＞10Kw
  • Cutter Shaft：6
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE
  • After-sales Service：Online Service
  • Color：Standard
  • Advantage：Long Service Life
  • Application：Woodworking Factory
  • Function：Planer and Moulder

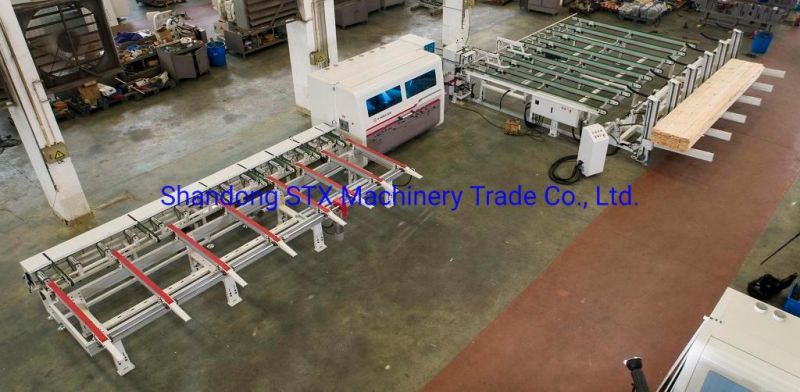

  • Extra Support：Roller Conveyor
  • Working Thickness：8-140mm
  • Max. Working Width：210mm
  • Spindle Qty.：6
  • Transport Package：Steel Pallet
  • Origin：China
  • HS Code：846592
  • Production Capacity：2000 Sets,Year

Description

Other Parameters

Feeding wheel diamter

140mm

Overall dimension

4320*1620*1850mm

Dust outlet diameter

140mm

Machine weight

3150kg






Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working Width
Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working Width

Detailed Images

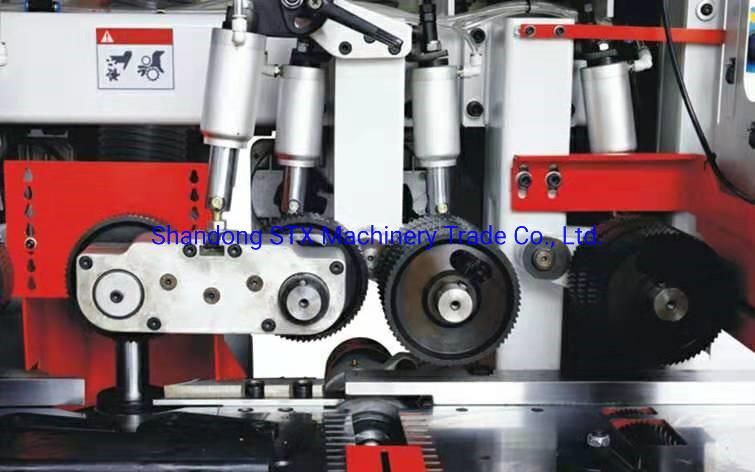

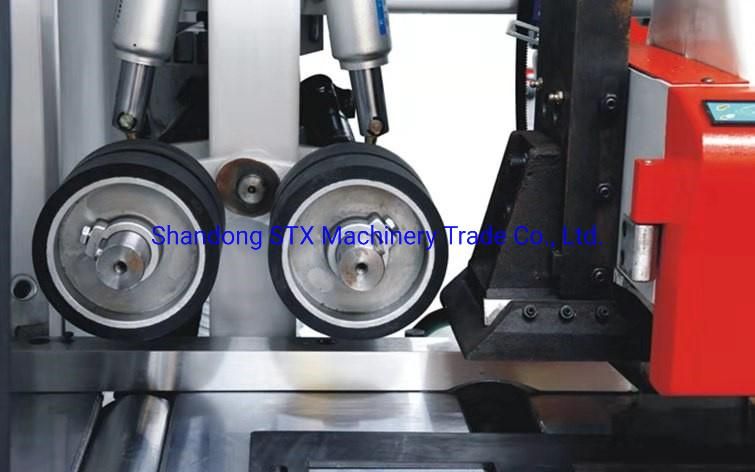

Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthRapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

Moveable working table on the last bottom spindle, Making easy working on changing cutters

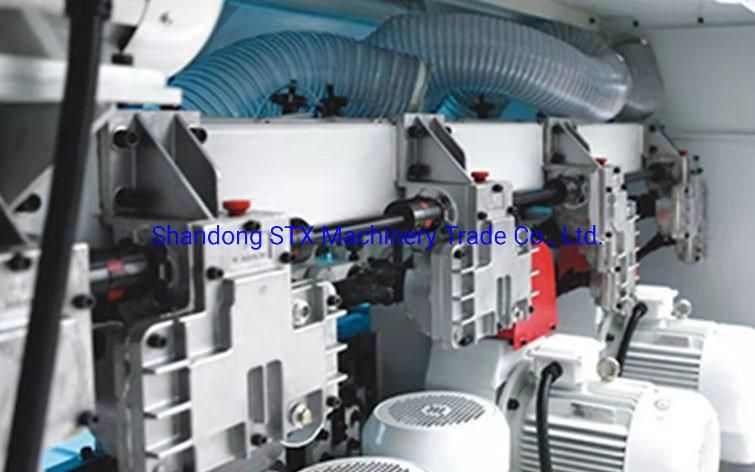

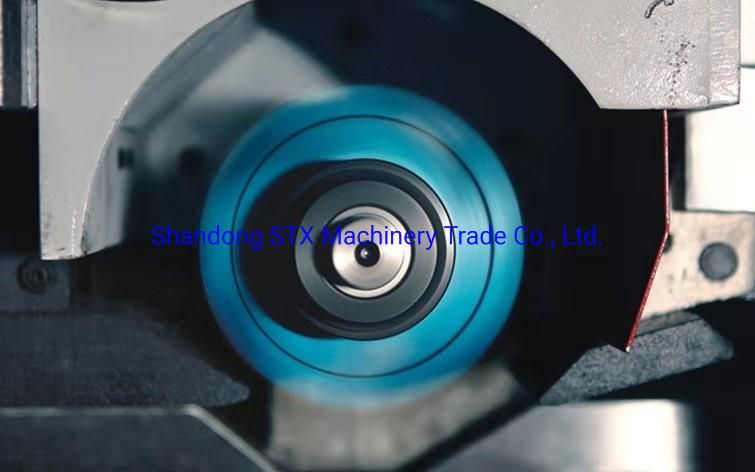

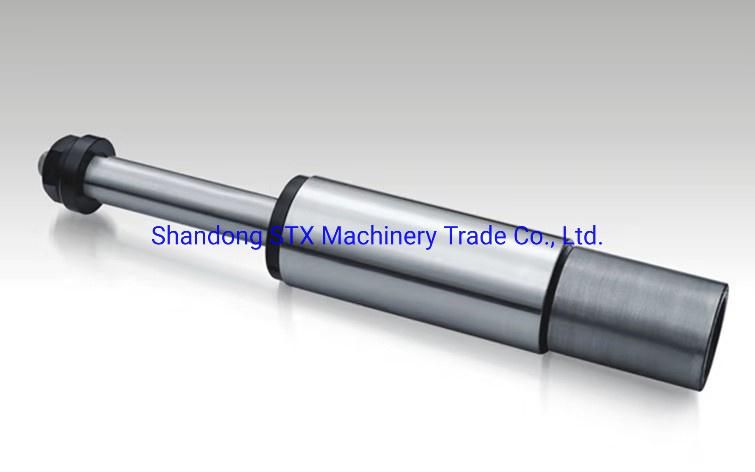

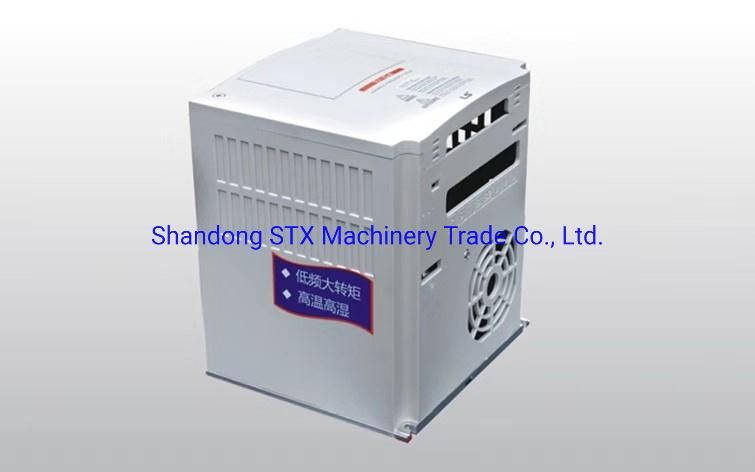

Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthWood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthHeavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracyEvery spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughnessWood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthWood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthDouble-deck working table on left and right spindle, guaranteed working verticalityFront and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working tableWood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthWood Flooring Machine High Speed 4 Side Moulder with 210mm Working WidthFeeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.


Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working Width

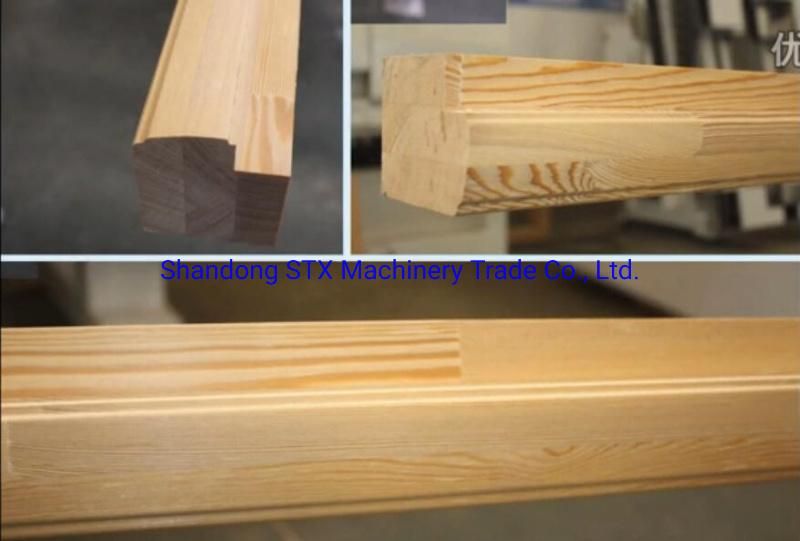

Processed effect

Wood Flooring Machine High Speed 4 Side Moulder with 210mm Working Width
