• Model NO.：FM-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm
• Xy Guide Rail：Square Rail
• Cutting Thickness：0.3-40mm
• Cutting Speed：0-8000mm,Min
• Guide：Taiwan Hiwin Linear Guide
• Control System：DSP,Nc Studio
• Transmission：Helical Rack and Pinion
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：FM
• Origin：Jinan, China
• HS Code：84659900
• Production Capacity：350,Mon

Basic Info.

Model NO. FM-1325 Customized Customized Condition New Color Customized Working Area 1300*2500mm Xy Guide Rail Square Rail Cutting Thickness 0.3-40mm Cutting Speed 0-8000mm/Min Guide Taiwan Hiwin Linear Guide Control System DSP/Nc Studio Transmission Helical Rack and Pinion Transport Package Plywood Specification CE, ISO Trademark FM Origin Jinan, China HS Code 84659900 Production Capacity 350/Mon

Product Description

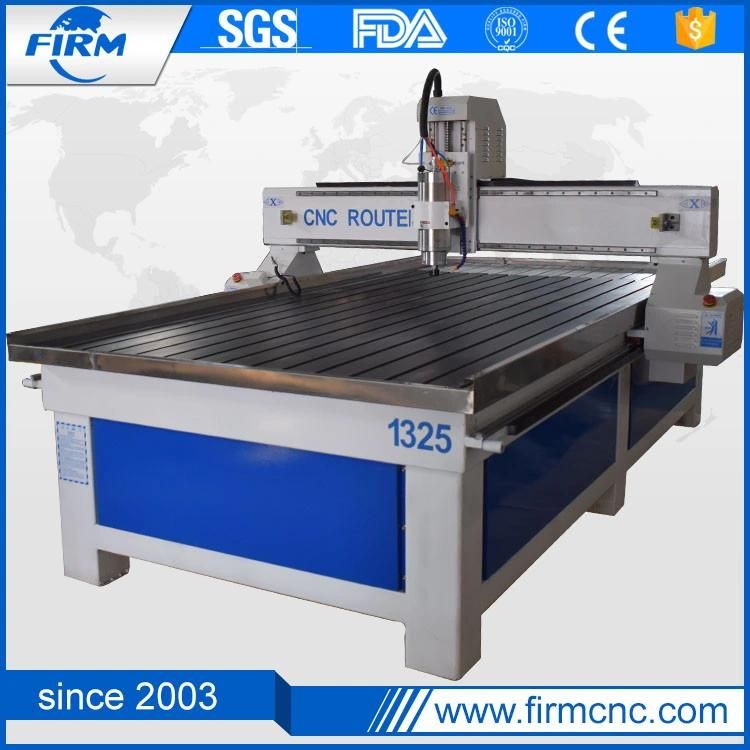

High-Speed Cutting CNC Woodworking Engraving Machinery



Main features
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.

Technical specification

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Model	FM1325
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	Vacuum table
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	TBI Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	32000mm/min
Max. Working speed	25000mm/min
Spindle power	3.0kw warter cooling spindle
Spindle speed	0-24000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	Mach3 system (Ncstudio, Syntec,DSP )
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Artcam, Type3 UcancameV9
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1200KG
Gross weight	1500KG
Optional Spare Parts	Air-cooling spindle
	Double bag dust collection,vacuum pump
	rotary

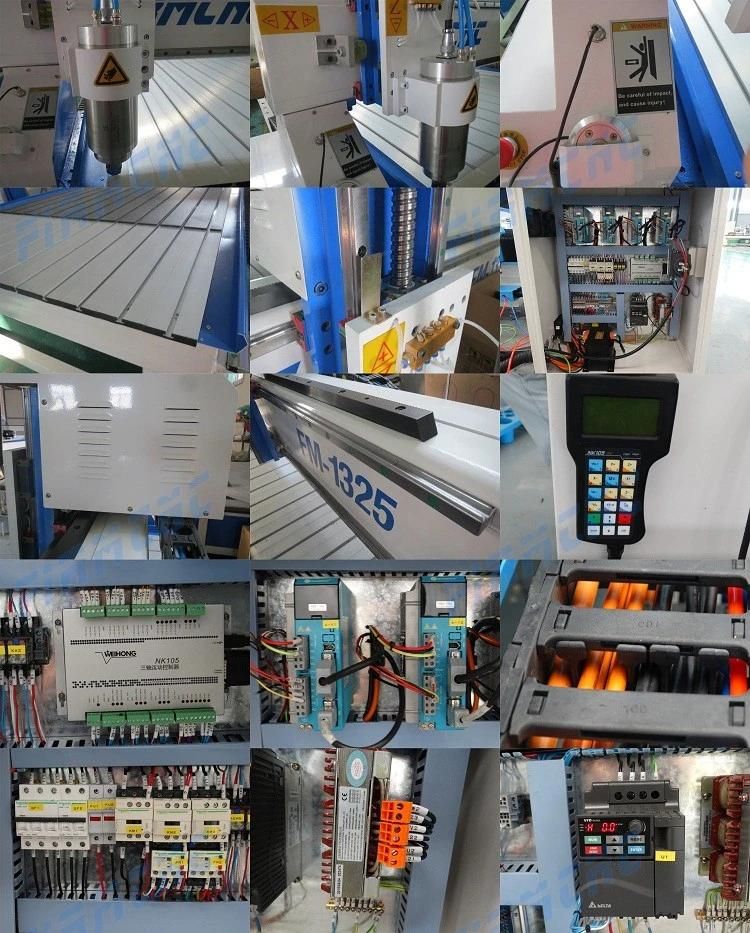

Advantage of cnc wood router
1.3.0KW Spindle, high efficiency, time saving.
2. DSP Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.
4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail
5.Stepper motor and Leadshine drivers, high positioning accuracy;good reliability;save power consumption

Application
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.
