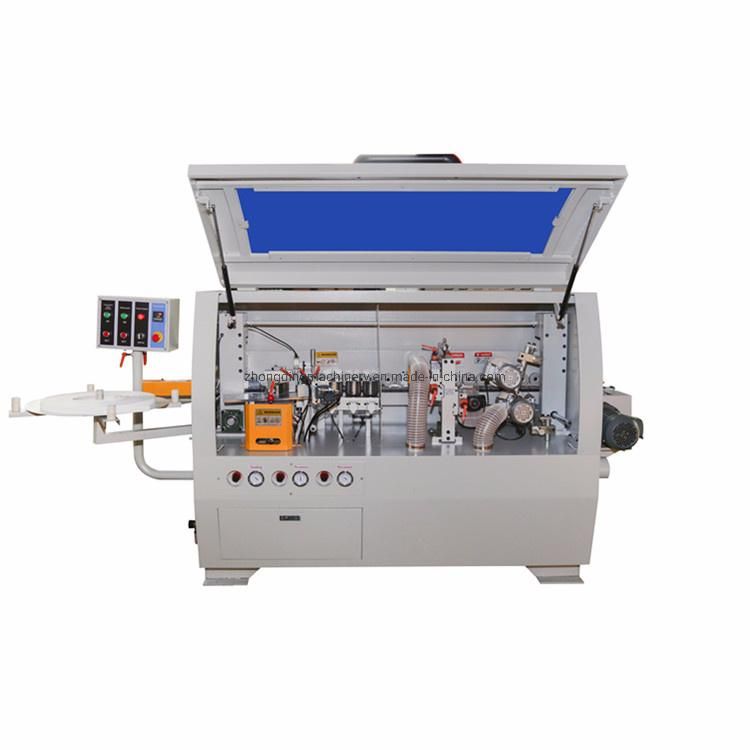

Low Price Semi Automatic Edge Banding Machine Zd300
Qingdao Zhongding Machinery Co., Ltd.- Function：Gluing, Fine Trimming, Buffing
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Semiautomatic
- Panel Feeding Speed：13m,min
- Certification：CE, ISO
Base Info
- Model NO.：ZD300
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Underneath
- Customized：Customized
- Transport Package：Plywood Case
- Specification：2470*860*1520mm
- Trademark：ZD
- Origin：China
- HS Code：84659400
- Production Capacity：2 Sets,Week
Description
Basic Info.
Model NO. ZD300 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Plywood Case Specification 2470*860*1520mm Trademark ZD Origin China HS Code 84659400 Production Capacity 2 Sets/WeekProduct Description
Low Price Semi Automatic Edge Banding Machine ZD300
Technical Specifications:
| Model | ZD300 |
| Banding tape thickness | 0.4-3mm |
| Banding tape width | 10-60mm |
| Workpiece thickness | 10-60mm |
| Workpiece length | >=100mm |
| Heating power | 0.75kw |
| Feeding motor power | 0.75kw |
| Glue spreading motor power | 0.37kw |
| Fine trimming motor power | 0.75kw*2 |
| Polishing motor power | 0.18kw*2 |
| Feeding speed | 13m/min |
| Air pressure | 0.7Mpa |
| Overall dimension | 2470*860*1520mm |

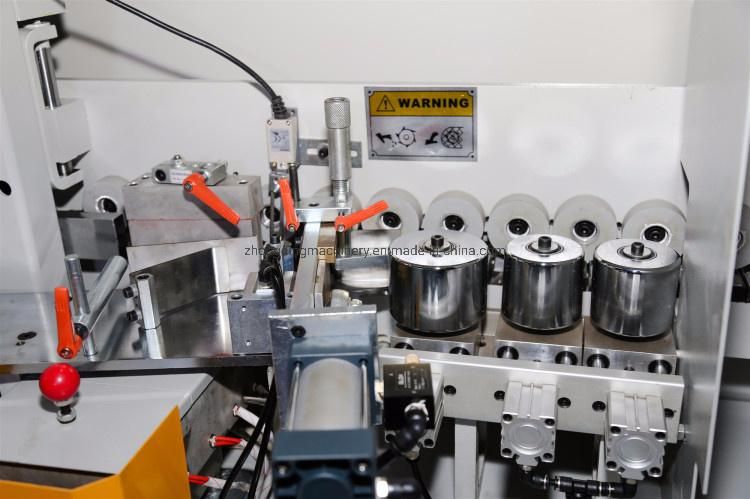

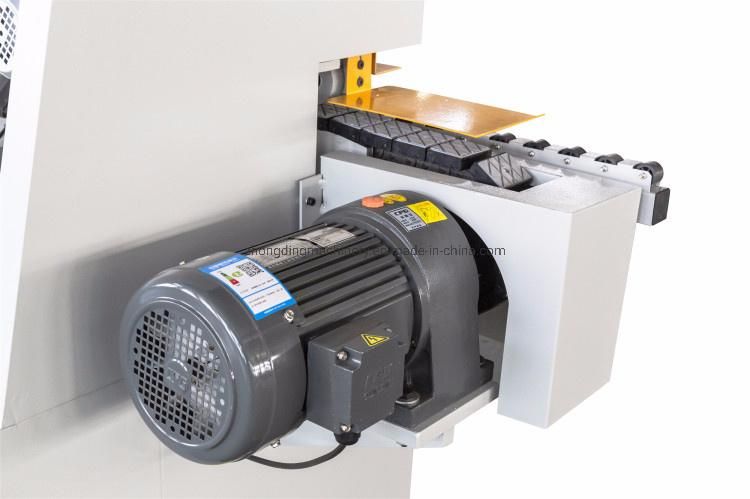

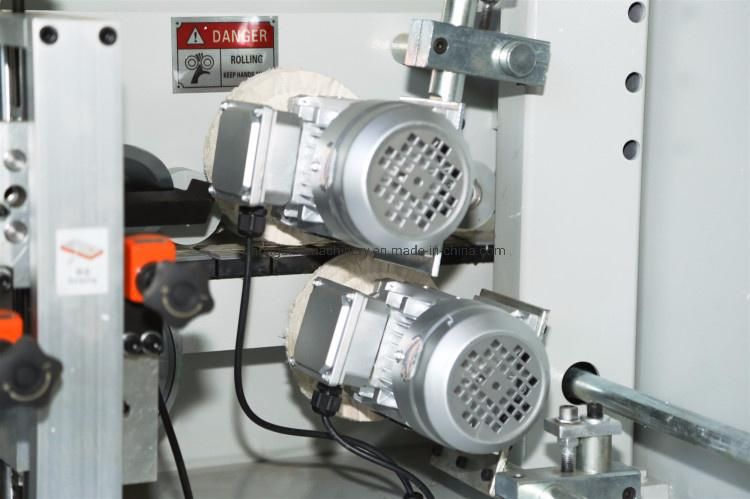

Detailed pictures:
Function: Gluing, fine trimming, buffing.
About US:
Factory:
Certificates:
Packaging & shipping:
FAQ:
1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. CE and ISO certification available.
6. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!
For more details, pls feel free to contact us.
