• Model NO.：MJ3971X400
• Precision：High Precision
• Certification：ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Name：Horizontal Band Saw
• Model：Mj3971X400
• Cutting Wheel Motor Power：18.5kw
• Max Working Size：400*200mm
• Cutting Wheel Diameter：711mm
• Saw Kert：1.3-1.6mm
• Feeding Speed：0-20m,Min
• Weight：1900kg
• Transport Package：Wooden Case
• Specification：2850*2020*1900mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month

Machine Parts Introduce

1.Machine lathe bed: Use the massiveness square tube Welding to make sure the machinecan reduce shake when working. So that the machine can be more stable.

2.Lifting shaft: This Part is the machine force bearing point When start. Also is important for the saw Blade tensioning.Our machine use 65mm Diameter lifting shaft and go through the heat treatment.in the shaft surface,there have the 0.8mm hard chrome. This can make sure the fluency of lifting and the saw blade will not easy to broken if the tension is over.so that will make the machine more stable and cutting in high precision.
3.Lifting system: we use the Taiwan brand:ABBA high Precision lead screw. It can adjust the Lifting in the range:200mm.Is convenient To adjust the timber thickness you want To cut.Also the lifting location is accurate.

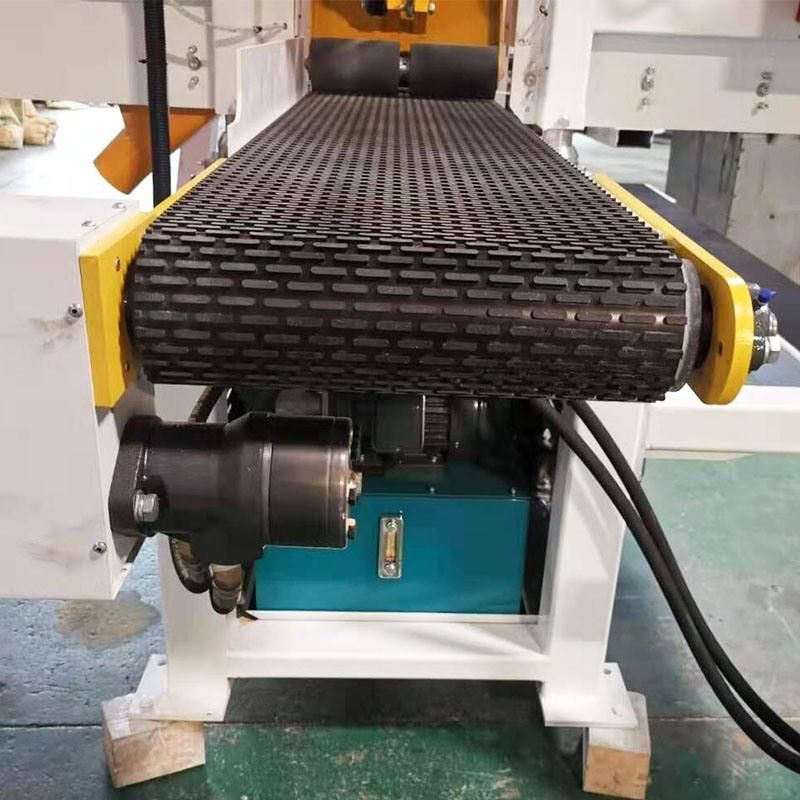

4.Feeding device: Use the plummer block to drive the Special design feeding roller and the skid resistance conveyer belt going.The Special design roller have the special Cambered surface to make sure the Timber feeding stable. This Directly have the Good effect for the precision when Timber cutting.
5.Saw wheel:Use high hardness rolled steel and go Through Ten steps ( laser cutting, heat treatment etc)Process. more stable and more durable. Saw blade is not easy to broken, reduce the Cost of saw blade.
6.Heave bearing device: Saw wheel use the NSK heavy release bearing .The contact area larger will make sure when the tension is over can bear the force.Also can reduce the saw wheel excircle wear rate, enlarge the saw wheel life and reduce the rate of the saw blade broken.
7.Saw wheel tension oriented: Use the Germany brand: Rexroth guide strip slide.Saw wheel is not easy to swing, and the saw blade is stable. This have the good effect for the saw wheel life and convenient to install the saw blade.
8.Auto tensioning system: Our machine have the auto Tension function, worker is Convenient to change the saw Blade.Also this system have the Pressurize function. when the Saw blade fever when cutting It will adjust the pressure Automatic. to make sure the Saw blade in the same location This can make sure the saw Blade not easy to run and Broken. Improve the production Efficiency and reduce the cost.

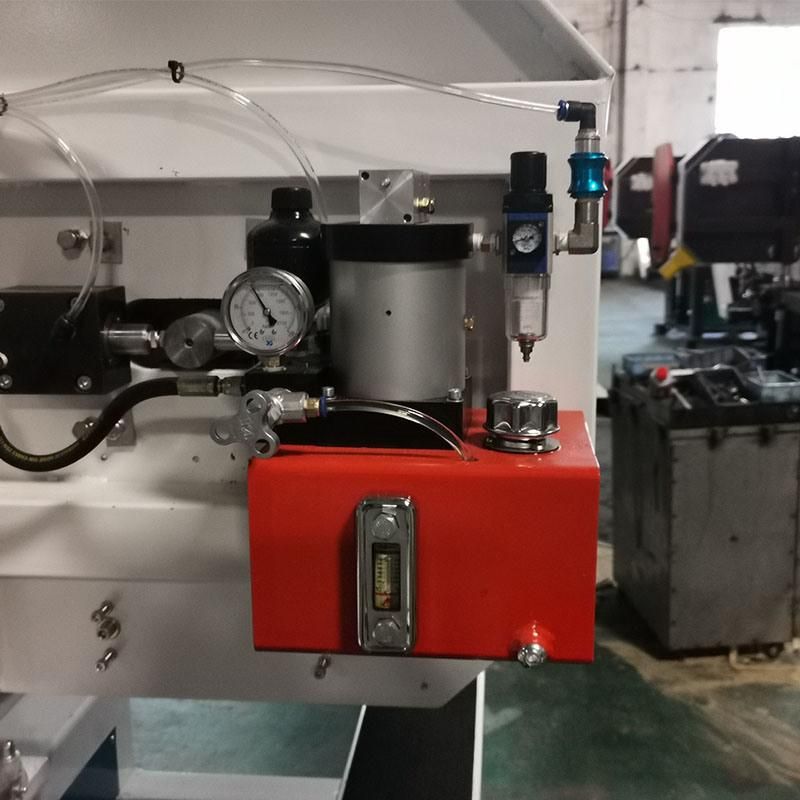

9.Hydraulic valve: we use the USA brand. this part can Make sure the oil temperature not rise So that can let the timber feeding stable Not waste the material.and the feedingSpeed can adjust from 0 to 18m/min. Suitable for different wood cutting.
10.Hydraulic motor: This part is one of the Hydraulic System. It use for the Hydraulic oil Output to drive the working table Bearing turn the control the feeding.This part is Italy technology special Booking.It can make sure the oil Output stable and avoid the bad effect of the Hydraulic System temperature over or the Feeding speed change.
11.Shock attenuation device: This part can reduce the shock When timber feeding into the Press system to make sure the Feeding smooth and steady.
12.Saw cramp and guide pulley: The saw cramp use the ceramic Inside .more wear-resisting to Reduce saw blade cost.When the saw blade retreat,the Guide pulley can stop the saw blade Retreat so that can make sure the Saw tooth not touch the saw cramp.Enlarge the saw blade life.

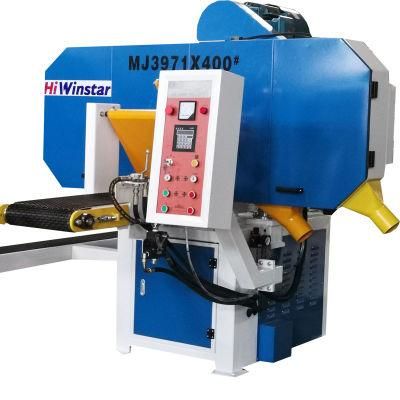

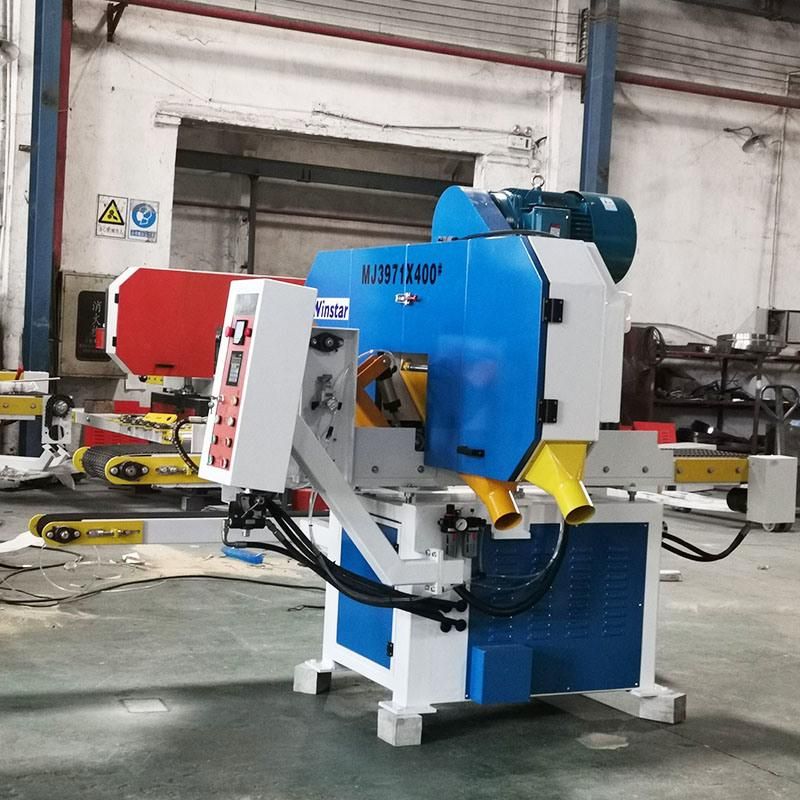

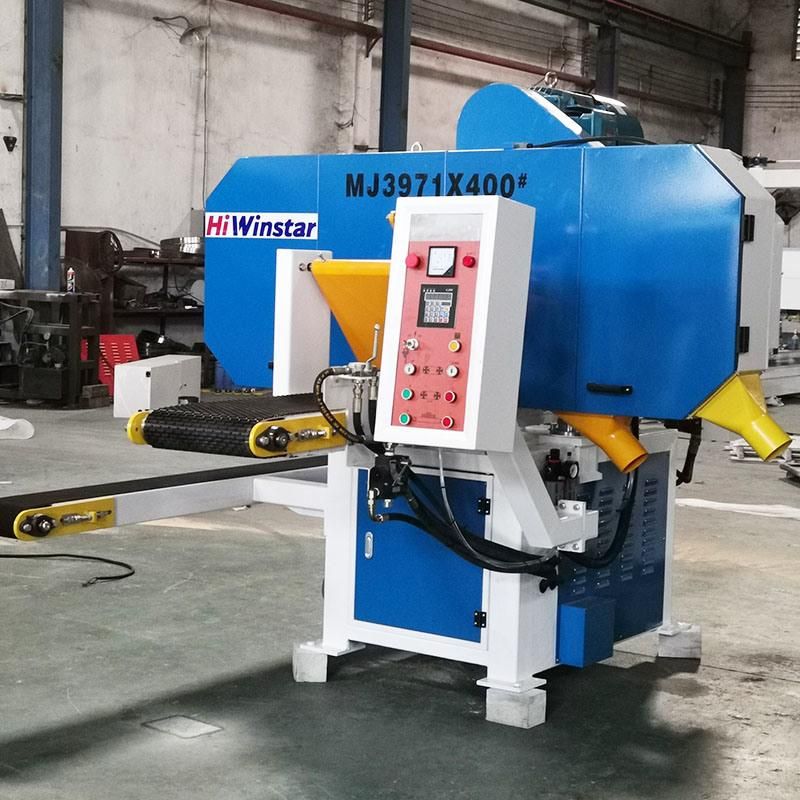

Detailed Pictures
Application
Mainly used for composite floor panel processing, suitable for wood panels, solid wood flooring, puzzles and other decorative veneer panels the forefront of equipment, high precision, fast, ultra-thin cutting.
Packaging & Shipping

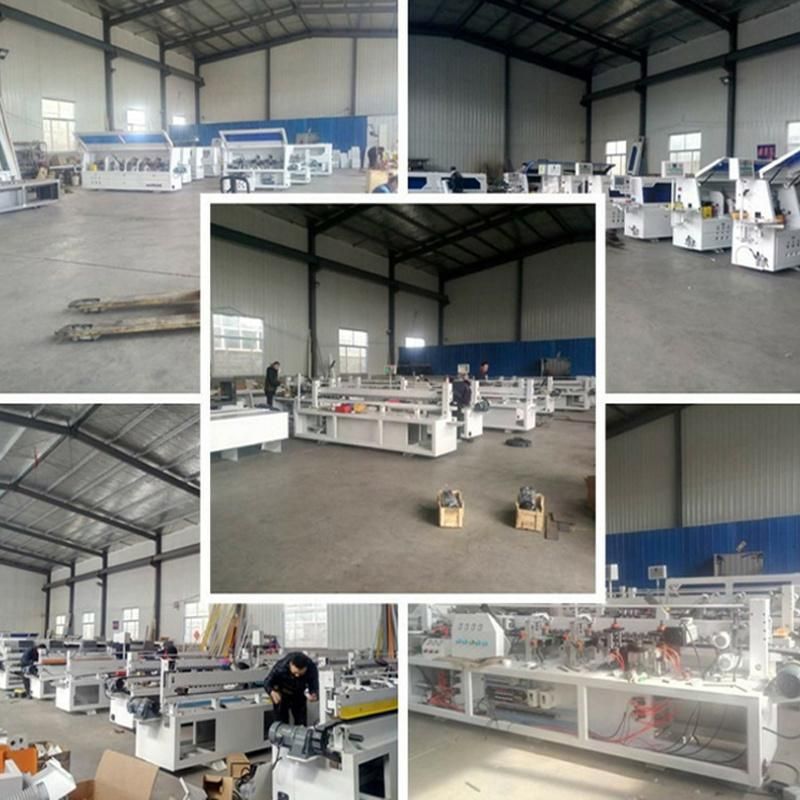

Company Information
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.


3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
