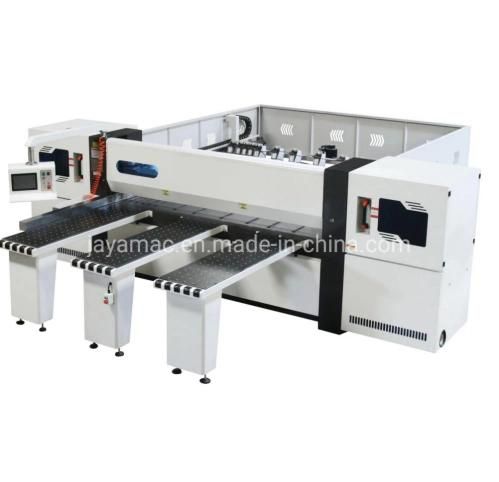

ZICAR new design woodworking Panel Saw MJ6232A
JAYA INTERNATIONAL CO., LTD.- Type:Table Panel Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Precision:High Precision
Base Info
- Model NO.:MJ6232A
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- Height of saw cut:100mm
- Sawing precision:0.1mm
- Air pressure:0.6-0.8MPa
- Small saw motor power:2.2kw
- Secondary saw speed:61000r,min
- Sawing speed:0-100m,min,Frequency
- Main saw speed:4100r,min
- Return speed:120m,min
- Transport Package:Film Package
- Specification:5900X5900X1750mm
- Trademark:Zicar
- Origin:China
- HS Code:8465910000
- Production Capacity:500
Description
Basic Info.
Model NO. MJ6232A Certification CE, ISO Customized Customized Condition New Color Customized Height of saw cut 100mm Sawing precision 0.1mm Air pressure 0.6-0.8MPa Small saw motor power 2.2kw Secondary saw speed 61000r/min Sawing speed 0-100m/min,Frequency Main saw speed 4100r/min Return speed 120m/min Transport Package Film Package Specification 5900X5900X1750mm Trademark Zicar Origin China HS Code 8465910000 Production Capacity 500Product Description
ZICAR woodworking sliding table panel saw machine MJ6132YIIFeatures:
The main function of the precision panel saw is to use its structural characteristics, that is, to use two fixed saw blades-the scoring saw blade and the main saw blade, to manually push the mobile work made of the aluminum profile carrying the processed board parts The table moves back and forth to realize the sawing of the processed plate.The main structural feature of the precision panel saw is the use of two saw blades, namely the main saw blade and the scoring saw blade. When cutting, the scoring saw cuts ahead of time, and first cuts a groove with a depth of 1 to 2 mm and a width of 0.1 to 0.2 mm thicker than the main saw blade on the bottom surface of the processed board to ensure that The edge of the cutting edge will not tear when the main saw blade is cut, so as to obtain good cutting quality. The scoring saw blade has a small diameter, usually around 120mm, and is driven by a separate motor. It is required that the scoring saw blade and the main saw blade are aligned in the same vertical plane. The diameter of the main saw blade is generally 300-400mm, which is driven by the main motor through the V-belt.
Specifications:
Model | MJ6233A |
Length of saw cut | 3200 |
Height of saw cut | 100mm |
Main saw speed | 4100r/min |
Servo positioning accuracy(precision square rail) | 1.5kw(0.02mm) |
Sawing precision | ± 0.1mm |
Main saw motor power | 11kw(15kw optional) |
Main blade outer diameter | 350-400mm |
Main saw balde inner diameter | 80mm |
Traction motor power (rack drive) | 1.5kw |
Small saw motor power | 2.2kw |
Vice saw blade outer diameter | 180mm |
Secondary saw blade inner diameter | 55mm |
Secondary saw speed | 61000r/min |
Sawing speed | 0-100m/min,Frequency |
Return speed | 120m/min |
Air pressure | 0.6-0.8Mpa |
Total installed power | 17kw (21kw optional) |
Weight | 6300kg |
Machine size (L × W × H) | 5900X5900X1750mm |

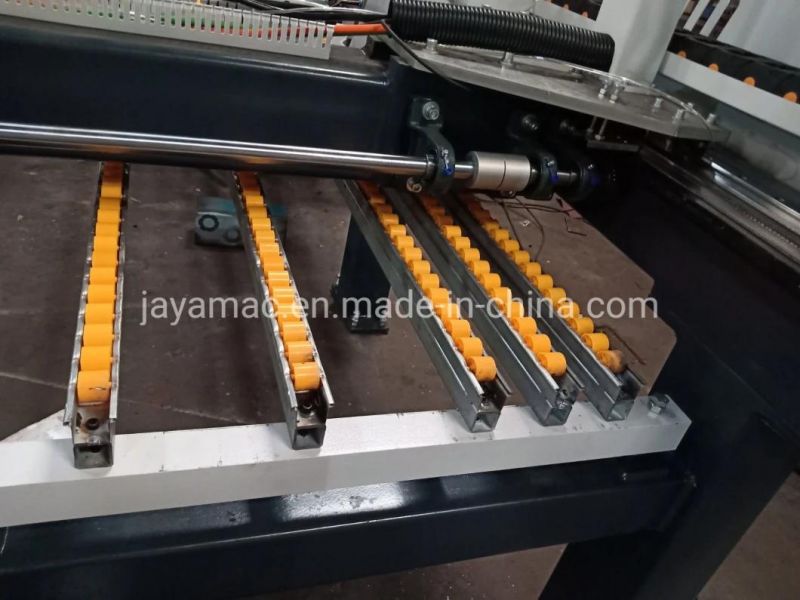

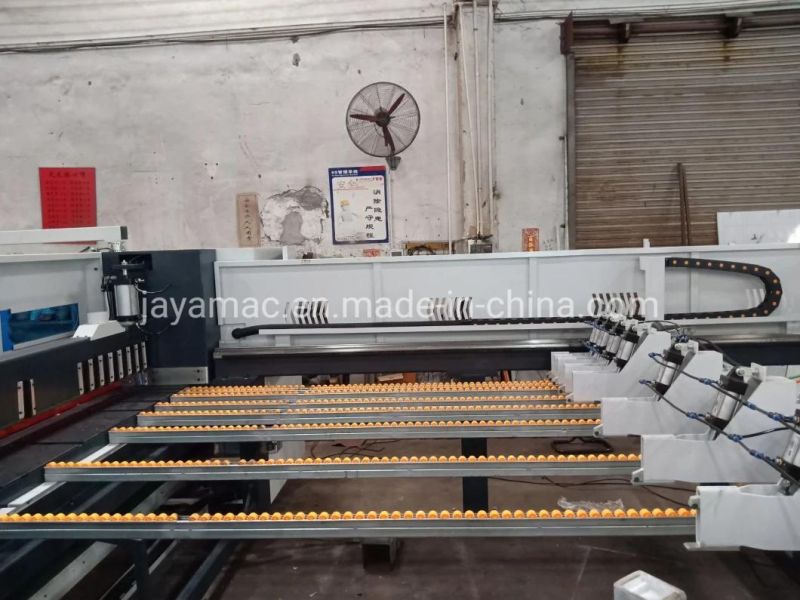

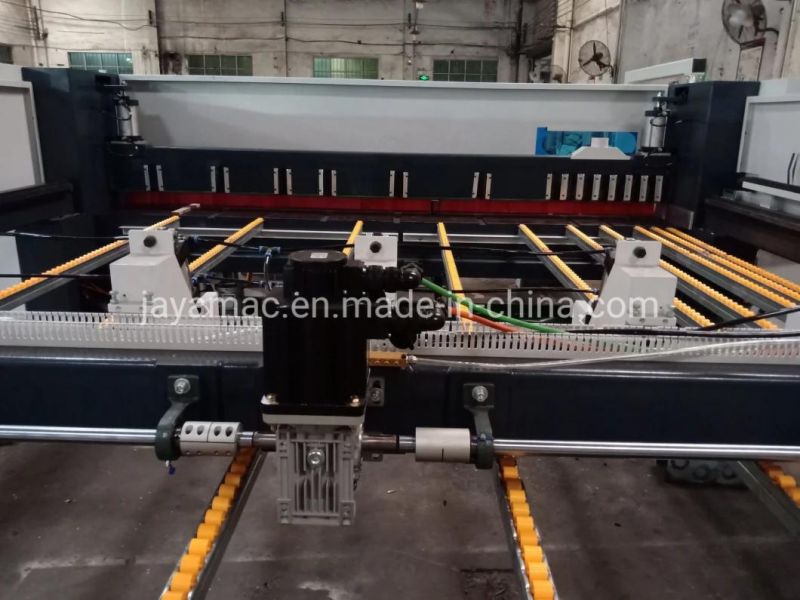

Detail photos:

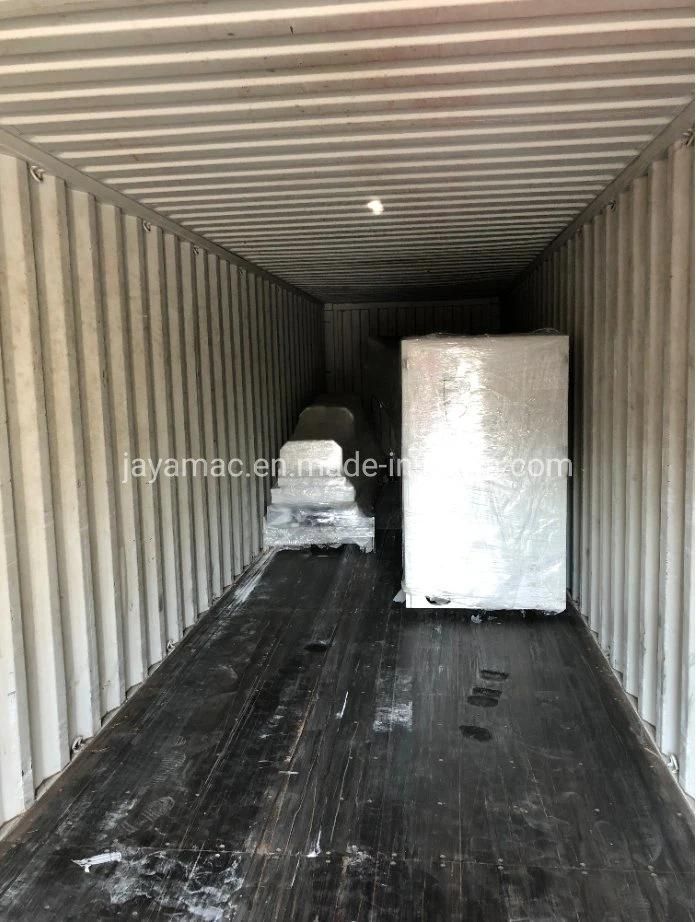

Packing pictures:
