• Model NO.：SZLH860
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：220kw
• Weight：10t
• Transport Package：Plywood Box
• Specification：2780*1950*2250
• Trademark：Kingoro
• Origin：China
• Production Capacity：2.5-3.5t,H

Basic Info.

Model NO. SZLH860 Warranty 1 Year Customized Customized Condition New Color Multi Color Power 220kw Weight 10t Transport Package Plywood Box Specification 2780*1950*2250 Trademark Kingoro Origin China Production Capacity 2.5-3.5t/H

Product Description

Vertical Ring Die Biomass Fuel pellet making machine
 Through the method of physical extrusion, the vertical ring die pellet machine can make all kinds of biomass raw material into pellet. Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller. Double ring type, can use both. The mould is in vertical structure, which is good for heat dissipation. With independent lubricating, no need to stop machine for special maintenance. It is widely used in biomass burning factory, power plant, wood processing plant, chemical plant, food products factory, winery plant etc.



Applicable material
Applicable to: rice husk, sunflower seed shell, peanut shell and other melon shell; branches, trunks, bark and other wood scrap; all kinds of crop straw, rubber, cement, gray Slag and other chemical raw materials, etc.


Finished pellets

Specification

Model	Power (kw)	Capacity (t/h)	Size (mm)
SZLH470	55	0.8-1.0	2000x1550x1680
SZLH560	90	1.2-1.5	2600x1300x2300
SZLH660	132	1.5-2	2500x1300x1900
SZLH760	160	1.5-2.5	3000x1500x2600
SZLH850	220	2.5-3.5	3780x1700x2950
SZLH860	220	2.5-3.5	2780x1950x2250

Main Features

1) Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller,the material is centrifugal and equipspaced around the die.

2) The die is double ring type, with vertical structuer,pelletizing room is also used for cooling,more options, and more gains.

3) The independent ejection device ensures the forming rate of pellet, the good design lowers the consumption and enhances the efficienty. it works 24 hours and lubricates automatically.

4) The main load-carrying component used high alloy wear resistant materials. the wearing parts lifetime doubles compared with other similar products.

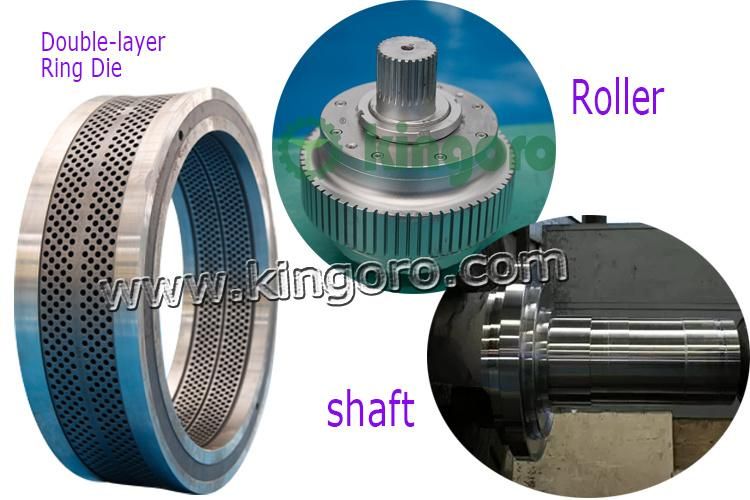

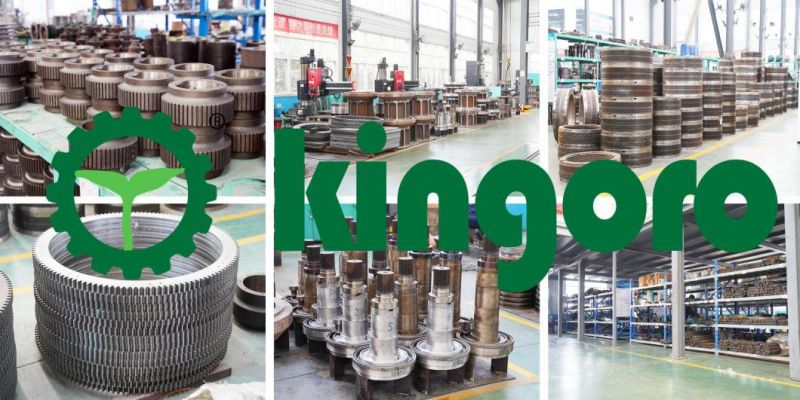

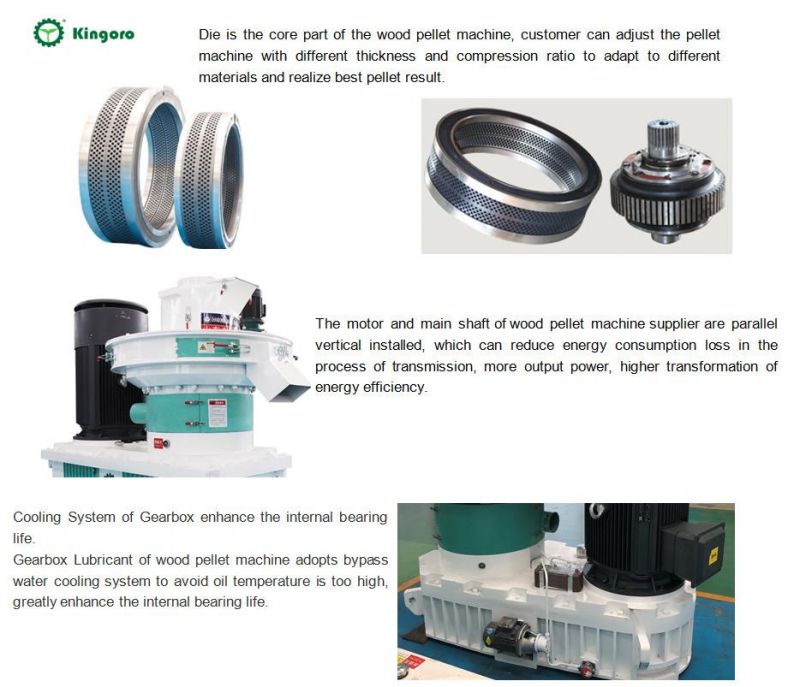

Spare parts

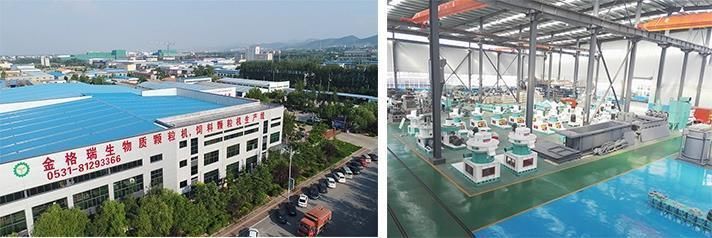

Our company




 Shandong Kingoro Machinery was established in 1995 and has 23 years of manufacturing experience. Our company is located in beautiful Jinan, Shandong, China.

We can supply complete pellet machine production line for biomass material, include chipping, milling, drying, pelletizing, cooling and packing, according to different requirements of our customers. We also offer industry risk evaluation and supply suitable solution according to different workshop.

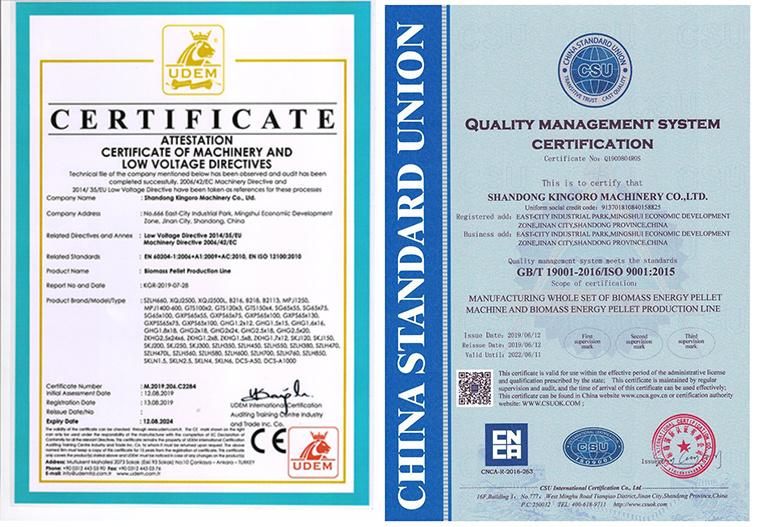

Kingoro as an advanced manufacturer of biomass pelletizers, owns 17 national patents and has obtained IS09001 quality system certification, CE certification, and SGS certification.

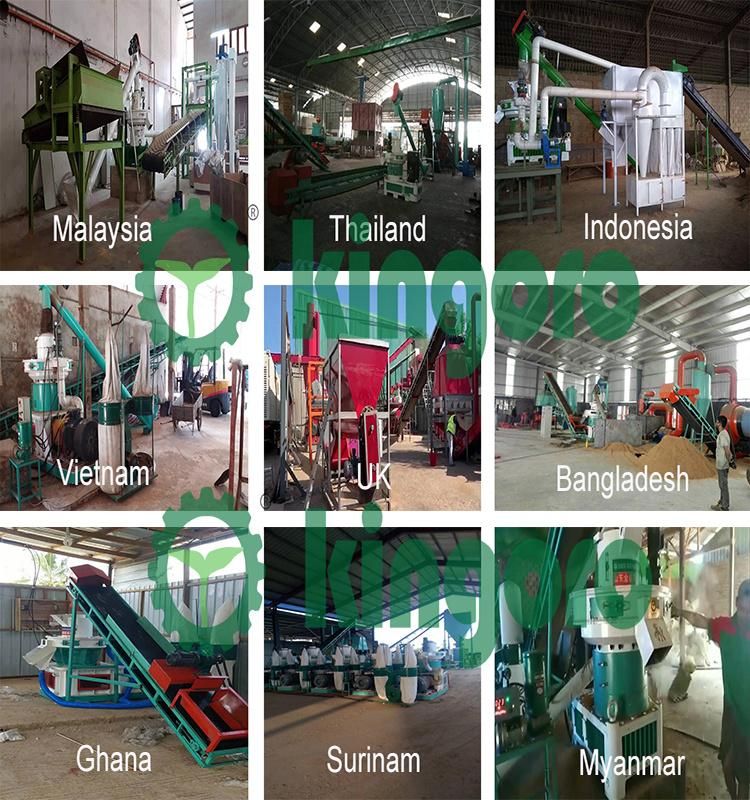

Our Customers

After service

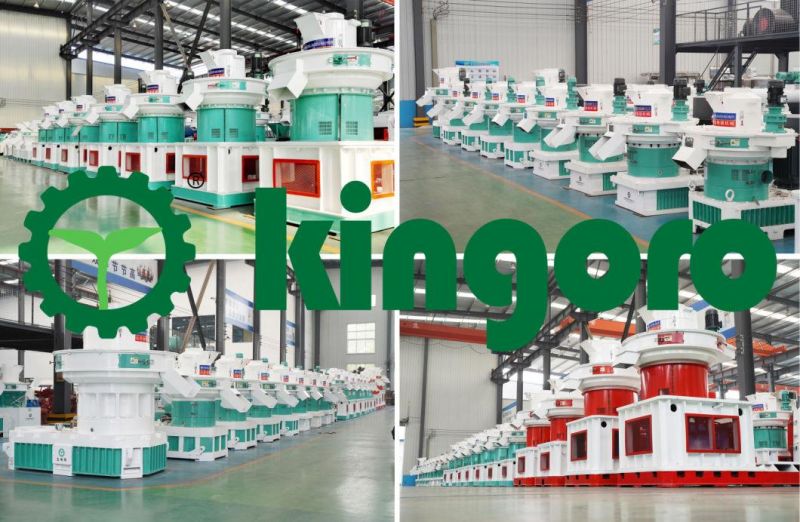

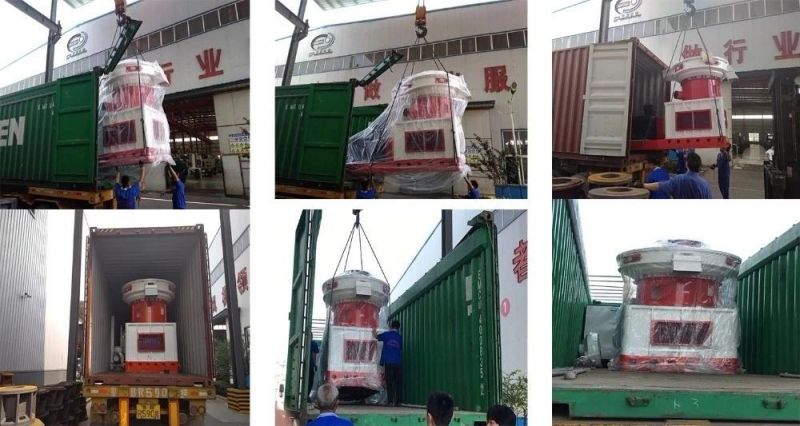

Delivery


FAQ & Contact
1.We need to know the following information to give a quote and solution
1)What is your raw materials? (to confirm mould pressure ratio of machines )
2) What is the moisture content of your raw material?
3)How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 10-15%.
And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.

2. Q: How long is your guarantee?
A: 12 months warranty but except quick wearing parts.

3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team.
When the machines arrive your factory, we will send our installation engineers to your factory
Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.

4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
