Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture

Shandong Guandiao CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Resolution:+,- 0.01mm
  • Max Cutting Speed:70m,Min

Base Info

  • Model NO.:GD1325
  • X and Y Axis Transmission:Germany Herion 1.5mrack and Pinion
  • Z-Axis Transmission:Germany Tbi Ball Screw
  • Guide Rail:Taiwan Hiwin 25mm Linear Rail
  • Spindle:9.0kw, Air-Cooling
  • Working Mode:Japan Yaskawa  750W Servo Motor
  • Xy Transmission:Imported Rack
  • Z Transmission:Taiwan Tbi Ball Screw
  • Reudcer:Japan Shimpo
  • Auto Tool Change:Yes, Linear Type
  • Dust-Collection Function:Yes
  • Air Pump:7.5kw
  • Dust Collector:4kw, Double Bags
  • Inverter:Hpmant 11kw
  • Transport Package:Plywood Packing
  • Specification:2100*3200*1900mm
  • Trademark:Guandiao
  • Origin:Jinan
  • HS Code:8465990000
  • Production Capacity:10000 Sets,Year

Description

Basic Info.

Model NO. GD1325 X and Y Axis Transmission Germany Herion 1.5mrack and Pinion Z-Axis Transmission Germany Tbi Ball Screw Guide Rail Taiwan Hiwin 25mm Linear Rail Spindle 9.0kw, Air-Cooling Working Mode Japan Yaskawa  750W Servo Motor Xy Transmission Imported Rack Z Transmission Taiwan Tbi Ball Screw Reudcer Japan Shimpo Auto Tool Change Yes, Linear Type Dust-Collection Function Yes Air Pump 7.5kw Dust Collector 4kw, Double Bags Inverter Hpmant 11kw Transport Package Plywood Packing Specification 2100*3200*1900mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000 Sets/Year

Product Description

Product Description

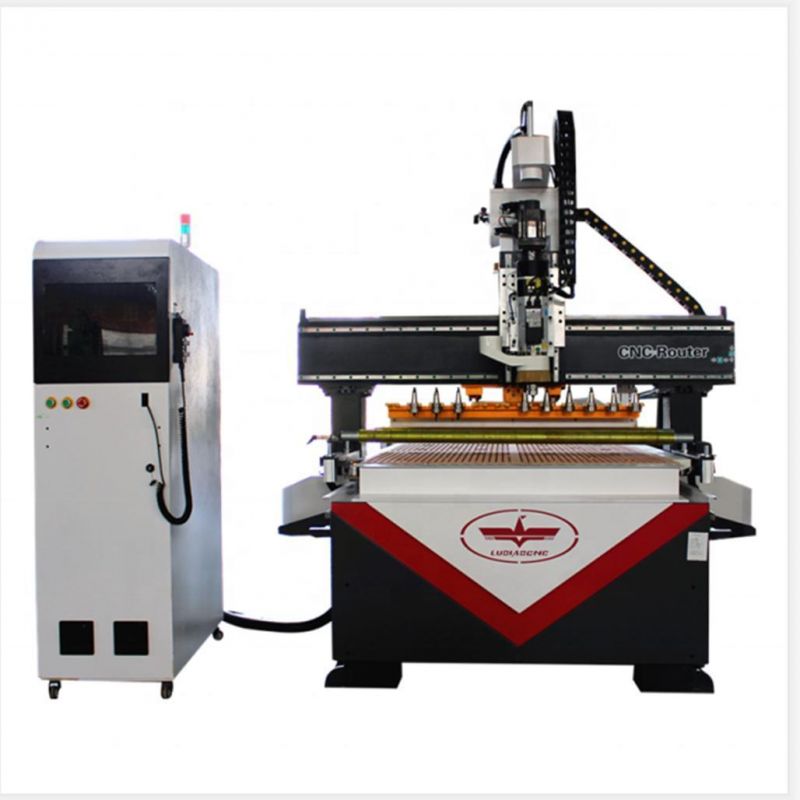

ATC Woodworking CNC Processing center
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture

Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture



Advantage of ATC Woodworking CNC Processing center
1. The overall bed with steel seamless welding ,wearing strong, durable ,not easily deformed.Imported square guide rail and high precision ball screw, high precision,wear -resistant,smooth operation
2.Linear automatically tool changer system, tool change only takes more than ten seconds, you can save the tool change time, improve the production efficiency
3.Optional Taiwan LNC  system, Intelligent processing cross-border protection functions to prevent the design area beyond, and the intelligent processing speed control function, you can adjust the processing speed, increasing the tool working life
 4.T slot lathe structture and 6 separated vacuum adsorption table .assuring the high stability .can adsorb different size plates, more flat sheet

ATC Woodworking CNC Processing center technical parameters
ModelGD-1325A/GD-1325B
Working area1300*2500mm
Table size1740*3100mm
Z-axis working area200-300mm(optional)
Resolution+/- 0.01mm
Max Cutting Speed70m/min
X and Y axis transmissionGermany Herion 1.5MRack and Pinion
Z-axis transmissionGermany TBI Ball Screw
Guide railTaiwan Hiwin 25mm Linear rail
Spindle 9.0KW, air-cooling
Working ModeJapan yaskawa  750W Servo motor
XY TransmissionImported Rack
Z transmissionTaiwan TBI Ball screw
ReudcerJapan Shimpo
Auto Tool ChangeYes, Linear type
Dust-collection functionYes
Working tableT slot Vacuum table 6 And T clamp combination
Air pump7.5KW
Dust collector4KW,double bags
InverterHPMANT 11KW
SoftwareArtcam
CommandG code, HPGL,U00, mmg, plt
Lathe StructureSeamless welded steel, trapezoidal stable and strong lathe bed
Auto LubricationYes

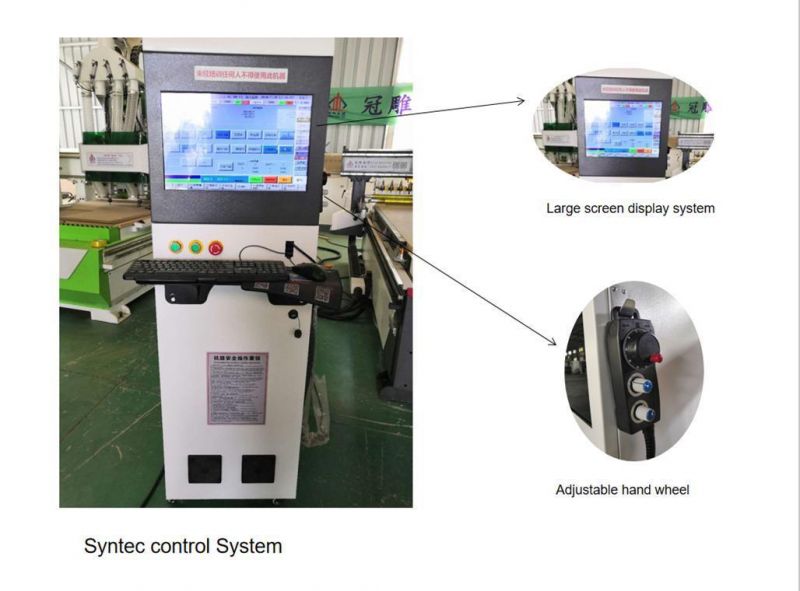

Operating SystemTaiwan LNC Control System
Standard power3P 380V,50Hz
Accessories
  1. Cutting tools and knife clip
  2. Air pump 7.5KW
  3. Dust collector
  4. Software
  5. Spanner
  6. Manual
  7. Tool collimator
  8. Tool handle
  9. Rotary(Optional)
PackagePlywood case
Warranty for the spindleHalf a year
Warranty for the machineOne year
Delivery time10 working days
Packing size4.6*2*2.21m

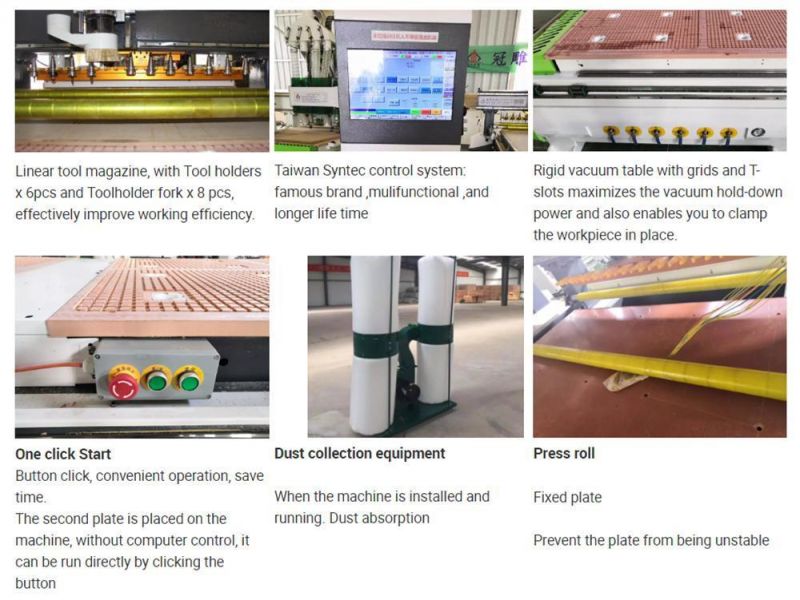

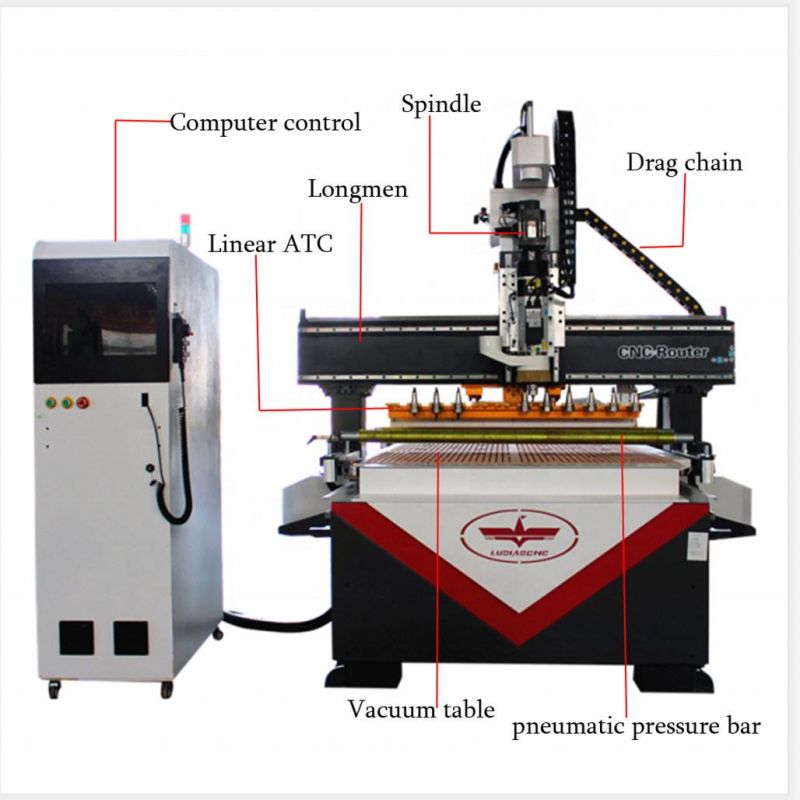

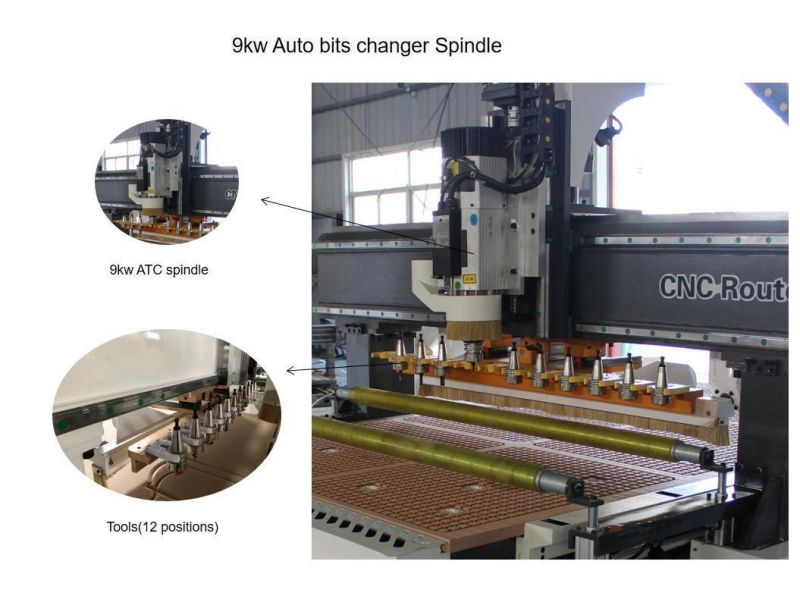

ATC Woodworking CNC Processing center details

Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF FurnitureTimber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture

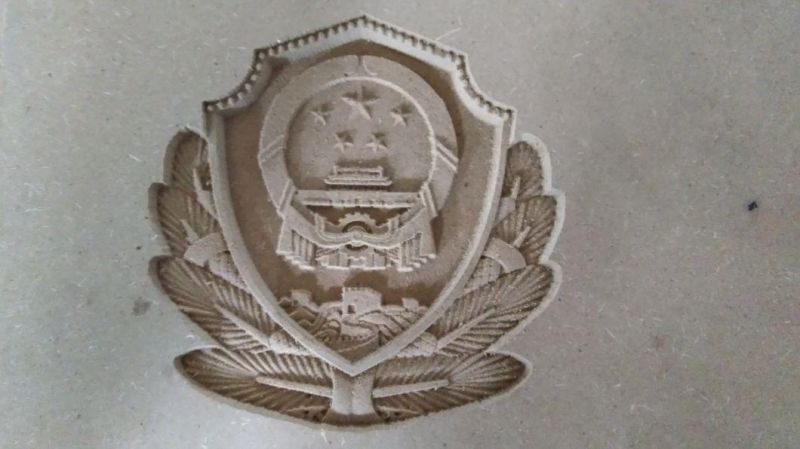

ATC Woodworking CNC Processing center samples

Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture

Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
  If you have other needs, please let me know

Packaging & Shipping
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture

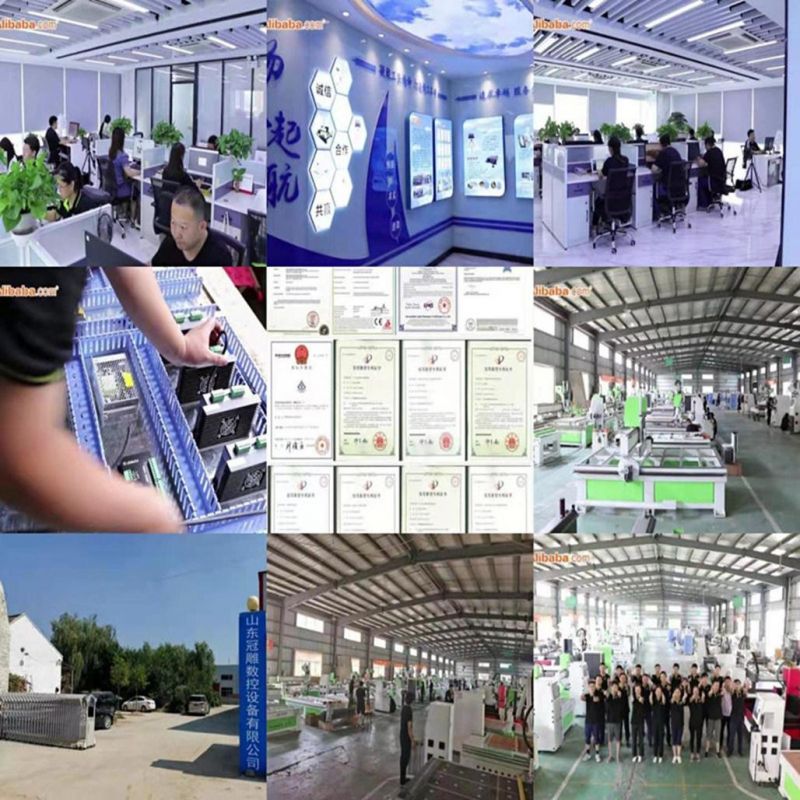

Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.

Timber Processing Machinery 2030 3 Axis Atc 3D Woodworking CNC Router for Wood MDF Furniture
