• Model NO.：MF223G
• Cutter Rest Turning Diameter：355mm
• Main Spindle Shuttle Distance 100mm：100mm
• Water Pump Electric Motor Power：90W
• Main Electric Motor Power：2.2kw
• Voltage：380V,220V
• Color：as Required
• Certificate：CE
• Cutter Real Stroke：300mm
• Knife Shaft Adapter：25.4mm
• Type：Automatic
• Sharpening Type：Profile Cutter
• Control：Automatic
• Transport Package：Plywood Package
• Specification：1220*1000*1380mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Model NO. MF223G Cutter Rest Turning Diameter 355mm Main Spindle Shuttle Distance 100mm 100mm Water Pump Electric Motor Power 90W Main Electric Motor Power 2.2kw Voltage 380V/220V Color as Required Certificate CE Cutter Real Stroke 300mm Knife Shaft Adapter 25.4mm Type Automatic Sharpening Type Profile Cutter Control Automatic Transport Package Plywood Package Specification 1220*1000*1380mm Trademark HiWinstar Origin China Production Capacity 100set/Month

Product Description

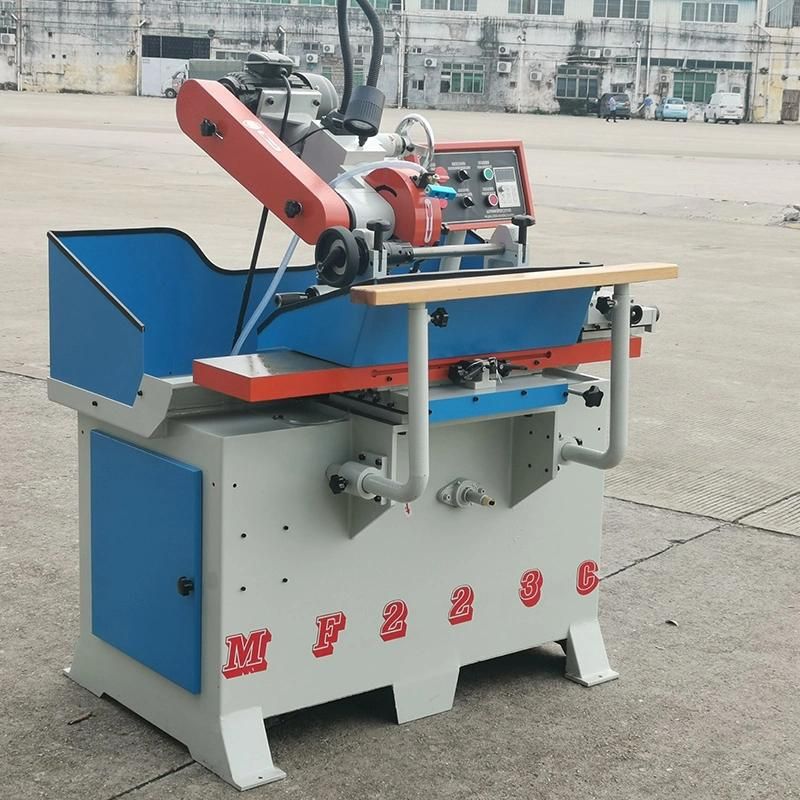

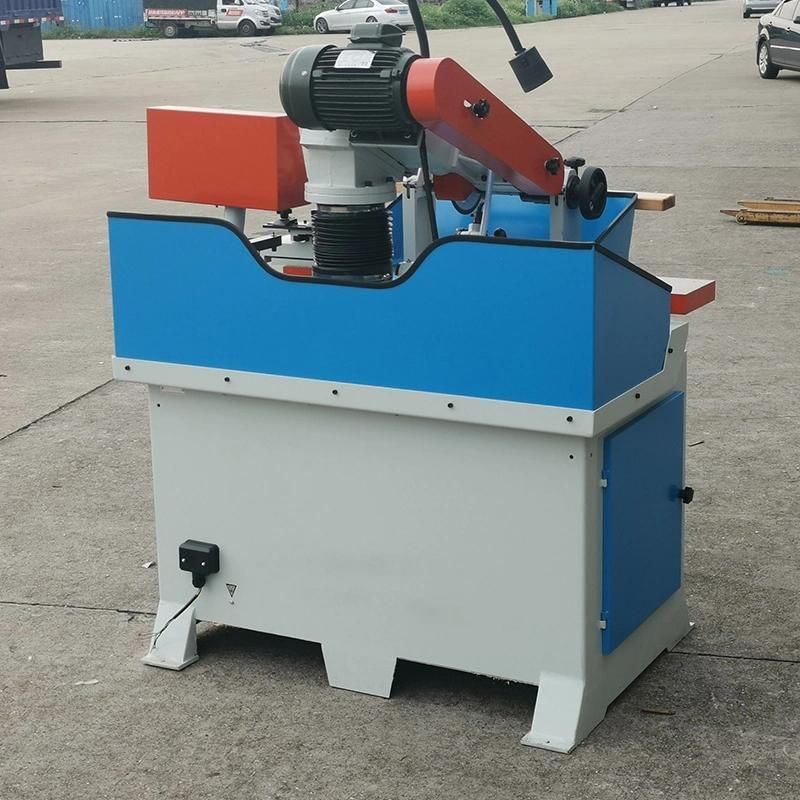

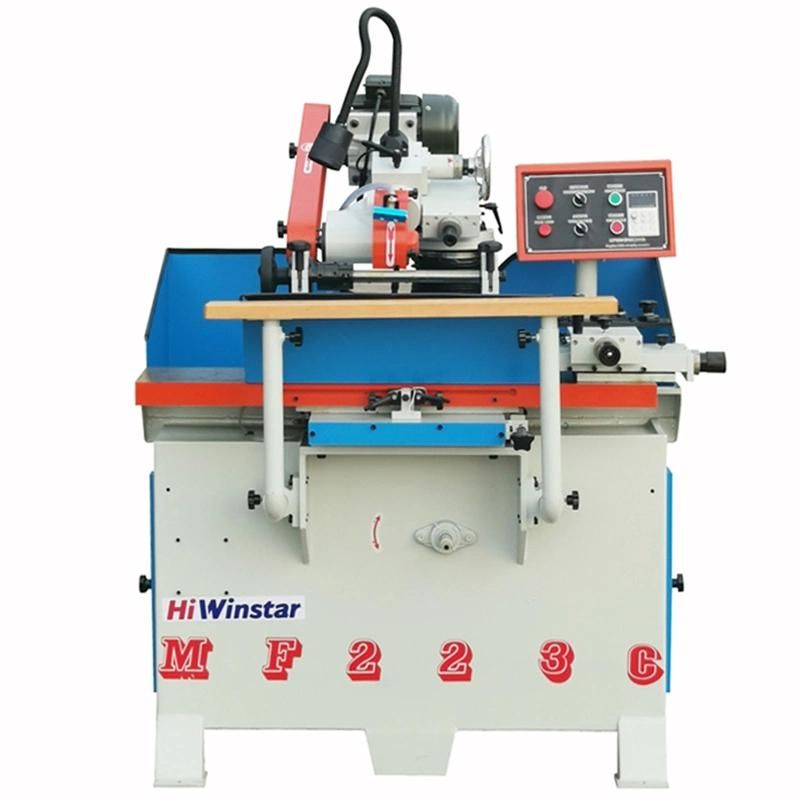

Mf223G Woodworking Profile tools cutter knife grinder sharpening machine

Product Description

Name	blade grinding machine
Model	MF223G
Cutter Reat Stroke	300mm
Grinding wheel adjustable Angle	±45ºC
Cutter rest turning diameter	355mm
Main Spindle Shuttle Distance	100mm
Grinding wheel install size	¢32×¢205mm
Main electric motor power	2.2kw
Grinding wheel rotate speed	4500/10000 r/min
Water pump electric motor power	90w
Knife shaft adapter	¢25.4,¢30,¢35,¢40
Lighting specifications	24v-35v
Overall dimensions	1220*1000*1380mm

Features
1.Water Cooling:With water cooling, can get better grinding effect.
2.Accurate:Adopt high precising scale ring and precision guide rail in all adjustable section.
3.The conditioning planer and workbench stroke adopt high precision V-type delicate track, The principle axis angle, grinding wheel lifting and cutter rest are all adjust by worm and gear structures.
4.Maintenance-free:All quick-wear part can dismounting easily, can study by video.
5.Wide application:Can use for all most all size saw blade.And can use at Grinding factory or the furniture factory or DIY at home.
Advantages
1.High degree accuracy scale rings are installed all adjusting sections to ensure the accuracy of the scale.
2.It can be used for cutting and grinding various kinds of cutting tools, one machine can be used for many purposes, to improve the efficiency of enterprises and save the purchase cost of machines.
3.The function and characteristics of the tool grinder are improved and optimized so that it can grind all kinds of high speed steel and hard alloy cutting tools and unilateral or multilateral cutting tools with the shape of half round Angle or reverse cone Angle.
4.Machines take up less space and are especially suitable for small and medium sized factories with more kinds of work but less quantity.
Detailed Pictures
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
