400/500/600t 15 Layers Plywood Hot Press Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Hot Press
  • Structure：Frame Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Multi Layer

Base Info

  • Model NO.：137x270x15L
  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO, FDA
  • Drying Capacity：30 Cbm, Day
  • Close System：Synchronize Close System
  • Cylinder Diameter：180mm
  • Layer Distance：60mm
  • No. of Layers：15 Layers
  • Transport Package：Standard Export Packing
  • Specification：25000KGS
  • Trademark：METRO
  • Origin：Shandong, China
  • HS Code：8465990000
  • Production Capacity：50set,Month

Description

Technical SpecificationModel No137x270x15LLayer Quantity15 LayersHot Platen Quantity16 pcsHot Platen Size1370x2700x42 mm ,Solid PlatenDistance Between Layers60mmCylinder Sizeφ180x900mmNominal Pressure40 KNHydraulic Rated Pressure8 MpaClosing SystemSynchronizing CloseClosing Time15 sHeating MediumThermal Oil or Steam WaterBoiler Capacity Required0.5T Steam Boiler or 300000Kcal Oil BoilerTemperature Required160ºCDrying Capacity35 m³/24 hoursFinal Moisture After Dry6%-10%Motor Power13kwFrame StructureBolting Knockdown TypeOperating WorkersFour Workers Can Operate Two Units DryerDimension3290x1370x2875 mmWeight25000 kgContainer Required1x40HQ for One Set of This Dryer



400/500/600t 15 Layers Plywood Hot Press Machine

400/500/600t 15 Layers Plywood Hot Press Machine


400/500/600t 15 Layers Plywood Hot Press Machine

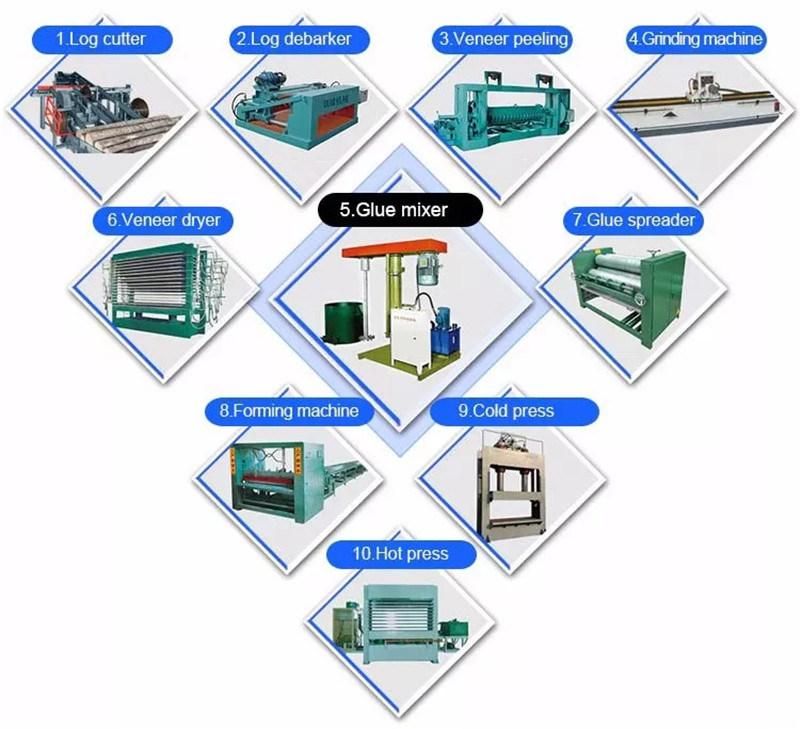

Process of making Plywood:
400/500/600t 15 Layers Plywood Hot Press Machine
