• Model NO.：ZS-2512R
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. ZS-2512R Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

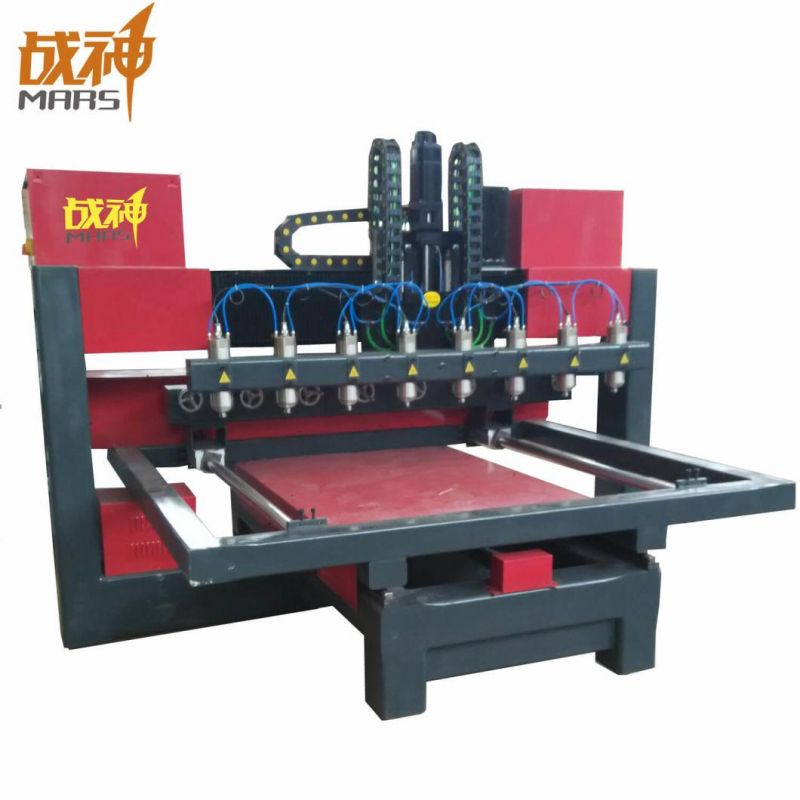

Four Axis Rotary CNC Router Machine/Engraving Machine

Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                 Three Brands: Mars, Golden Eagle, Boiro
                 Technicist who go abroad to offer after-sale service

 Parameters


Model	ZS-2512R Four Axis Rotary Wood CNC Router
Working Stoke	Ø250X1200mm
Feeding Height	160mm-250mm
Table Structure	T-slot
Body Structure	Thick steel tube welded, w/ tempering
Spindle Power	6*2.2KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	RichAuto-A11 DSP
Drive System	SG servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Max Travelling Speed	20m/min
Max Processing Speed	10m/min
Dictate Format	G code/ HPGL
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	2500KG
Machine Size	2700*2000*2100mm

Performance Features:

1. Selection of imported ball screw, high precision dividing head, big clamping diameter, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. Using a unique intelligent prediction algorithm, gives full play to drive potential to achieve high speed processing, linear and curve synchronous,
the curve is more smooth.
5. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.;
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..


Application:

Can be widely used for the 3D processing of body sculpture, statues, artware, jewelry, furniture, stone columns, etc..


Package and shipment:

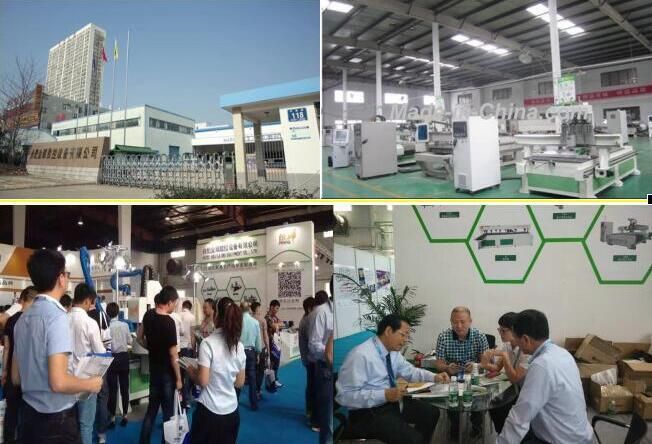

Company show

Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.


Certificate



FAQ

Q1. how to get the most suitable machine and best price?
Please tell me
what's material you want to cutting or engraving ?

what's MAX size of carved material ?
Then I will recommend the most suitable model and the best price for you.

Q2. In case of failure,how to do?
Call us----our engineers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us

The CD and operation manual----It show the most common failure in working processing and how to solve this problems.

Q3. What is the type of shipping and producting time?
we offer EXW, FOB and CIF which you can choose as you like.
when you pay for the pre-payment, we will arrange producting which about 7--15 days.
