Saga Woodworking Machinery High Frequency Dryer for Wood

Shijiazhuang SAGA Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE
  • After-sales Service：1 Year
  • Usage：Hardwood, Extremely Hardwood
  • Stacking Size：5300*2160*2100mm
  • Drying Method：High Frequency Dielectric Heating

Base Info

  • Model NO.：HFVD45-SA
  • Temperature：Low in Vacuum Tank
  • Capacity：4.5-13 Cbm
  • Loading：No Need Wood Sticks
  • Control Type：Automatic Touch Screen
  • Feed Cart：Automatic with Motor
  • Components：Schneider & Omron
  • Transport Package：Seaworthy Packing, Wood Case and Plastic Foam
  • Specification：5700*2100*2100mm, 8000kgs
  • Trademark：SAGA
  • Origin：Hebei, China
  • HS Code：8514400090
  • Production Capacity：50 Sets Per Year

Description

Packing40" GP (5 packages)



Optional Models



ModelHF Input PowerHF Output PowerStacking Timber SizeStacking Timber CapacityContainerHFVD30-SA40 kva30 kw1*1*3 m3 m320"HFVD100-SA70 kva50 kw1.3*1.3*6 m10 m340"HFVD120-SA70 kva50 kw1.3*1.3*8 m13 m340"Saga Woodworking Machinery High Frequency Dryer for Wood

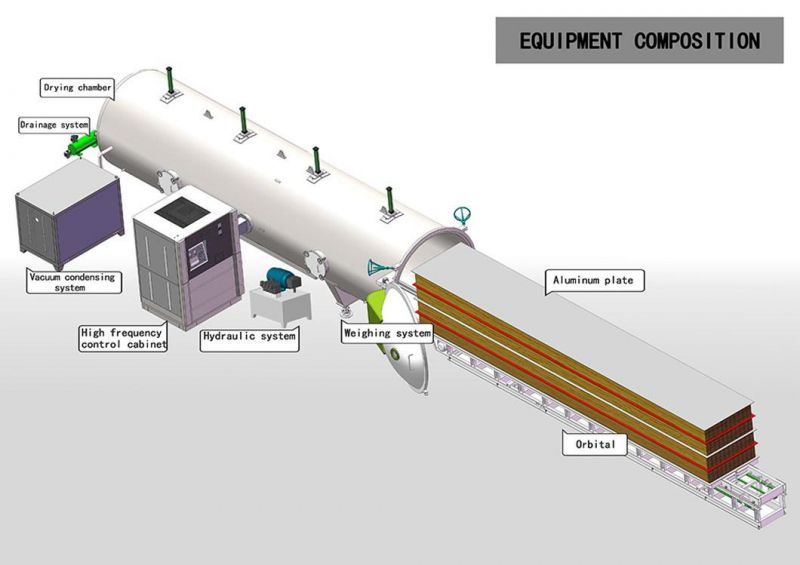

Main Parts

1.High frequency generator

2.Control cabinet

3.Vacuum tank

4.Hydraulic system

5.Weighing system

6.Temperature tesing system

7.Cooling system

8.Full-auto feeder


CaseDrying TimeDrying ResultConsumptionSliced veneerabout 40 hoursHigh quality on flatness and water content uniform200~250kw/cbmSurface of floorboardabout 45 hoursHigh quality on flatness, no end cracking and deformation, no color changeabout 200kw/cbmMiddle hardwood for second time dryingabout 35 hoursRelieving tension, make water content uniform and make wood stableabout 150kw/cbmHardwood drying

Rosewood: 7 days

Red Sandalwood: 14 days

No cracking or deformation, moisture content uniform, more stableabout 500~600kw/cbm,different consumption for different woodLarge plank7~10 days , moisture content from 60% to 20%,10cm thick+, like Birch,Larch,Pinus and PineNo deformation on vertical direction, no cracking problem, more stabledifferent wood with different power consumptionSaga Woodworking Machinery High Frequency Dryer for Wood

Saga Woodworking Machinery High Frequency Dryer for Wood
Pre-sale sevice:

1.Reply customer's email or call customer back if missed any calls.

2.Design the best processes and programs according to customer's requirement.

3.Answer customer's questions patiently

On purchase service

1.Commissioning the machines before shipment carefully.

2.Train the customer's technician, and provice operation video and matters needing attetion.

3.Arrange customs declaration, sea shipping, insurance,etc.

After-sale service

1.The warranty is 12 months, will provice spare parts for free this period,if customer break it in using, customers should take charge of delivery cost.

2.Provide the solution of installation or use problem within 3 working hours.

3.Engineers able to install and train the operators overseas.
Saga Woodworking Machinery High Frequency Dryer for Wood

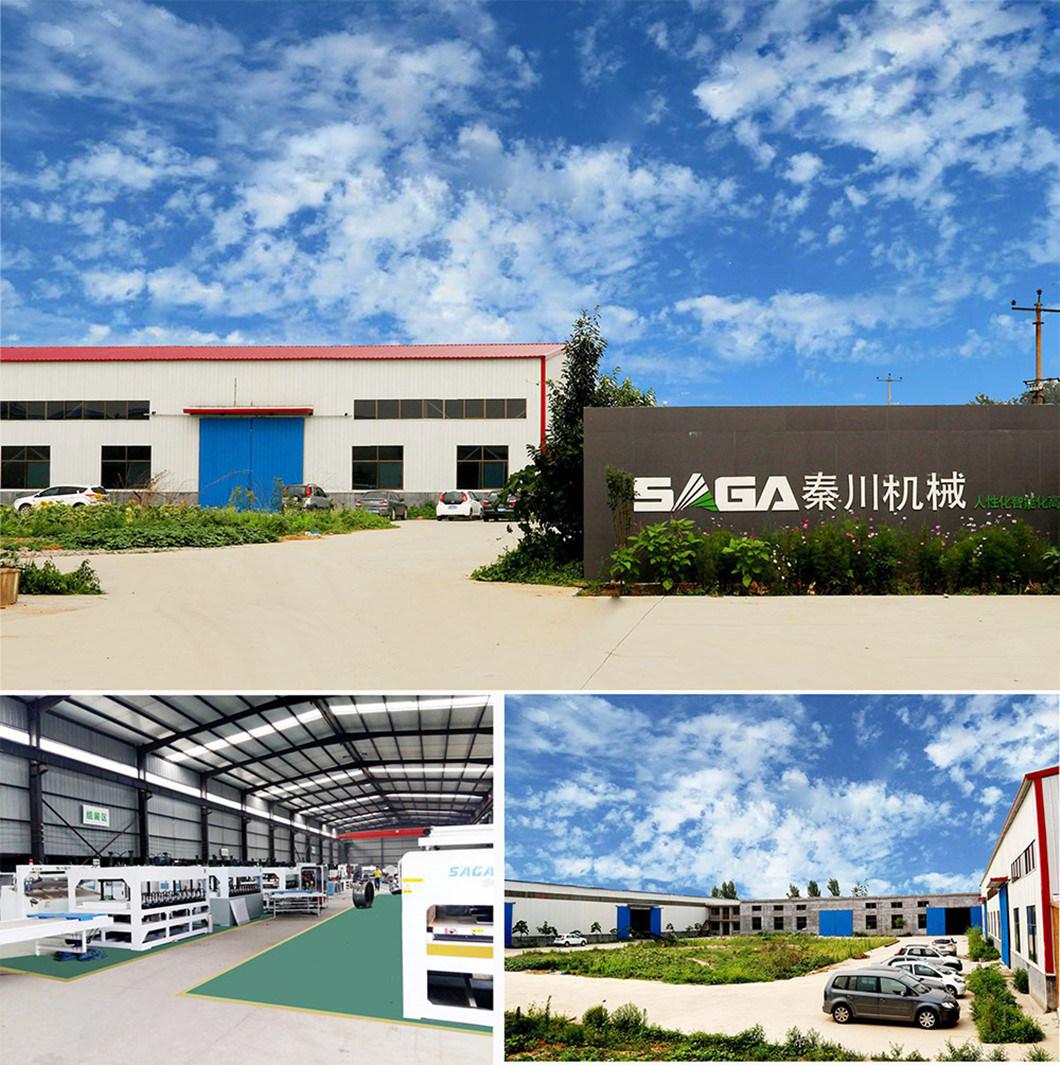

Company Information:

Saga Machinery Co., Ltd is professional high frequency woodworking machinery manufacturer in China,our product cover with high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluing press, high frequency wooden door frame assembly machine, high frequency wood frame assembler, high frequency generator, etc. European standard spare parts are used to keep the machine stable and uniform.

We have customers in USA,Canada,Romania,Denmark,Holland,Turkey,Belarus,Russia,Ukraine,Vietnam,India,Korea,Indonesia,Philippines,Panama,Chile,Mozambique,Israel,Croatia,etc.

Saga can provide best quaility and after-sale service, will meet customer's requirement to make the production better and better, we are not only machine factory, but also project supplier, will recommend the suitable machine and project to customer.
