• Model NO.：ATC-RJ1325,1530,2030,2040
• Trademark：jinanruijie
• Origin：Shandong Jinan
• HS Code：8465990000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. ATC-RJ1325/1530/2030/2040 Trademark jinanruijie Origin Shandong Jinan HS Code 8465990000 Production Capacity 5000pieces/Year

Product Description

features
adopt domestc 5.5kw ATC water cooling spindle of large power(option: italy 9.0kw HSD air cooling spindle)
high accuracy ,long service time, steady and smoth movement,and good starting performance ,grest orque ,fulfilling the advantage of working ith fast sped and high accuracy.
Japan yaskawa servo motor ensures machine to run with fast speed ,low noise ,and high posiion accuracy.
unique auto tool changer system can change tools alternativey ,special tool sensor to compensate the tolerance of tool length.
tool magazine standard capacity of 8 tools,(option: more than 8 tools). changing tools only takes 8 seconds.
applicaions
wood industry: stereo wave plate processing ,cabinet doors,solid wood doors ,craft wood door ,paint free door,folding screen, craft window, shoe-cleaning machine,game cabinet,mahjong table ,computer table, and panel-type furnture's assiatance processing.
advertisement inustry: advertisment lbel and logo ,acrylic cutting and blister molding, multi AD. material and decoration products processing.
mold  industrial : engrave on material like brass ,al ,ad iron t make metal mold. and it can engrave on artificial marble,gravel plastic board ,pvc pipes ,wood ,and alike non-metal mold.
technical paraments
descripton   RJ-1325 side linear ATC
working area : 1300x2500x300mm
max traveling speed : 60000mm/min
max engraving speed :25000mm/min
transimission : x,y axis high precission rack gears,z axis imported ball screw
x,y,z guide rails : HIWIN square rail (option german)
accuracy : 0.08/300mm
control system : DSP  control system
spindle motor: 5.5kw domestic water coolig (optional : italy HSD 9kw air cooling )
tool magazine and tools NO.: slide linear,8 tools
tool diameter : 2-20
fixing method : T-slot aluminum & vacuum abosorption
motor/driver : Japan YAKAWA servo system 850w

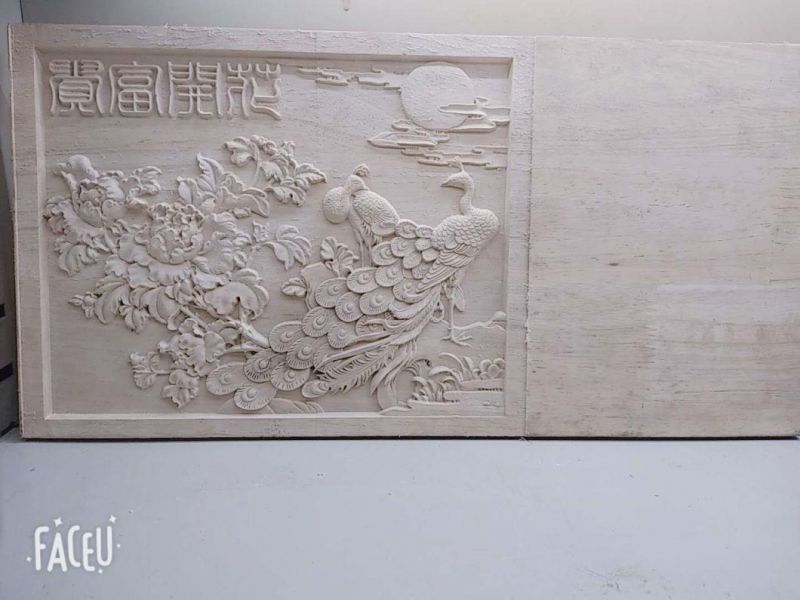

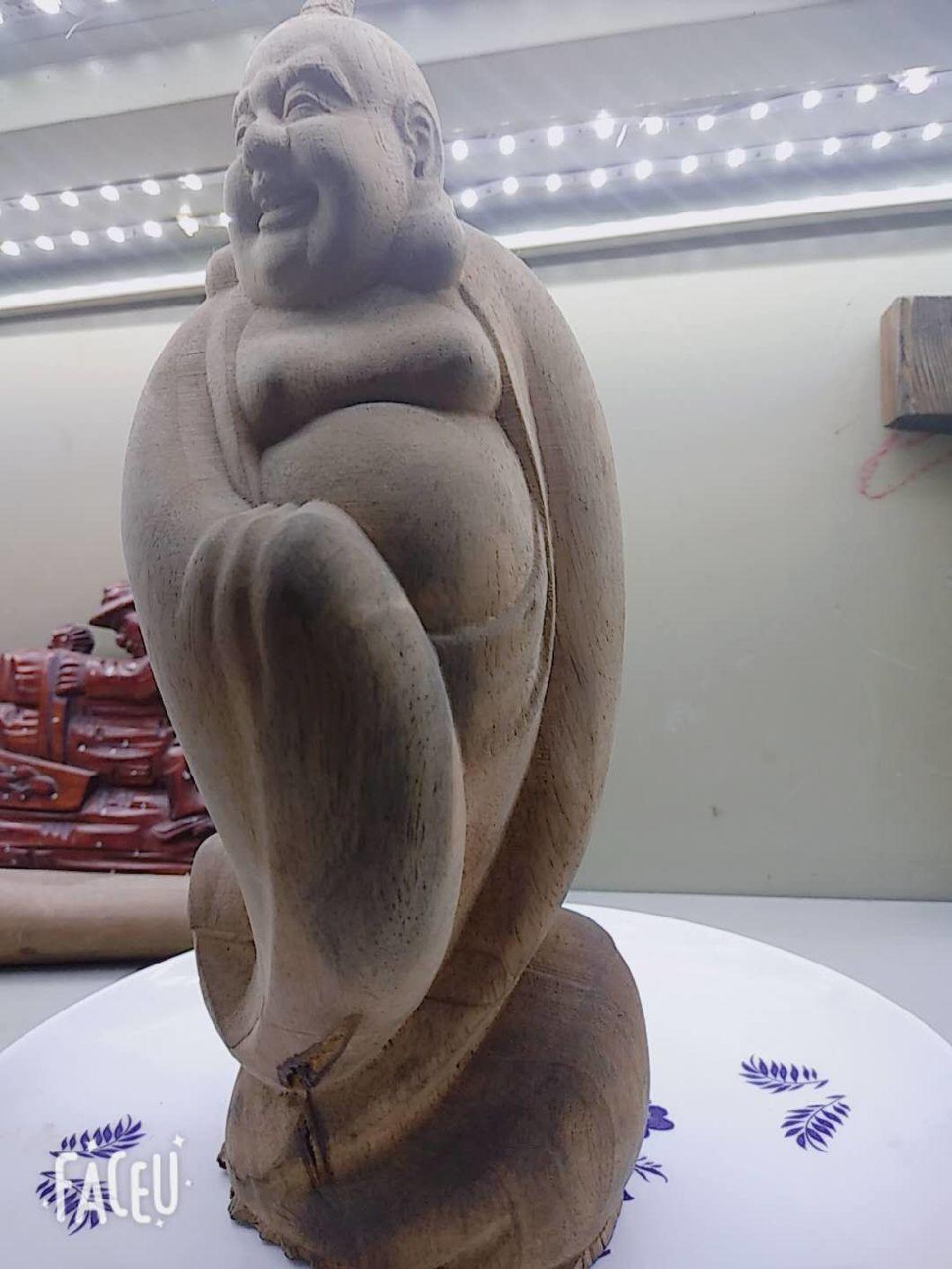

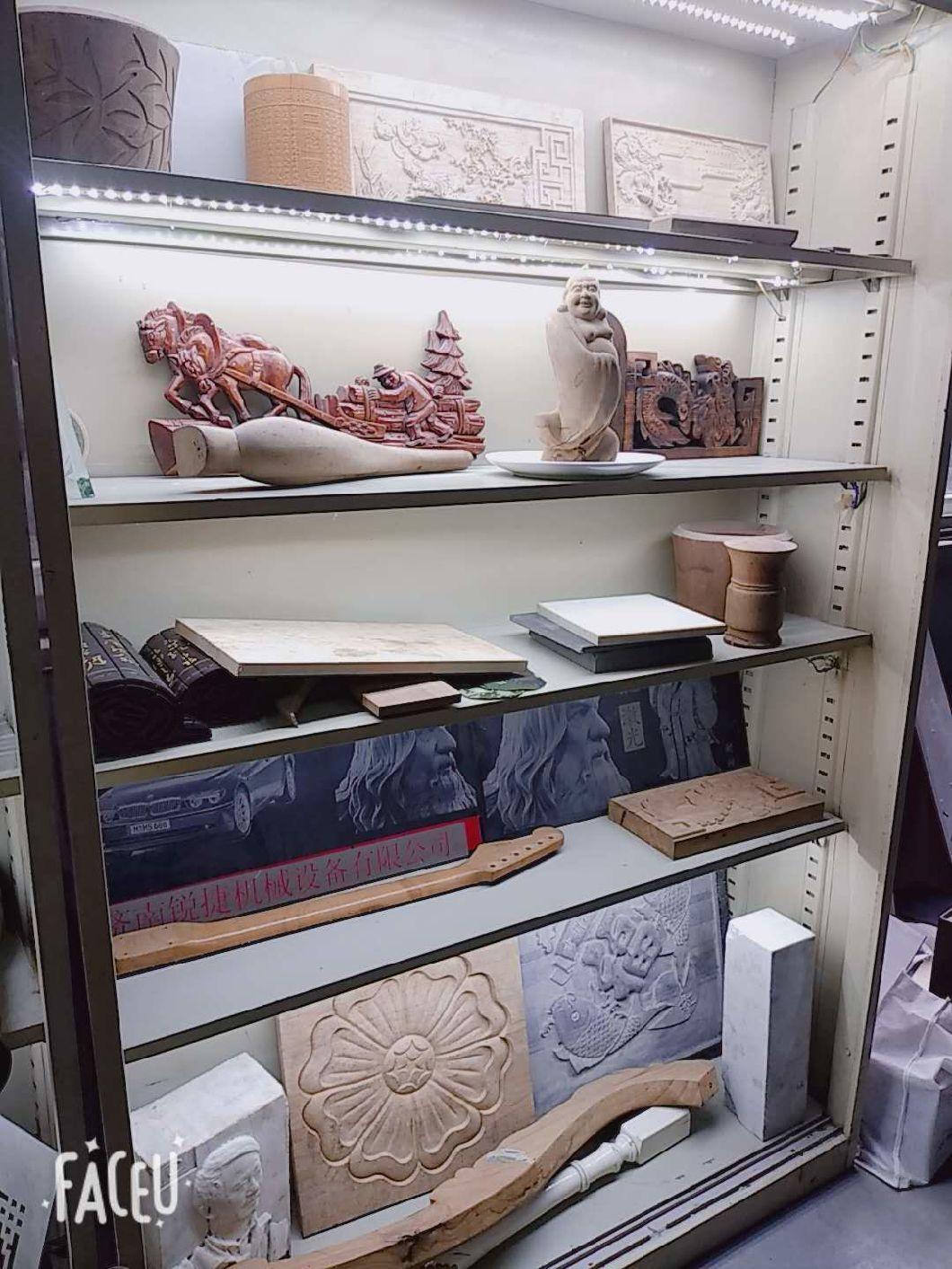

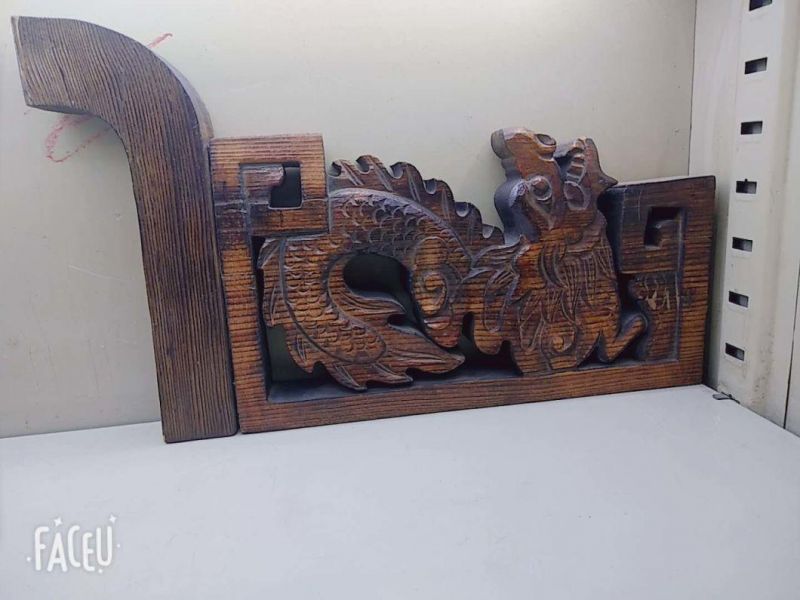

machine simples











company

Jinan Ruijie Mechanical Equipment Co., Ltd. was established in 2002.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes:CNC Router,Laser Engraving  Machine,Laser Engraving and Cutting Machine,Cutting Plotter,Marble CNC Router,Plasma Metal Cutting Machine and so on.

Jinan Ruijie Mechanical Equipment Co., Ltd. imports the high quality manufacture technology to improve our products for our customers.

Our company is famous for high quality and better after-sale service as the competitive price.

Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.

Our company has set up more than 20 sale and service departments around China which can offer our customers the service of design, fixing, training, maintenance and so on. As the sale in China, our products exports around the world including Southeast, Middle East, Africa, European and U.S.A.

Our company managing idea is improving the high quality products for customers.

We are searching the distributors around the world. Hope we can cooperate for the world market.

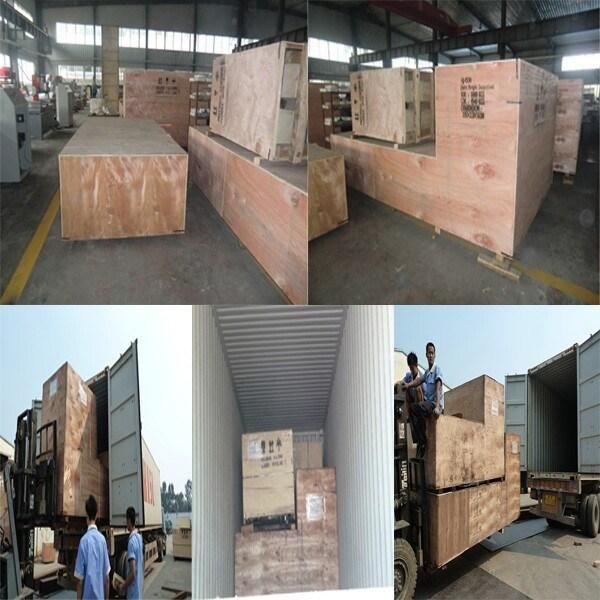

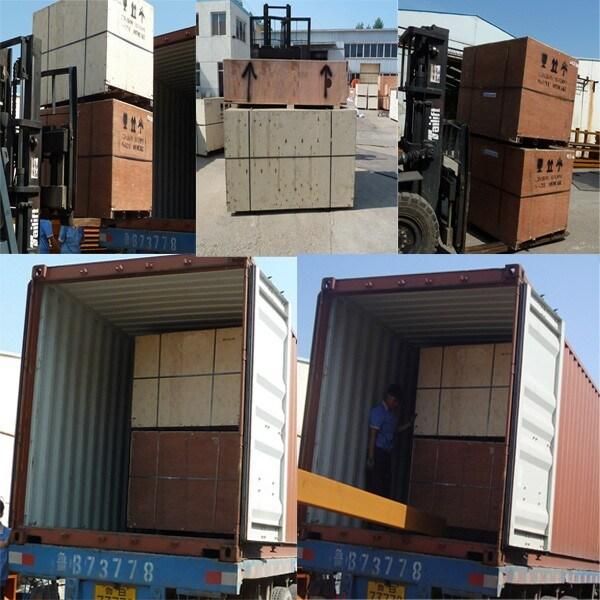

packing




contact us
Jinan Ruijie Mechanical Equipment Co.,Ltd
Factory Add :     Daliu Sect,North of 308 National Highway,Daqiao Town, Tianqiao Zone,
                           Jinan City,Shandong Province,China
Mobile:  86-15168871031

QQ     :             18396827503
