• Customized：Customized
• Condition：New
• Color：Multi Color
• Capacity：800-2500 Kg,H
• Power(W)：22kw
• Transport Package：Standard Packaging
• Specification：1700*1000*1100mm
• Trademark：EFFORT
• Origin：Henan, China (Mainland)
• Production Capacity：60 Sets Per Month as Per Order Quantity

Basic Info.

Customized Customized Condition New Color Multi Color Capacity 800-2500 Kg/H Power(W) 22kw Transport Package Standard Packaging Specification 1700*1000*1100mm Trademark EFFORT Origin Henan, China (Mainland) Production Capacity 60 Sets Per Month as Per Order Quantity

Product Description

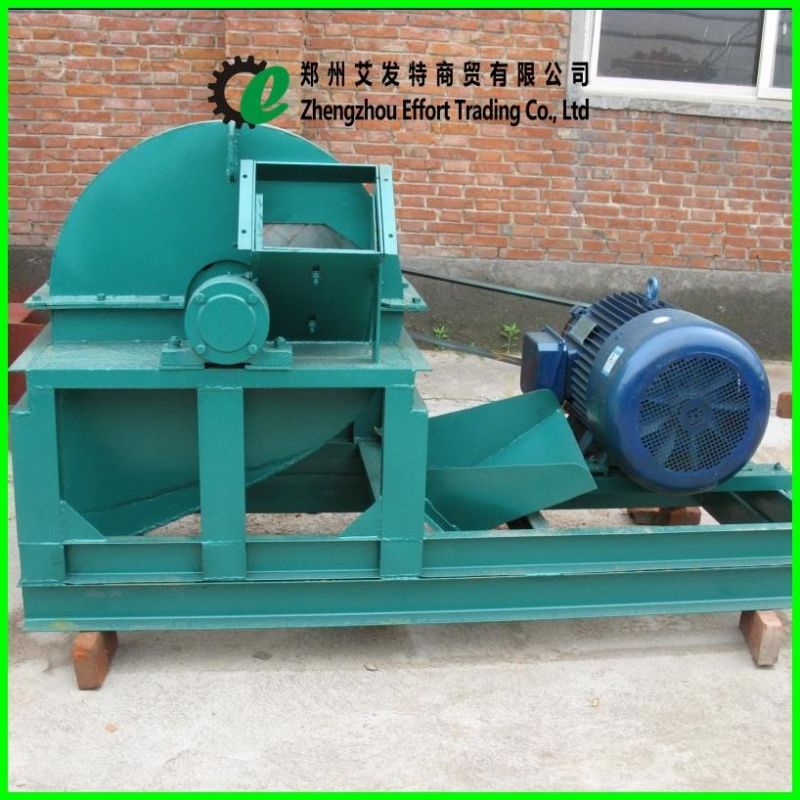

Wood sawdust maker wood crushing machine

1. Application:

Sawdust machine also named wood crushing machine and wood crusher, it can crush wood logs,wood block and wood waste into sawdust and granular with different fineness.





2. Characteristics:

This type of sawdust machine made by us is energy-saving type and easy to operate. It is designed and developed according to industrial requirements. It belongs to wood crushing and pulverizing machine. It is finely processed, high efficiency and environmental protection type. It is optional for electricity and diesel so it can meet buyers' different requirements.

3. Working principle:

It uses blades to cutting and high speed airflow to reduce the wood into sawdust and granular with different fineness. While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates st the same direction as rotor. As the blades rotate and cut, the airflow crushes the material at the same time. In this way, the speed of sawdust output can be increased.

4. Specifications of Sawdust Machine

Model of machine	EFT700	EFT800	EFT1000	EFT12000
Diameter of cutter head(mm)	700	800	1000	1000
Quantity/block of blade	4	6	6	6
Length of blade(mm)	200	230	300	300
Dimension of feeding opening(mm)	160*160(side) 250*500 (Top)	200*200(side) 300*600(top)	240*240(side) 350*600(top)	300*300(side) 450*800(top)
Rotary speed of main shaft(r/min)	2600	2100	2000	1800
Main frame power(Kw)	22	30	55	90
Fan power (Kw)	5.5	7.5	7.5	11
Electricity specification	380, 50HZ	380, 50HZ	380, 50HZ	380, 50HZ
Output(kg/h)	800-1000	1000-1500	1500-2500	2500-3500
