• Customized：Non-Customized
• Condition：New
• Color：Iron Grey
• Bearing：4
• Voltage：220V
• Rated Power：0.8-4.5kw
• Current：1.8A
• Rated Speed：24000rpm
• Frequency：400Hz
• Transport Package：Export Carton
• Specification：CE and ISO
• Trademark：JKONGMOTOR
• Origin：Changzhou, China
• HS Code：8501109990
• Production Capacity：100000PCS,Month

Basic Info.

Customized Non-Customized Condition New Color Iron Grey Bearing 4 Voltage 220V Rated Power 0.8-4.5kw Current 1.8A Rated Speed 24000rpm Frequency 400Hz Transport Package Export Carton Specification CE and ISO Trademark JKONGMOTOR Origin Changzhou, China HS Code 8501109990 Production Capacity 100000PCS/Month

Product Description

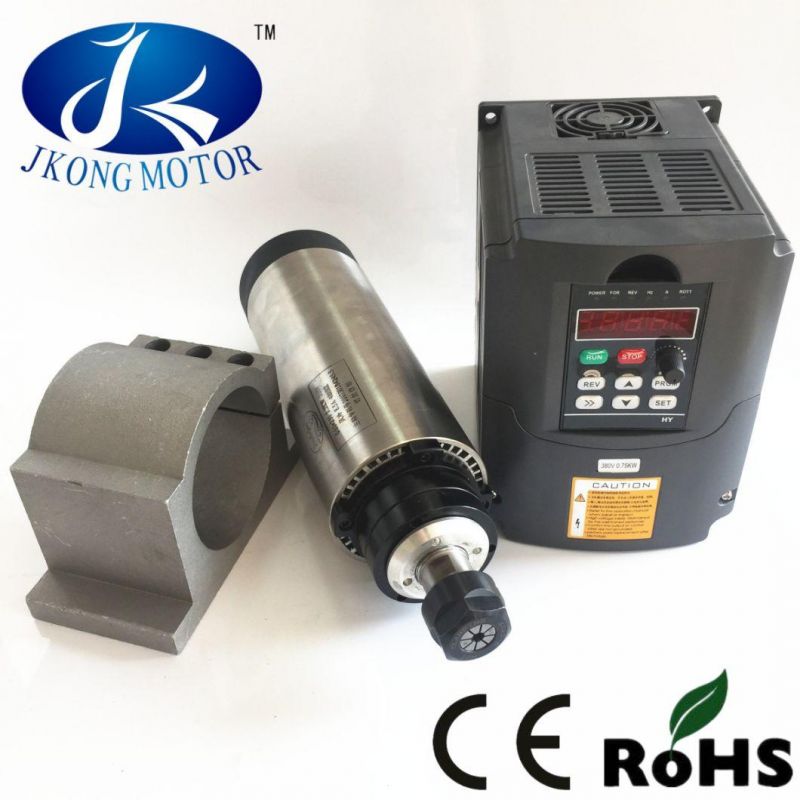

0.8kw water cooling spindle motor,
1.5kw water cooling spindle motor,
2.2kw spindle motor with low price, high quality
3kw spindle motor
4.5kw spindle motor



Electrical specification:

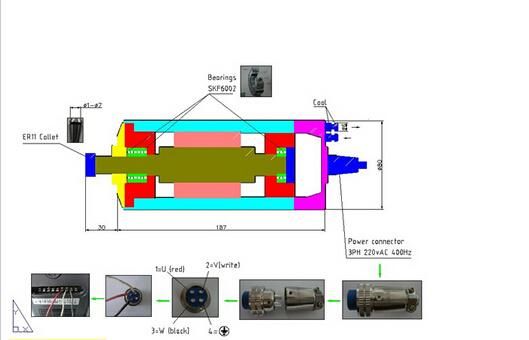

1.5KW HY80-24Z/1.5  (AOX-D80-1500)
Pls see our 1.5KW motor spindle Technical paramer :

Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.

Voltaget: AC 220v (we can custom a variety working voltage )

speed:0-24000rpm

Germany Imported SKF6002 Bearing: Three times useful time than ordinary spindle motor

Frequencies: 400Hz

radial runout:0.01mm

Proper alignment: 0.025mm (2.5 microns)

The ER11 cartridge, standard layout 6mm, need choose and match 3.175mm, 4mm, 6.35mm

Torque: 0.61Nm

nut model: ER11-A(B) (filament)

coolant conditions: Water cycle coolant conditions Power

source connection: Selects the GX16 waterproofing aviation connection, in the connection has 1,2,3,4 labelling, 1,2,3 meet the frequency changer power source separately, 4 meet the frequency changer grounding lubrication

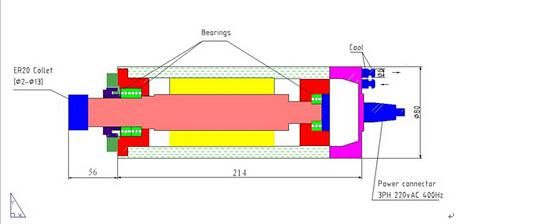

2.2 KW   HY80-24Z/2.2

Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.
Voltaget: AC 220v
Frequencies: 400Hz
radial runout:0.01mm
Proper alignment: 0.025mm (2.5 microns)
The ER20 cartridge
nut model: ER20-A(B) (filament)
coolant conditions: Water cycle coolant conditions Power
source connection: Selects the GX16 waterproofing aviation connection, in the connection has 1,2,3,4 labelling, 1,2,3 meet the frequency changer power source separately, 4 meet the frequency changer grounding lubrication
application: Advertisement engraving machines,wood engraving machine
CNC machine , small machining center, supercentrifuge and so on
