RMS9323 Good China Quality Solid Wood Double-Side Planer Saw Machine
Qingdao Samac International Trading Co., Ltd.- Type：Double-sided Pressure Planer
- Working Depth：＞200mm
- Working Width：000-640mm
- Drivetrain：Worktable Elevating Drivetrain
- Enter Method：Electric
- Motor Power：5-10Kw
Base Info
- Model NO.：RMS9323,9326
- Cutter Shaft：4
- Spindle Speed：5000r,Min
- Process Type：Medium-Sized Processing
- Certification：CE, ISO
- Transport Package：Standard Packing
- Trademark：SAMACH
- Origin：China
- HS Code：99
- Production Capacity：50000sets,Year
Description
Basic Info.
Model NO. RMS9323/9326 Cutter Shaft 4 Spindle Speed 5000r/Min Process Type Medium-Sized Processing Certification CE, ISO Transport Package Standard Packing Trademark SAMACH Origin China HS Code 99 Production Capacity 50000sets/YearProduct Description
RMS9323 Good China Quality Solid Wood Double-Side Planer
Specifications of double side planer
| models | RMS9323 | RMS9326 |
| Machining width | 20-230mm | 20-260 |
| Machining thickness | 10-75mm | 10-80 |
| Min. processing length | 630/450mm | 550/300 |
| saw spindle diameter | 40mm | 40mm |
| Saw spindle speed | 3600rpm | 3600rpm |
| Diameter of planer shaft | 40mm | 40mm |
| Shaft speed of planer | 6000r/min | 7000rpm |
| Total power of motor | 34.82kw | 36KW |
| Bottom tool | 4kw | 4KW |
| Upper tool | 5.5kw | 5.5KW |
| Lower saw shaft motor | 22kw | 22KW |
| Feed motor | 2.2kw | 3KW |
| Beam lifting motor | 0.75kw | 0.75KW |
| Gas pressure | 0.4-0.6mpa | 0.4-0.6mpa |
| Diameter of suction port | 2x120mm | 3*Φ150 |
| Overall size | 3600*1300*1500mm | 3200*1250*1680mm |
| Machine tool weight | 2340kg | 2800kg |
Details

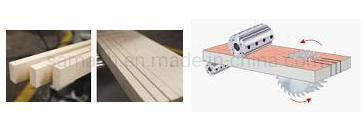

1.High efficiency large-scale planing saw processing of solid wood materials such as wall panels,
anti-corrosion templates.
2. Multiple sets of imported spiral cutter for fine planing, stable performance, high precision, smooth
and delicate workpiece surface.
Packing & Delivery of SAMACH woodworking Machines
LIGNA GERMAN, World Top Level Exhibition of Woodworking Machinery.
Samach'S Services and dominant:
1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.
2.Knowing China and world markets well, offer professional soluttions.
3.Fast market reaction, guarantee our partners always in front edge.
4.Supeiror Guarantees,quality of our machine and sell-after service.
5.OEM/ODM are available.
6.Principle: One cooperation, forever partners.
Contact us and Enjoy our Happy Coopperation Together. Thank you for your time!
