• Model NO.：JCW1325R-10H
• Certification：CE, ISO, BV, TUV
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Life Time Technical Support
• Name：Cmulti Head Rotary Lathe Machine, Wood Pillar Engr
• Function：Produce 3D Furniture Legs, Sculptures, Handrails
• Working Size：1200mm Length*200mm Diameter*10 Rotaries
• Spindle Power：10PCS*2.2kw Air Cooling Spindle
• Table Type：Table Movement
• Oil System：Automatically Lubrication System
• Working Mode：Servo Motor and Driver
• Working Voltage：3 Phase AC380V ,220V
• Operating System：4 Axis DSP Controller
• Transport Package：Wooden Case Packages
• Trademark：CHAODA
• Origin：China
• HS Code：8465990000
• Production Capacity：300sets,Year

Basic Info.

Model NO. JCW1325R-10H Certification CE, ISO, BV, TUV Customized Customized Condition New Color Customized After-sales Service Life Time Technical Support Name Cmulti Head Rotary Lathe Machine, Wood Pillar Engr Function Produce 3D Furniture Legs, Sculptures, Handrails Working Size 1200mm Length*200mm Diameter*10 Rotaries Spindle Power 10PCS*2.2kw Air Cooling Spindle Table Type Table Movement Oil System Automatically Lubrication System Working Mode Servo Motor and Driver Working Voltage 3 Phase AC380V /220V Operating System 4 Axis DSP Controller Transport Package Wooden Case Packages Trademark CHAODA Origin China HS Code 8465990000 Production Capacity 300sets/Year

Product Description

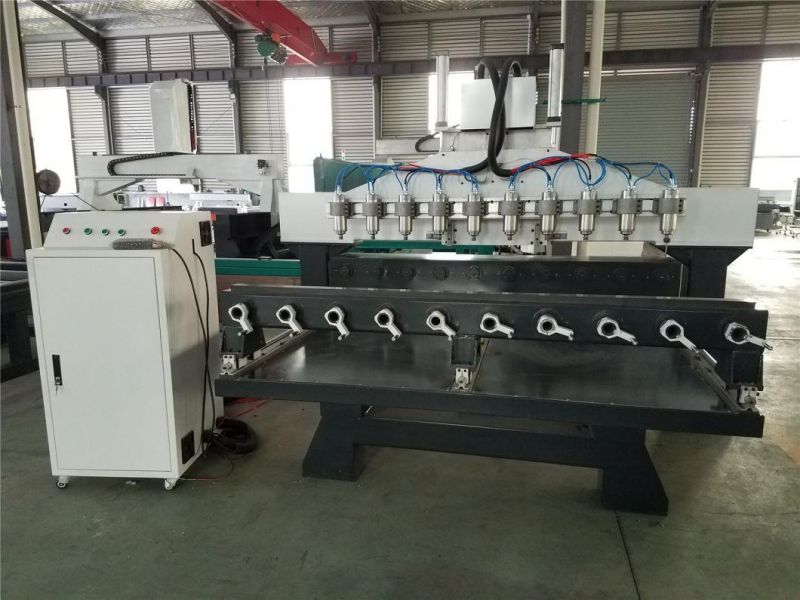

Multi head rotary lathe machine, wood pillar engraving cnc router, 4 axis gun making

• This item is very suitable for furniture bulk production, multi heads can work at the same time, also can work alone, many times increasing efficiency.
• Table movement, long time use no distortion, the more precise positioning accuracy.
• Advanced 4 axis Ncstudio control system, very stable and convenient to use.
• Well compatibility in software: all kind of 3D carving softwares.
• We can make Multi heads machine with any working size according to customers' specific requirements.
• Except furniture legs, it also can process 3d sculptures and complex artworks, can easily engrave 360 degree Human body, Buddhist statue, sculptures and other art works.

Model No.	JCW1325R-10H 4 Axis
Rotary Working Size	1200mm ( L)×200mm (Dia.)×10 rotaries
XYZ structure	All Ball screws,Taiwan HIWIN linear square rail
Spindle Power	10pcs*2.2kw water cooling spindles
Table Type	Table movement
Spindle Rotating	0-24000rpm
Operating System	4 AXIS DSP
Working Mode	Leadshine servo motor and drivers
Inverter	Fuling Inverter
Voltage	AC380±15%,50HZ
Oil System	Automatically Lubrication System
Command Code	G code(*uoo,*nc,*mmg, *plt)
Net Weight	4200kg
Training	2-3days free machine training and software training in our factory

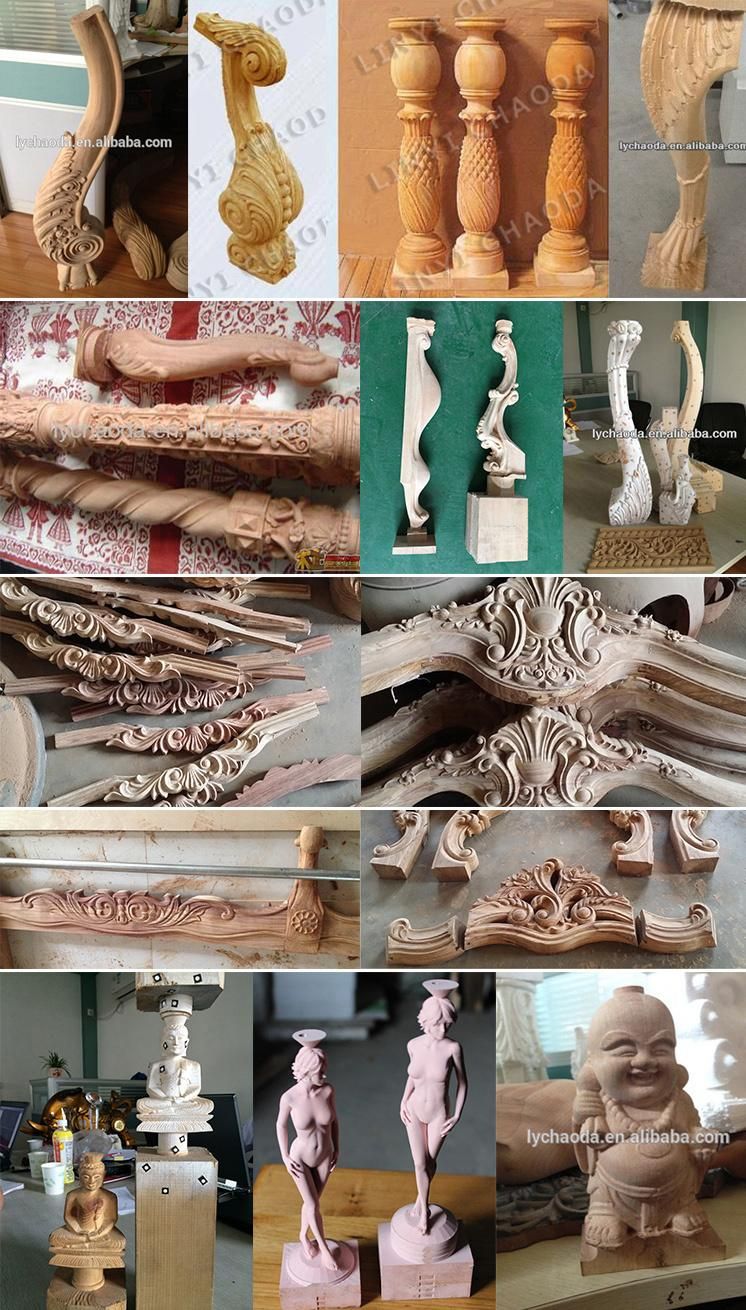

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair

handrails, prop guns,wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.


1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
