• Model NO.：S300
• Drive System：Yaskawa, Delta Servo Motor
• Transport Package：Plywood Case Package
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. S300 Drive System Yaskawa/ Delta Servo Motor Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 8458110090 Production Capacity 300sets/Month

Product Description

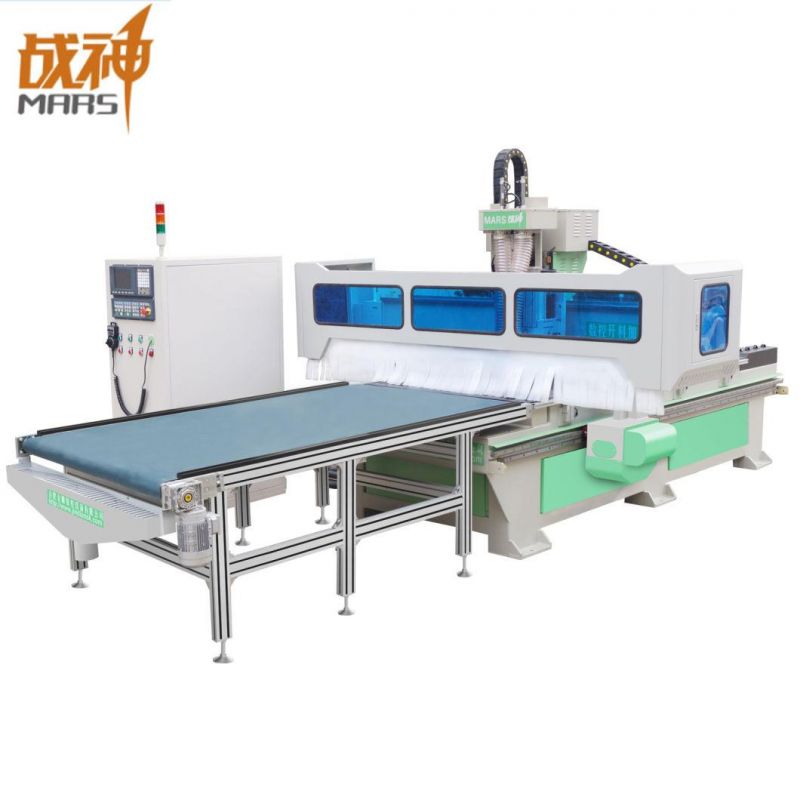

ATC Drilling and Cutting CNC Machine/CNC Router Machine/Engraving Machine

Keywords: 15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brands: Mars, Golden Eagle, Boiro
                   Technicist who go abroad to offer after-sale service





Parameters


Model	S300 ATC Drilling and Cutting CNC Center
Working Stoke	1230*2440*50mm
Body Structure	Heavy-duty thicken steel structure, w/ tempering
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Drilling Head	Italy HSD 5+4 gang drill
Tool Magazine	Carousel, 8pcs
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Transformer	630VA
Vacuum Pump	5.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	3000KG
Machine Size	3700*3100*1900mm

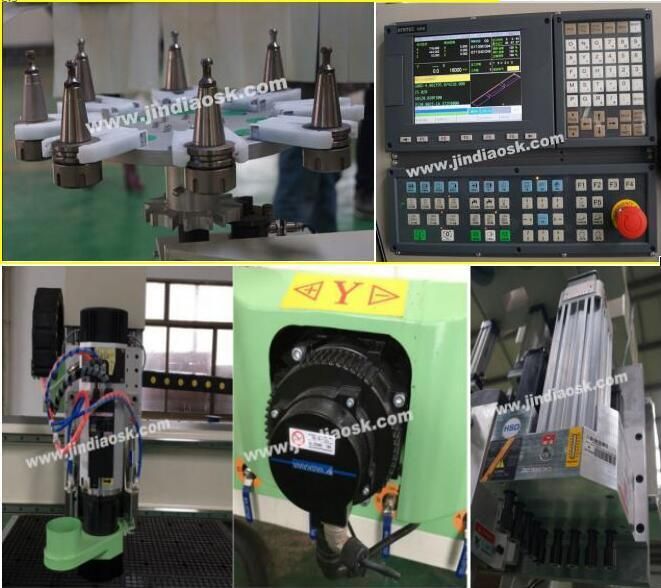

Main Parts





Applicable Scope:

Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings
Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.




Package and Shipment:


 Company show

Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.




Certificate




FAQ:

Q1: Could I visit your factory ?
A1:Of course,Yes! Warmly welcome all customer from all over the world to visit our factory.

Q2: Before order Can you send a edm drill machine sample for reference?
A2: We are glad to send edm drill machine samples for your inspection. Standard samples can be free, but you may need to pay the express fees.

Q3:What's your MOQ?
A3:Our MOQ is one set for each machine
