Three Axes Ball Screw CNC Machining Center CNC Router Machine for Carbinet Door

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO
  • CNC or Not:CNC
  • Voltage:380V
  • Size of Equipment:3700*2300*2400mm
  • Net. Weight:3000kgs

Base Info

  • Model NO.:S400-K2
  • Transport Package:Plwood Boxes
  • Specification:1300*2500mm
  • Trademark:Mars
  • Origin:China
  • HS Code:84659100
  • Production Capacity:3000 Sets Per Year

Description

Basic Info.

Model NO. S400-K2 Transport Package Plwood Boxes Specification 1300*2500mm Trademark Mars Origin China HS Code 84659100 Production Capacity 3000 Sets Per Year

Product Description

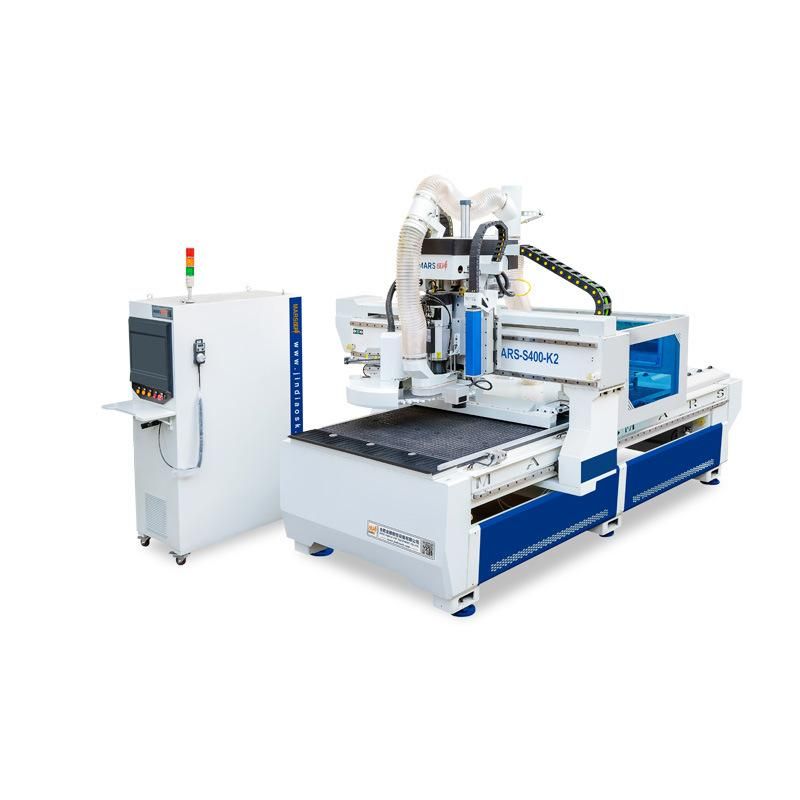

S400-K2High Precision 3 Axis Ball Screw CNC Machining Center
Three Axes Ball Screw CNC Machining Center CNC Router Machine for Carbinet Door
 1,Product Parameters
Control SystemSyntec/Delta system
Drive SystemYaskawa/Delta servo motor
Spindle 9KW ATC spindle; 0 ~ 24000 rpm/min
Tool Magazine40pcs linear type tools magazine
Max.Travelling Speed80*80*30m/min (X/Y/Z)
Vacuun Pump Power7.5kw Water cycle
Lubrication SystemAutomatic
Transmission ModeThree Axes all imported high precision screw drive
Running CommandsG code, F/S command compatible
XY Axis Servo MotorSyntec AC servo
Z Axis Servo MotorSyntec  servo with holding brake
Adsorption MethodCavity vacuum adsorption
Pushing deviceAutomatic pushing and dust collection,Dockable unloading platform
Positioning Devicecylinder positioning
Tooling SettingAutomatic tooling setting
Re-Positioning Accuracy±0.05MM
Guide RailTaiwan imported large size square linear 45 guide rail
Ball ScrewJapan imported NSK high precision ball screw
ReducerPlanetary
Frequency ConverterMARS/Zoncn/ Fuling optional
CableMars drag chain special use cable
ElectricDelixi

2,Application scope
ProcessingCutting+Milling+Drilling+Slotting
MaterialArtificial stone, wood, bamboo, marble, organic board, color plates and other materials
ApplicationCabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

3,Main parts
Three Axes Ball Screw CNC Machining Center CNC Router Machine for Carbinet Door
4,Performance feature
1Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,it can also be used for home decoration or cabinet door multi process modeling processing
2Optional auxiliary feeding function for panel furniture industry,automatic unloading,the automation degree and production efficiency of the equipment are further improved
3he equipment body welded by thick steel pipe,after high temperature tempering,Formed by CNC gantry machining center at one time,the structure is stable and never deformed
4The three-axis adopts the imported brand square linear guide rail, and the three-axis high-precision screw drive enables the machine tool to be stable and high-speed fixed operation
5The equipment adopts high-strength phenolic board / Engineering high-strength material rectangular table, multi-point adsorption, six zones, which can switch the size of the board to enhance the effective adsorption capacity
6Humanized design of machine control interface,fool-style operation, the operator can be on duty after simple training without skilled workers
