• Model NO.：FX1325,1530
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm,1500*3000mm
• Spindle Power：6kw
• Warranty：2 Years
• Delivery Time：in 10 Days
• Transport Package：Wood Crate
• Specification：1325,1530
• Trademark：FLYING
• Origin：China
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FX1325/1530 Customized Customized Condition New Color Customized Working Area 1300*2500mm/1500*3000mm Spindle Power 6kw Warranty 2 Years Delivery Time in 10 Days Transport Package Wood Crate Specification 1325/1530 Trademark FLYING Origin China Production Capacity 100PCS/Month

Product Description

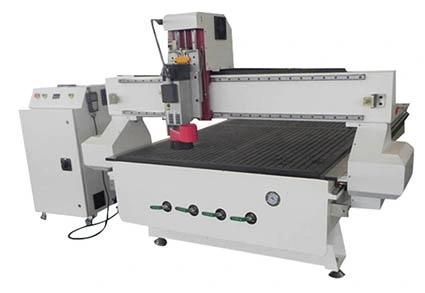

wood cnc router FX1325 1530

 Features:
1. T-Slot machine body,stronger casting steel gantry, whole machine is much more stable and durable!  ( solid and reliable, no distortion, carrying weight, stability).
2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
3. Two motors drive system for Y axis.
4. Professional vacuum system, strong adsorption capacity.
5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
6. Advanced DSP numerical control system .It has the characteristic of operating with the handle, large screen display ,convenient operation and easy maintenance .It is designed with more human nature.
7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.


Specifications:

Model	FX1325/1530
Frame	T-Slot Machine Body or Thicken steel square tubes up to 8mm
Working Table	Bakelite vacuum T slot /PVC aluminum T slot
Working Area	1300*2500*200mm,1500*3000*220mm
Guide rail	X,Y,Z axis Hiwin 20mm  (Linear Guuide on 3Axis,Rack and Pinion on  Y,Ball screw on Z)
Spindle	6kw air-cooling spindle
Collet	ER20 / ER25
Motor	Servo motor/ Stepper motor
Working speed	30m/min
Control system	DSP/ NC Studio/ Mach3/ Syntec control system
Warranty	24 months
Weight	2200kg
Package Size(L*W*H)	3.2*2.0*1.8m
Interface	PCI/MC; USB
Optional	Dust Collector+Dust Collector hood
Positioning accuracy	0.05mm
Repeatability	+ 0.05mm
Voltage	220V/380V
Vacuum pump	Watering or free-oil type
Command language	G code

Applications:
1. Woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2. The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3. The die-board industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry

SAMPLES SHOW:
