• Model NO.：KT-M-20171128
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Semiautomatic
• Certification：CE, ISO, FDA
• Transport Package：Standard Export Packing
• Specification：about 40000 kg
• Trademark：metro
• Origin：China
• HS Code：847930000
• Production Capacity：8 Sets,Year

Basic Info.

Model NO. KT-M-20171128 Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO, FDA Transport Package Standard Export Packing Specification about 40000 kg Trademark metro Origin China HS Code 847930000 Production Capacity 8 Sets/Year

Product Description

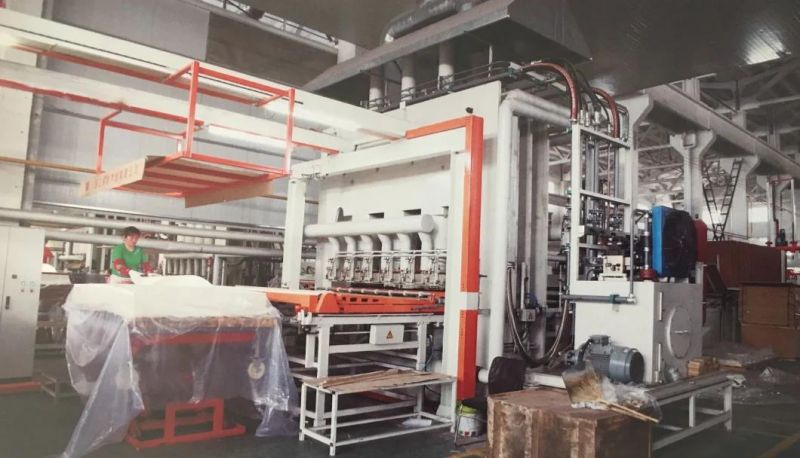

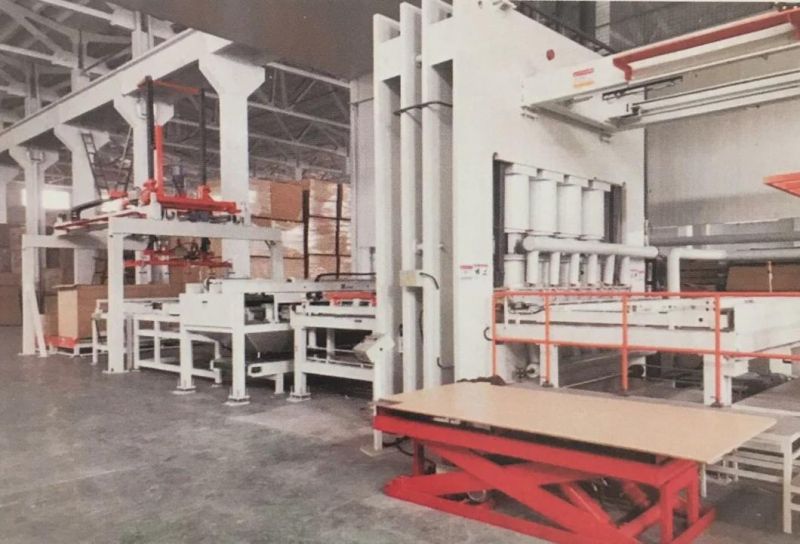

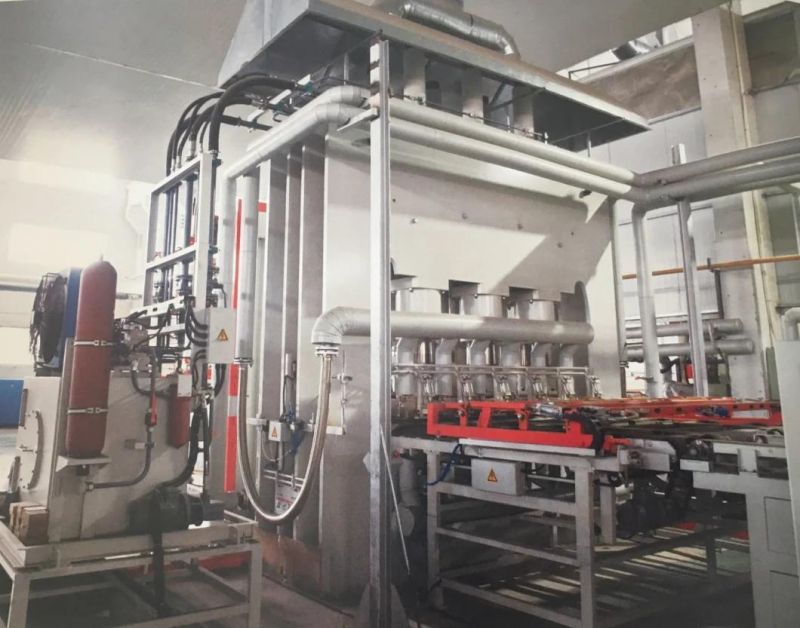

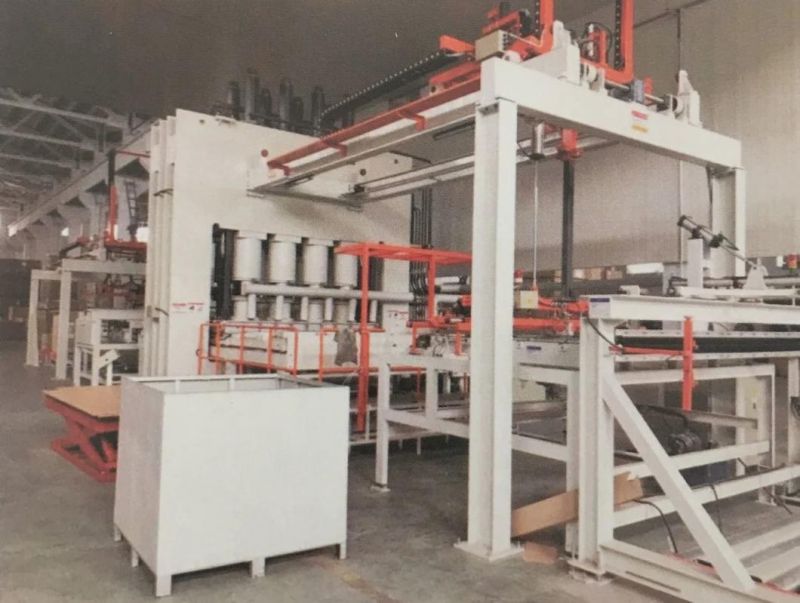

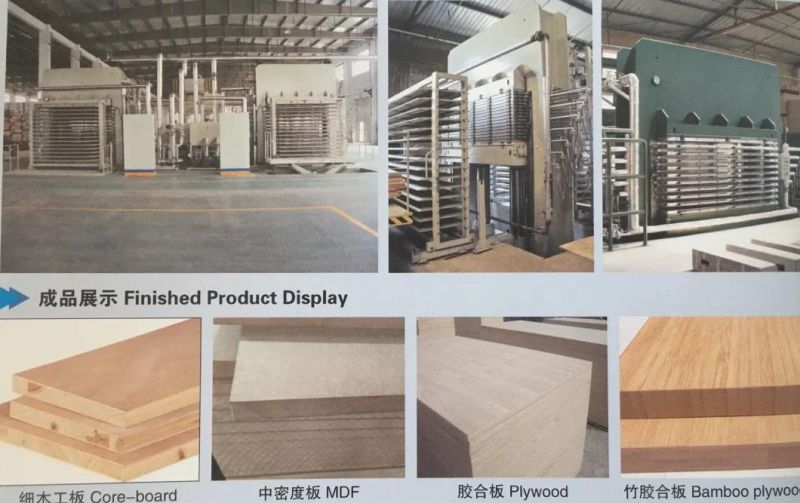

PHOTOS SHOW:








 SPECIFICATION:

Model	KT4800	KT6800	KT71000
Annual Output	1,000,204m2	1,500,307m2	2,187,948m2
Size of Raw Panel	1220x2440	1830X2440	2135X3050
Panel Thickness	6-40mm	6-40mm	6-40mm
Total Power	80kw	100kw	140kw
Consumption of Compressed Air	1.1 m3/H	1.1 m3/H	1.1 m3/H
Air Volume of Exhaust	3800m3/H	3800m3/H	5300m3/H
Consume of Heat Quantity	20x104Kcal/h	30x104Kcal/h	50x104Kcal/h
Pressure	12000KN	15000KN	26000KN
Specify Press	25MPA	25MPA	25MPA
Dimension of Heating Plate	150/130X1400X2600MM	200/1500x2000x2600MM	240/260X2200X3200MM
Panel Surface Pressure	4mpa	3.4mpa	3.6mpa
Feeding and Reward Speed	90m/min	90m/min	90m/min

PRODUCTS INTRODUCTION:

1.  The portal frame is made by high-quality frame design,welding process, point through strict caculation, no deformation and high stability.

2. Multi-layer design, simple operatio, reliable performance, automatic control of tempeture and time, to ensure that hot plate temperature uniformity.

3. The hydraulic system for the rapid closure of pumping stations, advanced structure, low failure rate, large flow, pressure quicly, improve procuction efficiency.

4. This machine is widely used in plywod, block board, melamine panels and other decorative veneer.


CERTIFICATES:



SERVICES:

PRE-SALE SERVICES:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

SERVICES DURING THE SALE:

1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

AFTER SALE SERVICES:

1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
