• Model NO.：1325
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：(1530*3000mm, 2000*4000mm,1300*2500mm)
• Spindle：3.5kw Air Cooling Spindle
• Motors：Stepper Motor
• Table：Vacuum Table
• Spindle Speed：6000-18000rpm
• Dust Collector：Yes
• Delivery：15 Working Days
• Vacuum Pump：5.5kw
• Key Words：CNC Router
• Transport Package：Exporting Plywood Package
• Specification：CE
• Trademark：ZHONGKE
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. 1325 Certification CE Customized Customized Condition New Color Customized Working Area (1530*3000mm, 2000*4000mm,1300*2500mm) Spindle 3.5kw Air Cooling Spindle Motors Stepper Motor Table Vacuum Table Spindle Speed 6000-18000rpm Dust Collector Yes Delivery 15 Working Days Vacuum Pump 5.5kw Key Words CNC Router Transport Package Exporting Plywood Package Specification CE Trademark ZHONGKE Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/ Month

Product Description

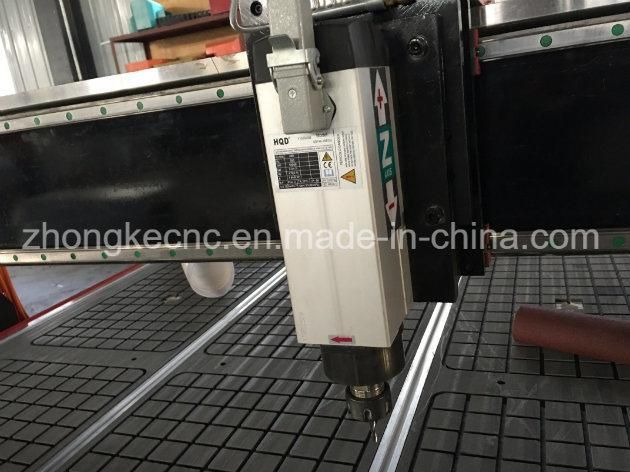

Machine photo:



Features:

1. Simple operation and installation, when delivery we will provide the videos for training.

2. More steady and strong equipped bed structure with thick steel.

3. Equipped with air cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.

4.The manual oiling lubricating system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.

6. Ncstudio control system, can be optional DSP control system.

7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.

8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.

9.Function of re-carving after break point and power off, reducing the materials wasting.

10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.



Specification

Model	ZK1325/1530
X,Y,Z axis working area	1300*2500*200mm (1500x3000mm)
Whole structure	Welded Steel gantry structure
Table surface	vacuum table with 5.5KW vacuum pump
X,Y,Z structure	Taiwan HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	water cooling spindle 3.2KW, can be optional bigger power
Spindle rotating speed	6000-24000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	stepper motor
Operating system	DSP control system, can be optional Ncstudio
Working voltage	380V 3 phase 50-60HZ
Software	UcancamV8 / Type3 / Artcam software (option)



Application

1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.

2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.

3.Instrument industry: 3d curved surface, shape cutting.

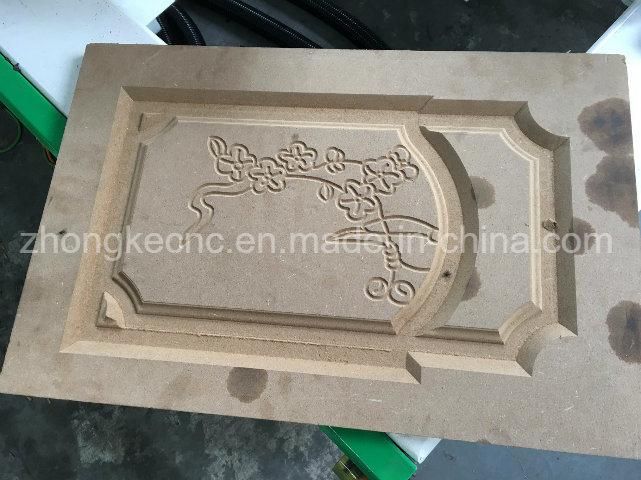

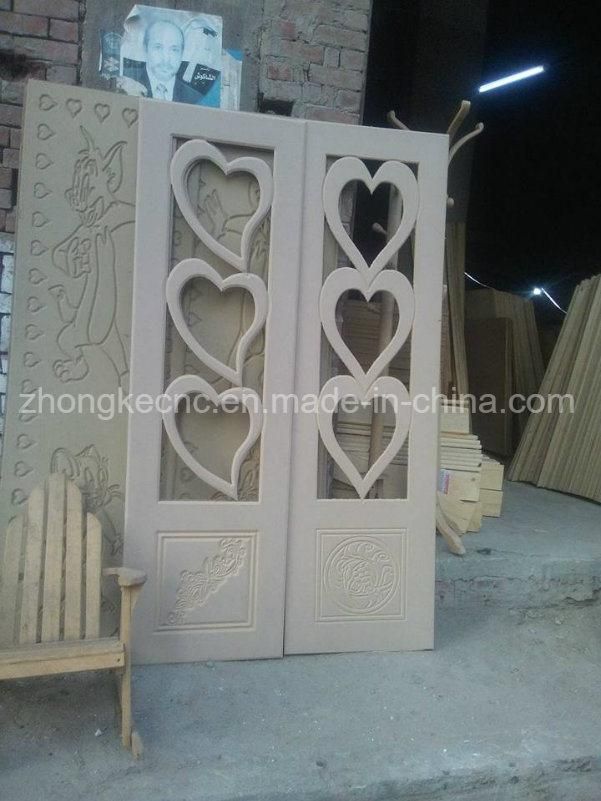

Sample photos:






If you are interested in our machine, welcome to contact with me
