Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine

Zhengzhou AG Machinery & Equipment Co., Ltd.
  • Type：Vertical Ring Die
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：CNC
  • Energy Saving：Energy Saving
  • Certification：CE

Base Info

  • Model NO.：LD-450
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Multi Color
  • After-sales Service：Online Service
  • Output：800-1000 Kgs,Hour
  • Motor：55kw
  • Power Supply：380V, 50Hz
  • Pellet Size：6mm 8mm 10mm
  • Weight：3000 Kg
  • Keywords 4：Wood Pellet Machine
  • Keyword 3：Biomass Pellet Mill
  • Keyword 1：Wood Pellet Mill
  • Keyword 2：Sawdust Pellet Mill
  • Keywords 5：Sawdust Pellet Machine
  • Transport Package：Wooden Case
  • Specification：1.4*0.75*1.55 m
  • Trademark：AG Mach
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：50 Sets Per Month

Description

ModelInner Dia of
Ring diePower
(Kw)Capacity
(ton/hour)Dimension
(m)Weight
(Kg)450 MX450mm55 kw0.8-1.0T1.4*0.75*1.552800550 MX550mm90 kw1.5-2T1.9*0.95*1.84500800 MX800mm132 kw2-3T2.5*1.35*2.170001000 MX1000mm160 kw3-4T2.65*1.45*2.18500
Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine

FEATURE of vertical ring die wood pellet machine:

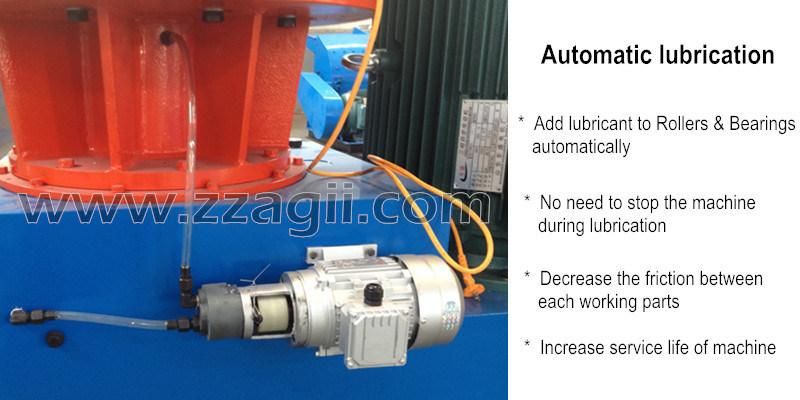

Gearbox:
Driving with high-precision gears, Automatic Lubricant pump keeps the gearbox working stability and warranty period

Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine

Vertical motor:
Mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working

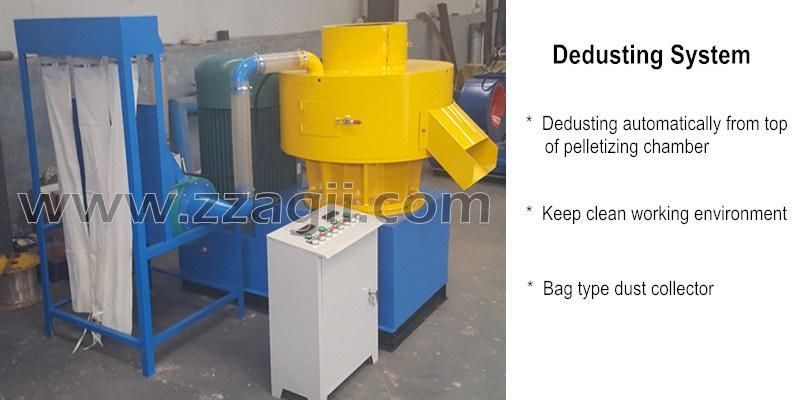

Blower system:
Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam

Working parts:
Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density,

The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.

Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine


Raw Material for making wood pellets:

Widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc..

Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine

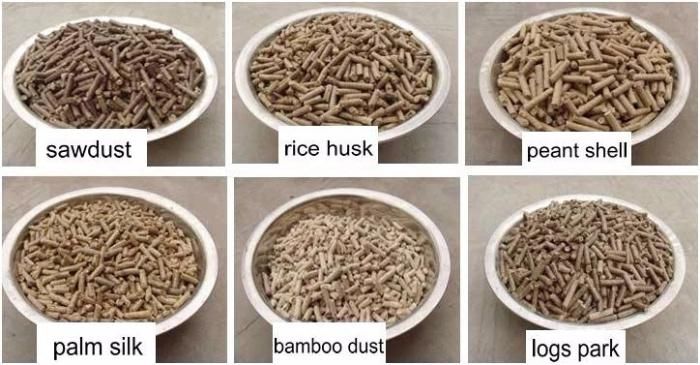

Wood Pellets:

Wood pellets are the most common type of pellet fuel and are generally made from compacted sawdust[3] and related industrial wastes from the milling of lumber, manufacture of wood products and furniture, and construction.[citation needed] Other industrial waste sources include empty fruit bunches, palm kernel shells, coconut shells, and tree tops and branches discarded during logging operations

Biomass Pellet Production Making Line Rice Husk Sawdust Wood Pellet Mill Machine

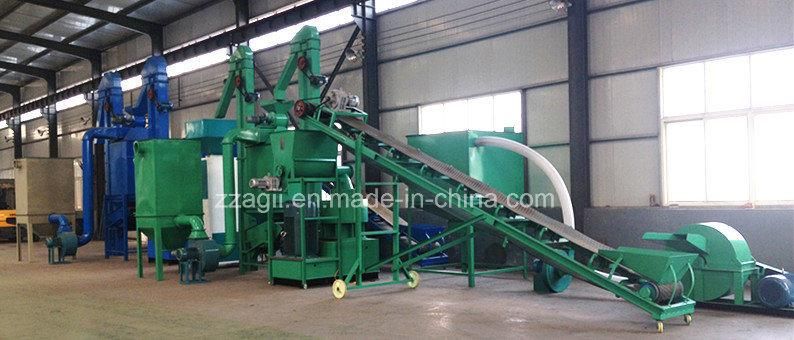

Wood Pellet Mill / Feedstuff Pelletizing Plant

1) wood chipping machine
2) wood crushing machine( wood crusher & hammer mill)
3) sawdust drying system
4) wood pellet mill machine
5) pellet cooler & screener
6) Packaging machine
