• Model NO.：MJ45A
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Length of Sliding Table：3200mm
• Cutting Width：1000 or 1300mm
• Motor Power：5.5kw(7.5HP)
• Main Spindle Speed：3000,4000,5000r.p.m
• Max Cutting Height：125mm
• Scoring Saw Spindle Diameter：20mm
• Overall Dimension：32500*3150*900mm
• Transport Package：Wooden Case
• Specification：2.8CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84569100
• Production Capacity：500sets,Year

Basic Info.

Model NO. MJ45A Certification CE, ISO Customized Customized Condition New Color Customized Length of Sliding Table 3200mm Cutting Width 1000 or 1300mm Motor Power 5.5kw(7.5HP) Main Spindle Speed 3000/4000/5000r.p.m Max Cutting Height 125mm Scoring Saw Spindle Diameter 20mm Overall Dimension 32500*3150*900mm Transport Package Wooden Case Specification 2.8CBM Trademark QDZD Origin Qingdao HS Code 84569100 Production Capacity 500sets/Year

Product Description

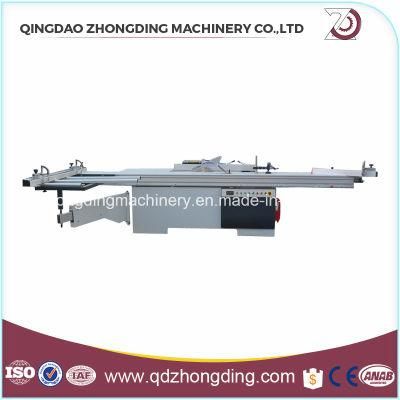

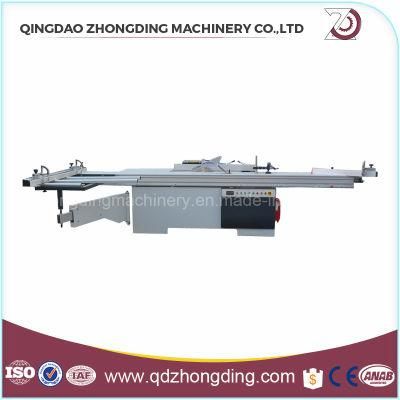

MJ45A Precise panel saw

Technical Specification:


Type	MJ45A
	Electric main saw blade lifting and angle adjustment
	Control panel is equal level with line of sight
Length of sliding table	3200 mm
	Electric adjustment saddle
Cutting width	1000 or 1300 mm
	Horizontal baffle plate extended to 3200 mm
Motor power	5.5 kw(7.5HP)
Main spindle speed	3000/4000/5000 r.p.m
Scoring saw spindle diameter	20 mm
Scoring saw power	1.1 kw
Overall dimesion	3250*3150*900

Feature:

1. It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.
2. Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display.
3. Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
4. The electric saddle:  Five- positioning of high-precision drive systems without regular  maintenance is like a built-in motor protected by aluminum profile.  There is emergency power-off function and then excluded squeezed danger.
5. Rating  5.5kw(7.5HP). Three speeds, 3/4/5000rpm, manually adjusted.

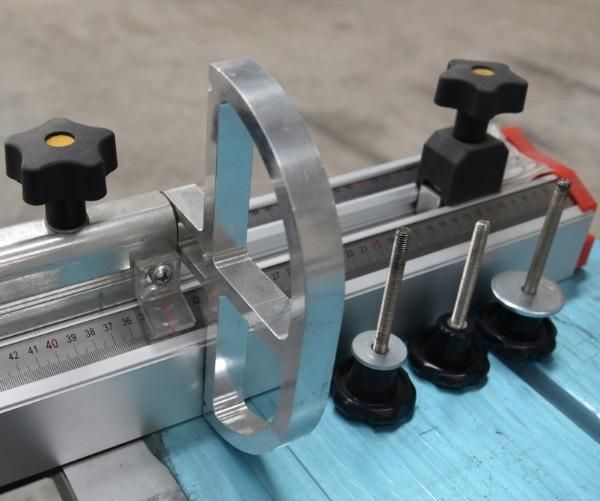

6. Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.

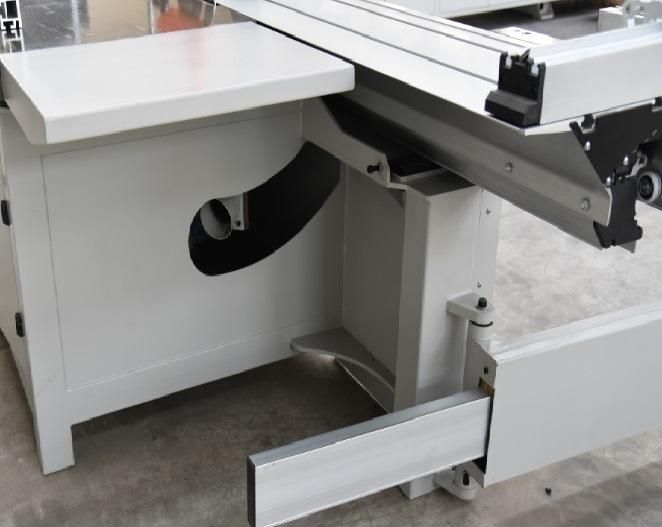

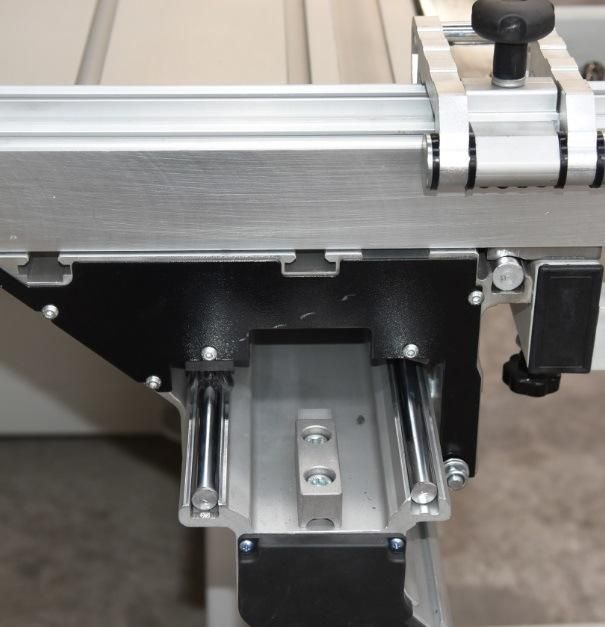

Product Details:






Certificate:

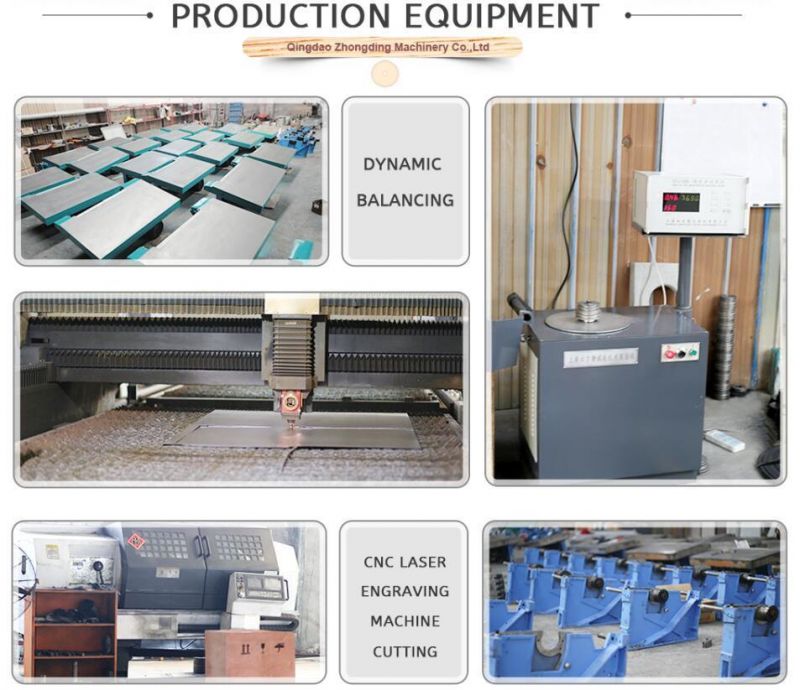

Our company:



Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
