Drying Machine for Plywood Face Veneer
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Horizontal Lathe
- Voltage：380V,415V
- Automatic Grade：Automatic
- Precision：High Precision
- Setting Mode：Floor-type
- Controlling Mode：CNC
Base Info
- Model NO.：BG183-G
- Power Source：Electric
- Certification：CE, ISO, FDA
- Heating Medium：Thermal Oil,Steam
- Veneer Thickness：0.5-1.2mm
- Working Decks：2
- Board Size：4*8FT,6*9FT,6*12FT
- Weight：27000kgs
- Drying Capacity：1.5m³;,Hour
- Transport Package：Container
- Specification：17300mm*4330mm*2900mm
- Origin：Shandong. China
- HS Code：8419320000
- Production Capacity：30sets,Month
Description
Basic Info.
Model NO. BG183-G Power Source Electric Certification CE, ISO, FDA Heating Medium Thermal Oil/Steam Veneer Thickness 0.5-1.2mm Working Decks 2 Board Size 4*8FT,6*9FT,6*12FT Weight 27000kgs Drying Capacity 1.5m³;/Hour Transport Package Container Specification 17300mm*4330mm*2900mm Origin Shandong. China HS Code 8419320000 Production Capacity 30sets/MonthProduct Description

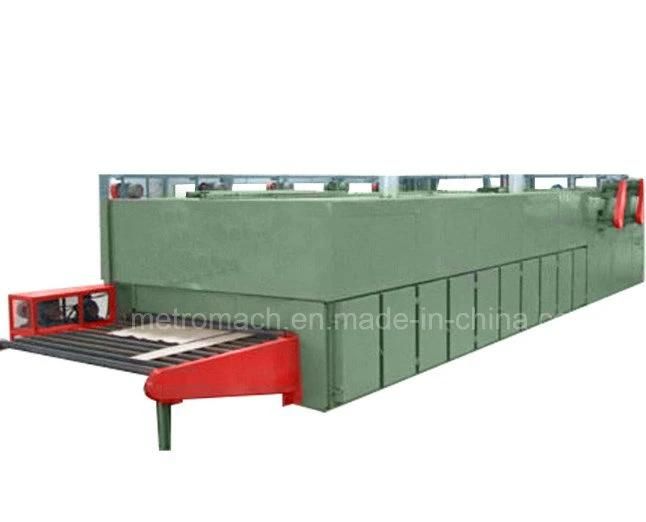

Dryer Machine Characteristics:Mesh belt dryer is composed of several independent unit section. It is a kind of closed belt drier, characterized by open only feed end and discharge end, the remaining is closed, hot air steams inside the equipment, low heat loss, it can save a lot of energy.
1.configuration of equipment is flexible,One-time drying more of the material, and can continue to produce dry, easy to use, reduce more labor.
2.simple structure, easy installation,can run for a long time, the event of a failure can enter the box body internal repair, maintenance is convenient.
3.It can be heated by steam water or oil,so you can use steam boiler or oil boiler,and you can burn waste wood to heat the boilers. Cost is very low.
4.We can customize products according to customers' needs.
The Reasons of Choose us:
1.Multiple models are available and low price.
2.30years of industry experience, trustworthy.
3.Strength manufacturers, support inspection.
Product Details :
| Model | BG183-G |
| Working width | 2650mm |
| Working layers | 2 layer mesh |
| Length of heating section | 5×2000mm=10000mm |
| Length of cooling section | 1×2000=2000mm |
| Total power | 47.7kw |
| Transport motor | 4kw×2=8kw, inverter controlled |
| Heating motor | 7.5kw×5=37.5 kw |
| Cooling motor | 2.2kw×1=2.2kw |
| Air pressure | 0.5Mpa |
| Veneer transportation speed | 2~30m/min, |
| Heating medium | Thermal oil/steam |
| Drying temperature | 150~180ºC |
| Effective Heating consumption | 700,000Kcal |
| Veneer density | 590 kg/m³ |
| Available veneer thickness | 0.5~1.2mm |
| Veneer initial moisture content | 60~70% |
| Veneer final moisture content | 10±2 % |
| Drying capacity | 1 .5m³/h |
| Load ratio | 85% |
| Center distance of roller | 500 mm |
| Mesh belt | 304#stainless steel, 10×20×2650mm |
| Mesh position correction system | Omron infrared switch and emergency stop |
| Roller spacing | 333 mm |
| Overall dimension(L*W*H) | 17300×4330×2900mm |
| Front & Back veneer conveyor | 1 pc, 1850+1850mm |
| Overall machine weight | 27tons |
| Electric parts | Schneider /LG brand |
Q&A:
Q1:How many years experience does your company have in manufacture and exporting?
A1:Our company have 30 years manufacturing experience and 13 years exportingexperience
Q2:Where is your factory located in?
A2:We are located in Linyi city,Shandong province,Cina.
Q3:How can we go to visit your factory?
A3:There are fights/long-trip bus/train from Beijing, Shanghai, Guangzhou, Shenzhen city etc to Linyi city.
Q4:Which seaport you export from?
A4:We mainly exportmachines from Qingdao city, sometimes also from Shanghai etc.
Q5:Terms of payment?
A5:L/C T/T If you have any questions, you can contact us.
Q6:How to solve the after-sales problem?
A6:We can provide online guidance, and the company have professional overseas teams to help solve problem.
