Woodworking Machinery

Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Function:Gluing, End Trimming, Rough Trimming, Fine Trimming, Scraping, Buffing
  • Type:Straight Line

Base Info

  • Model NO.:MF360A
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:13m,min
  • Certification:CE, ISO, FDA
  • Panel Thinkness:60mm
  • Min.length panel:160mm
  • Min.width panel:60mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • After-sales Service:12 Months
  • Name:Automatic Edge Bander
  • Model:Mf360A
  • Working Air Pressure:0.6MPa
  • Edge Band Thickness:0.3-3mm
  • Feeding Motor:1.5kw
  • End Cutting Motor:0.37kw*2
  • Trimming Motor:0.55kw*2
  • Heating Motor:0.5kw
  • Buffing Motor:0.18kw*2
  • Glue Pot Motor:0.37kw
  • Color:as Required
  • Certificate:CE
  • Weight:1000kg
  • Overall Size:4800*1100*1600mm
  • MOQ:1
  • Transport Package:Wooden Case
  • Specification:4800mm*1100mm*1600mm
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month
  • Package size per unit product:480.00cm * 110.00cm * 160.00cm
  • Gross weight per unit product:1800.000kg

Description

model noMF360Aname automatic edge banding machinerated power11kwmax processing thickness60mmmax processing width2400mmmax processing length4800mmweight1800kgoverall dimensions4800mm*1100mm*1600mmMF360A edge banding machine function
gluing and pressing-end cutting-rough trimming-fine trimming-scraping-buffing
Features
1,Gluing and pressing help to facilitate feeding, evenly coated.
2,End cutting through the precision linear guide motion, using the master to automatically track the high-speed high-speed motor rapid cutting structure to ensure that the cut surface is smooth and smooth.

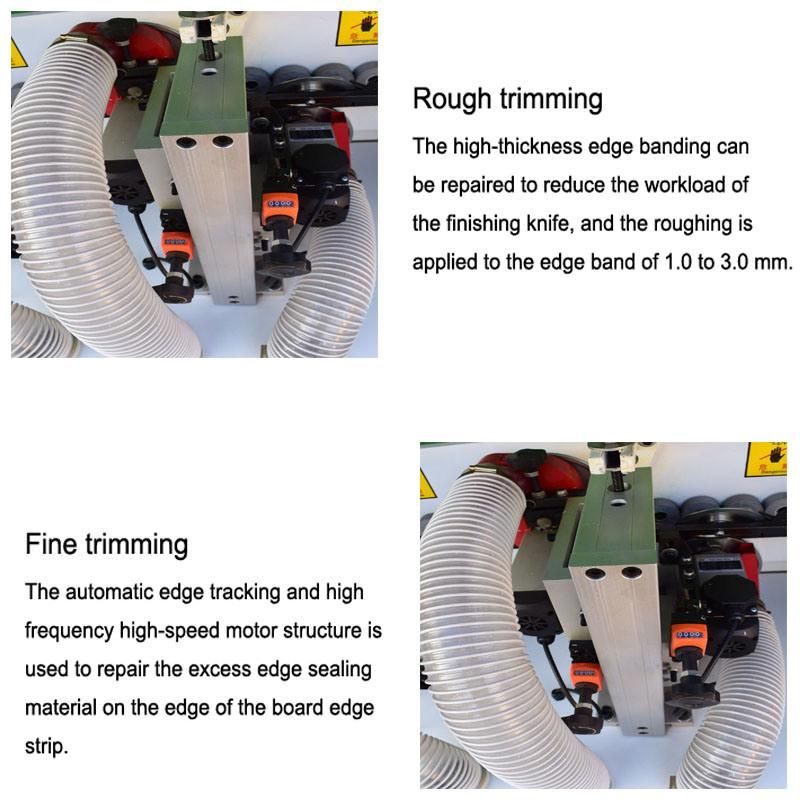

3,Rough trimming and fine trimming ensure that the upper and lower plates are smoother and more tidy.

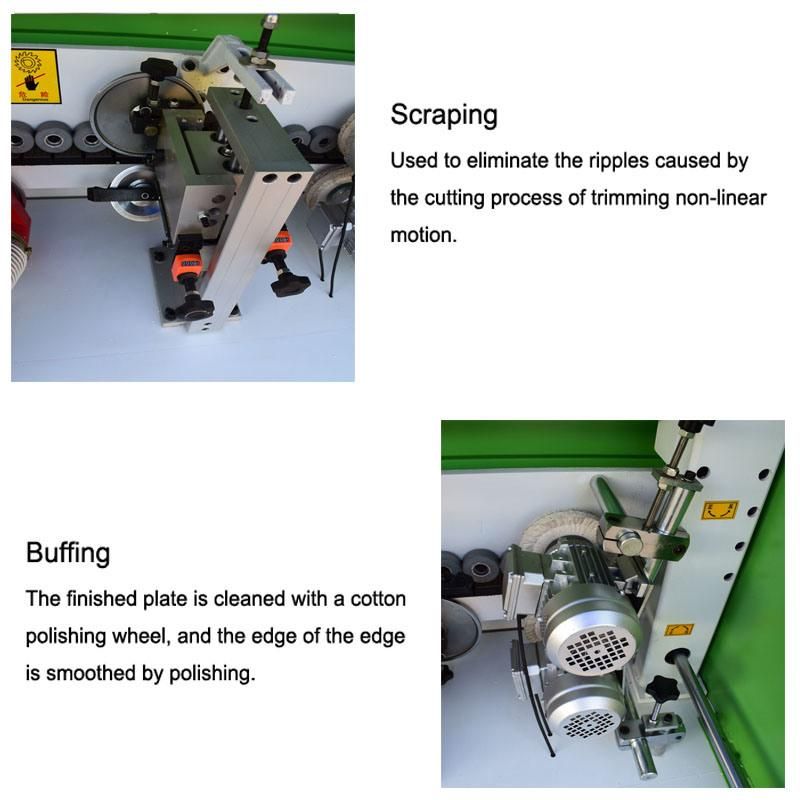

4,Scraping is used to eliminate the ripples caused by the cutting process of trimming non-linear motion, so that the upper and lower parts of the board are smoother and more tidy.
5,Buffing is used to clean the finished sheet and play a role in polishing.
Detailed Description
Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale PriceMf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale PriceMf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price

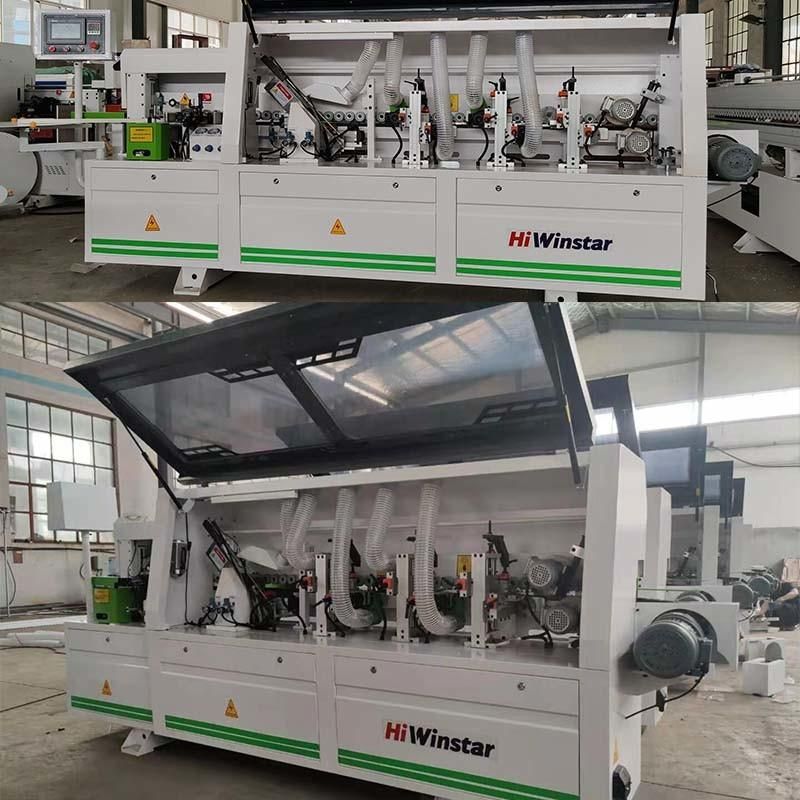

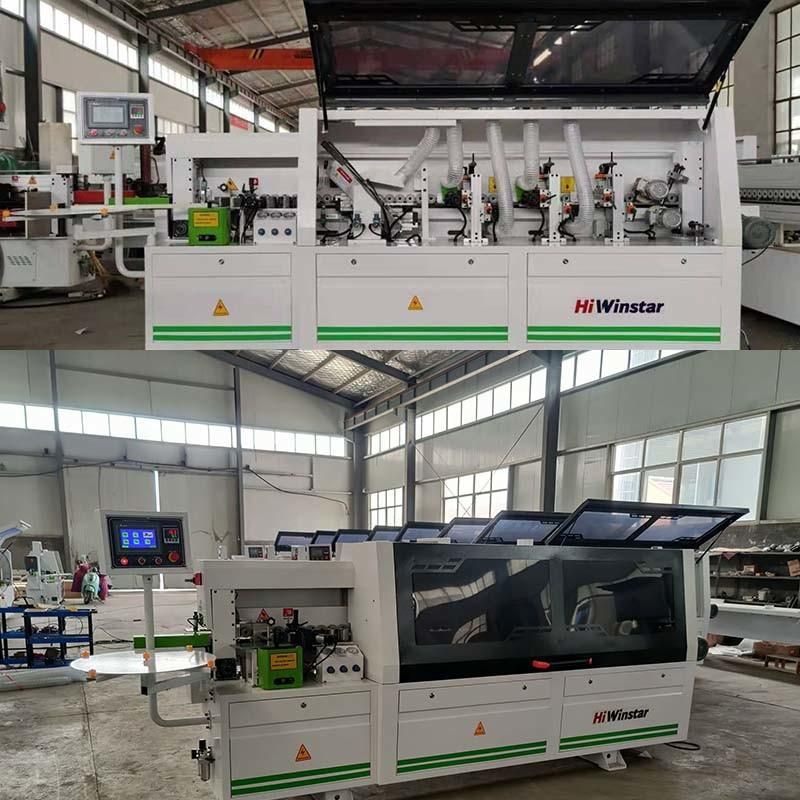

Detailed Pictures
Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale PriceMf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price
Edge Banding Effect
Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price

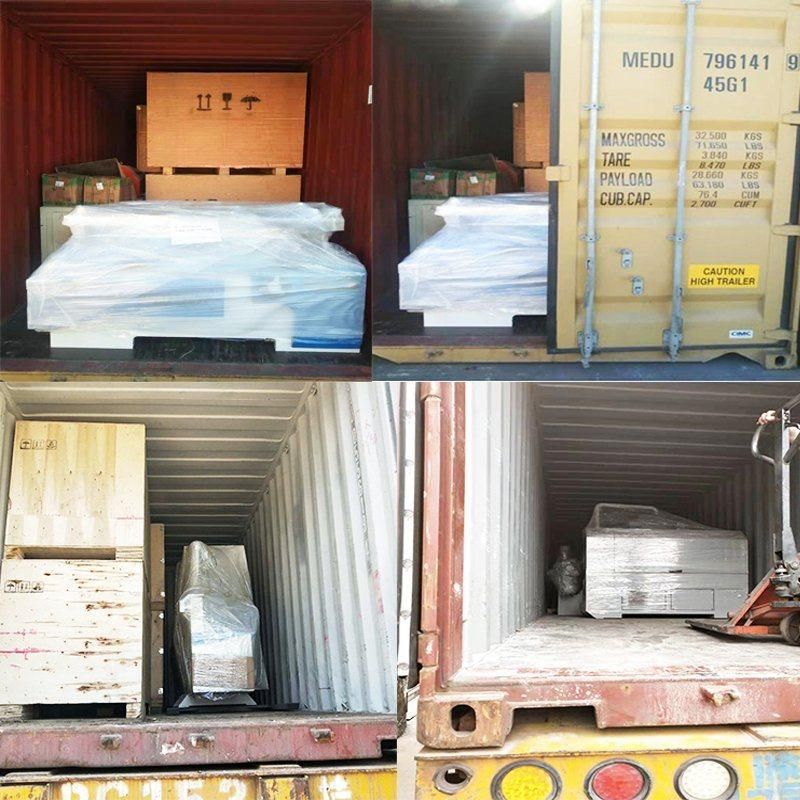

Packaging & Shipping
Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale PriceMf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price
Company Information
Mf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale PriceMf360A MDF Furniture Edge Bander Automatic Edge Banding Machine with Wholesale Price
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.

we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
