Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

Jinan Starma Intelligent Tech Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:220V
  • Name:CNC Router Machine
  • Model:Sm-C1625

Base Info

  • Structure:Heavy Steel Tube Welded Body
  • Control System:DSP A11 Control System
  • Table:Aluminum Profile T-Slot with PVC
  • Motor:Stepper Leadshine NEMA34 Big Motor
  • Driver:Leadshine M860
  • Inverter:Best or Fulling Inverter 3.7kw
  • Oil:Semi- Automatic Lubrication
  • Spindle:3.2kw Hqd Water Cooling Spindle
  • Precision:0.03mm
  • Square Rail:Xy Axis Gear Rack, Z Axis Tbi Ballscrew
  • How to Fix Material:Wheel System to Fix
  • What Material:Suitable Wood, MDF, Leather, Cloth, PVC, Acrylic
  • Weight:1500kgs
  • Transport Package:Standard Export Plywood Case Packing
  • Specification:1600x2500x200mm
  • Trademark:STARMACNC
  • Origin:Jinan, China
  • HS Code:8465990000
  • Production Capacity:80 Sets Per Month

Description

NoDescriptionParameter1X,Y,Z Working Area1600x2500x200mm cnc router2X,Y,Z Traveling Positioning Accuracy±0.03mm3X,Y,Z repositioning Accuracy ±0.02mm4Table SurfaceProfessional Aluminum profile T-slot with PVC5FrameHeavy duty Square pipe Welded Structure 8mm6X, Y axis transmissionOblique gear rack7Z axis transmissionTaiwan TBI 2505 ballscrew8Max. Travalling speed 40000mm/min9Max. Working Speed20000mm/min10Spindle Power Motor3.2kw HQD water cooling11Spindle speed0~24000rpm/min12Drive MotorsLeadshine Stepper 450B and M86013Working VoltageAC 220V Single Phase,50Hz(380V can option)14Inverter3.7kw BEST or Fulling (Delta can option)15Command LanguageG code16How to fixed the materialUse the whhel system, automatic fix the material strong17Operating SystemDSP A1118InterfaceUSB19Flash Memory128M( U Disk)20X,Y Resolution<0.01mm21Software CompatibilityArtcam,type3,Ucancam,etc22Running EnvironmentTemperature: 0ºC~45ºC
Relative humidity: 30%~75%23The parts you can upgrade1.)3.5kw air cooling spindle
2.)Easy servo motor and driver/Delta servo motor/Yaskawa servo
3.)Add ATC system
4.)Use more bigger spindle and other machine types24Quantity(Sets)1-1                 2-3                    4-6                      >6Delivery time(Days)20                   30                     40                       To be negotiated

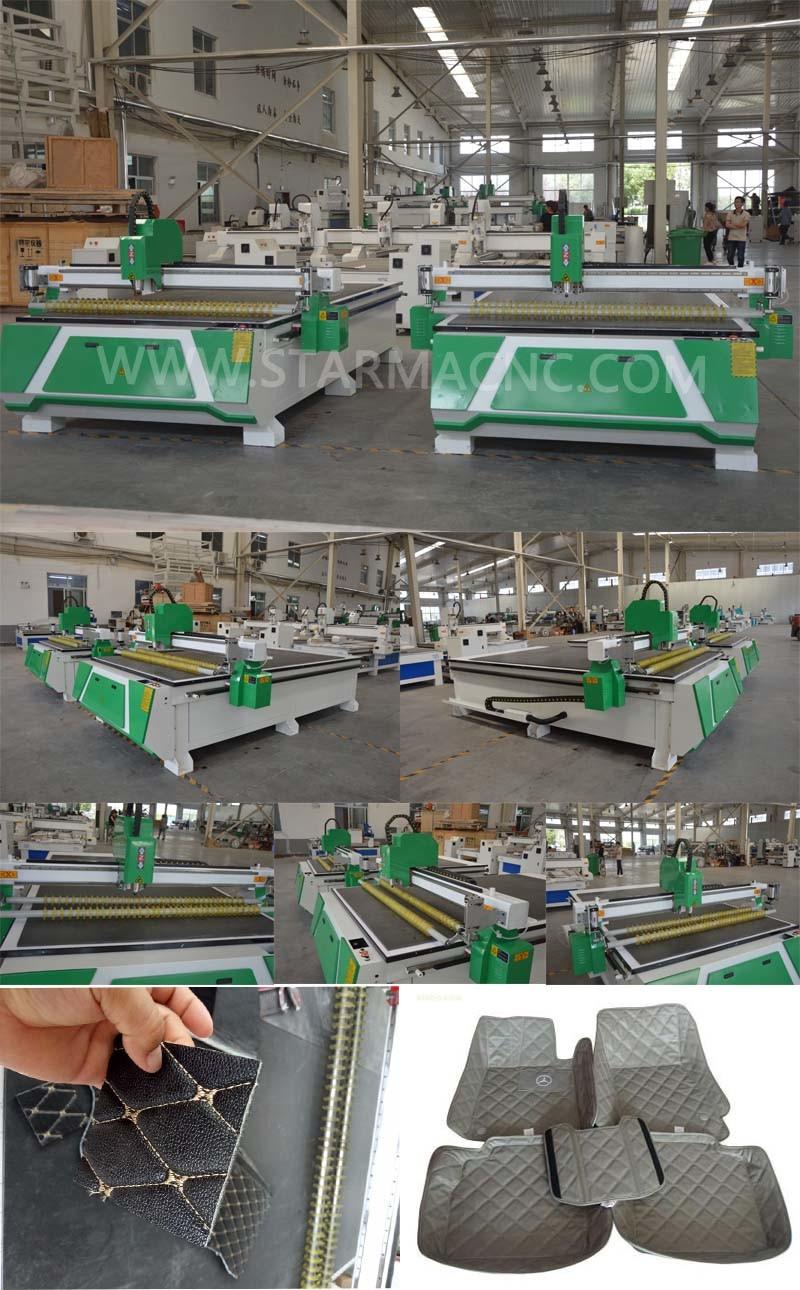

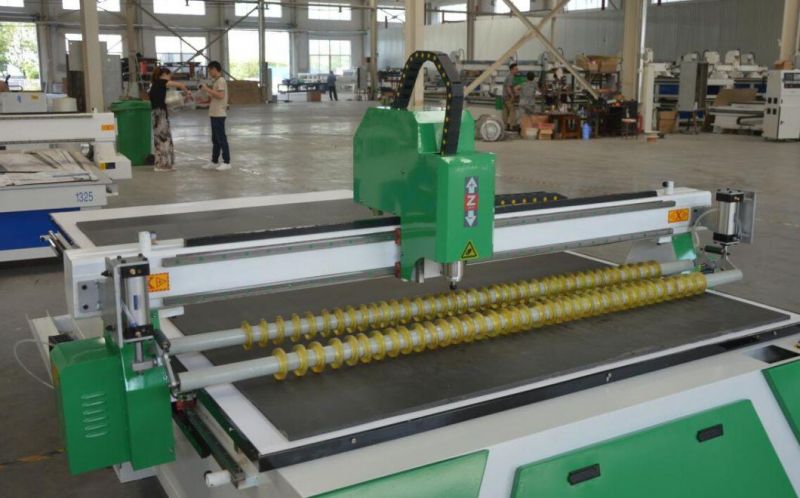

-------Machine Details-------
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

wheel on table for cutting wood acrylic leather router cnc cutter machine
-------Application-------

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine


Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

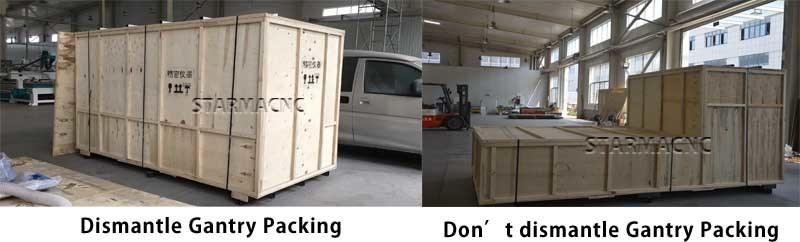

-------Packing and shipping-------
We have 3 layers package.
or the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

wheel on table for cutting wood acrylic leather router cnc cutter machine

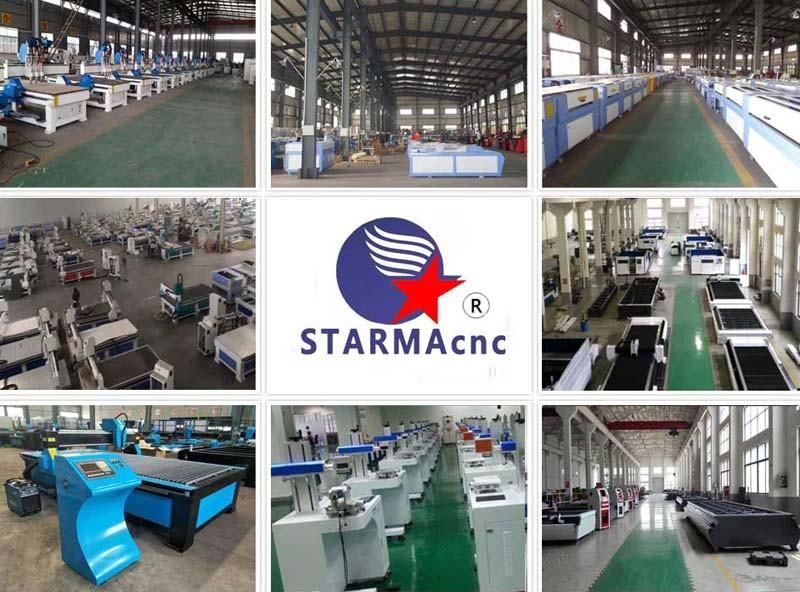

-------Company information-------
Jinan Starma Machinery Equipment Co.,Ltd. Build from 2010 years and lived in Jinan city, Shandong province,China. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine. To the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE UL FDA certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

-------Customer visit-------
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

-------Our certificate & feedback from client-------
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine

-------Our service-------
Before sale:

We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here.
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is 12 months.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

-------FAQ-------
1. What is the Payment Terms for this cnc router?

Re: Alibaba Trade Assurance ,T/T , Western Union, Paypal,L/C

2. How do you delivery the machine?

Re: By sea,By rail,By land

3. What about the delivery time?

Re: 12-18 working days for this wood cnc router .

4. What's your warranty?

Re: 1 year warranty for cnc router machine.

5. Do you offer clinical training?

Re: Yes. We can provide training in our factory or in your country.

6. Do we have the discount if buy more?

Re: We have favorable prices for agents. Welcome you to become our long-term business partner.
Wheel on Table for Cutting Wood Acrylic Leather Router CNC Cutter Machine
