• Model NO.：LT-1212
• Product Keyword：1212 CNC Machine with Rotary Axis
• Working Area：1200*1200*200mm
• Bed Structure：Welded Steel Tube Bed Structure
• Guide Rail：Hiwin Square Linear Guide Rail
• Table Surface：T-Slot Table or Vacuum Table
• Spindle：1.5kw,2.2kw,3kw Water Cooling Spindle
• Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860h
• Inverter：Fuling Inverter
• Transmission：X, Y, Z Axis by Tbi Ball Screw
• Software：Artcam,Type3
• Control System：Ncstudio,Mach3,DSP
• Transport Package：Plywood Case
• Specification：1880*2040*1830mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

Overview Product Description

 Performance characteristics:
1. The crafts cnc router adopts casting mechanical structure and imported linear orbit.big loading capacity,
gantry moving, good moving stability, high precision and long lifetime.
2. Optional DSP or NC control system ,easy to operate,it is able to continue engraving when the electricity
and with the function of forecasting process time.
3. CNC engraving machine adopts high frequency spindle ,ensure to well engrave and cut ,long lifetime.
4. Be compatible with several CAD/CAM designing software, Type3,ARTCAM .JD, Master CAM,UG,Castmate ,etc
5. The wood cnc router can be equipped with water cycle working table ,ensure to process many materials.
6. Adopts stepper motor and driver, high speed ,good moving and low noise(servo motor and driver is also available)

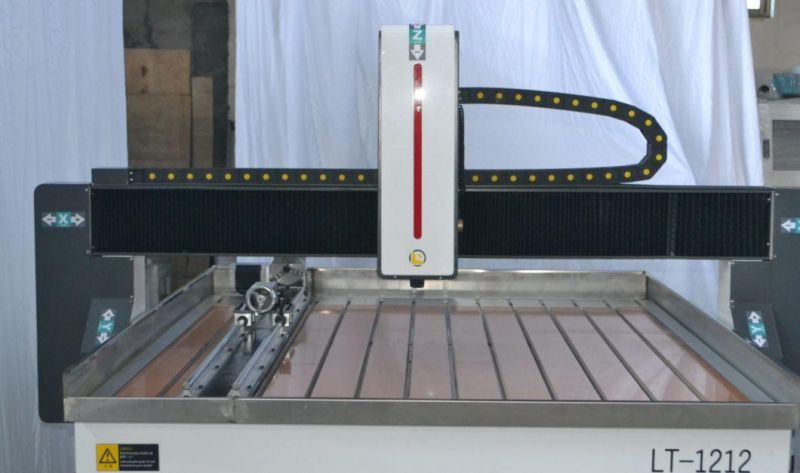

7. Optional rotation axis,expand the processing materials and improve the added value of products.
8. This new model cnc router machine the spindle and machine base are around with the metal sheet,
more heavier and stable. And there are wheels on the machine, easy to move.

Product Parameters

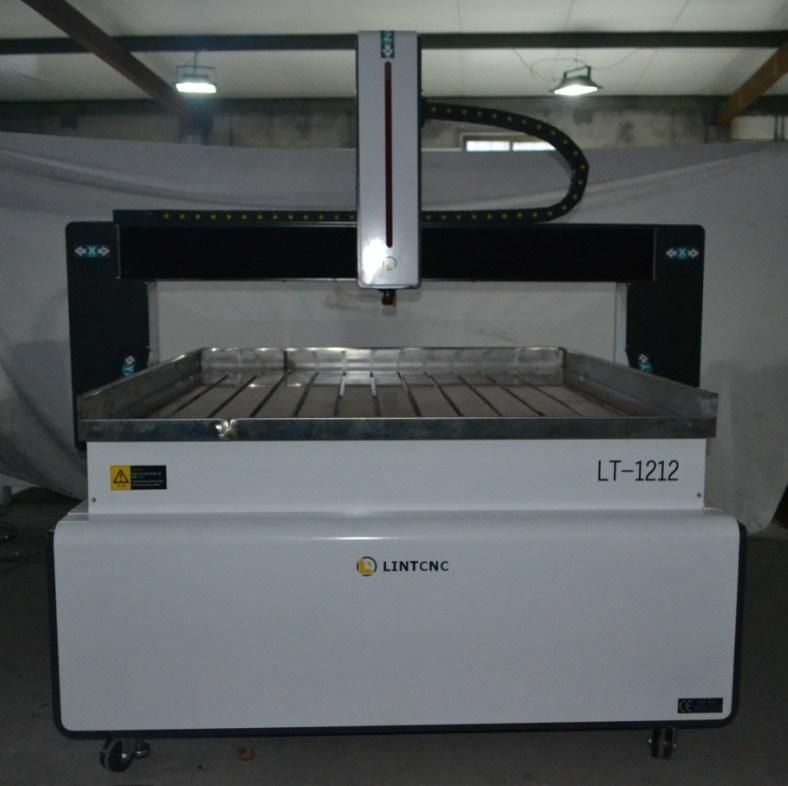

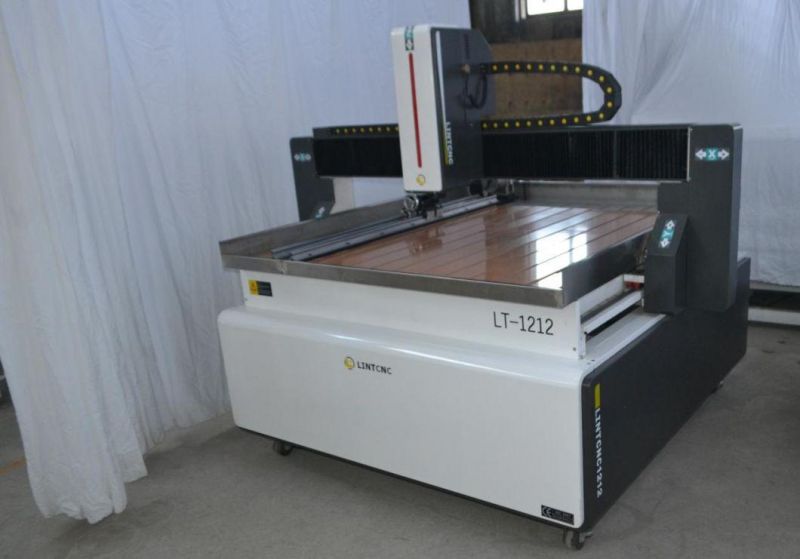

ModelLT-1212 new cnc router machine

Effective working area

1200*1200mm

Max.feeding height of Z axis

200mm

Bed structure

Welded steel tube bed structure

Table style

Aluminum T-slot table with PVC

Guide rail

Hiwin square linear guide rail

Driving method

Taiwan Original TBI Ball screw

Spindle

1.5KW water cooling spindle

Invert

Fuling invert

Collect size

ER16

Spindle speed

0-24000rpm

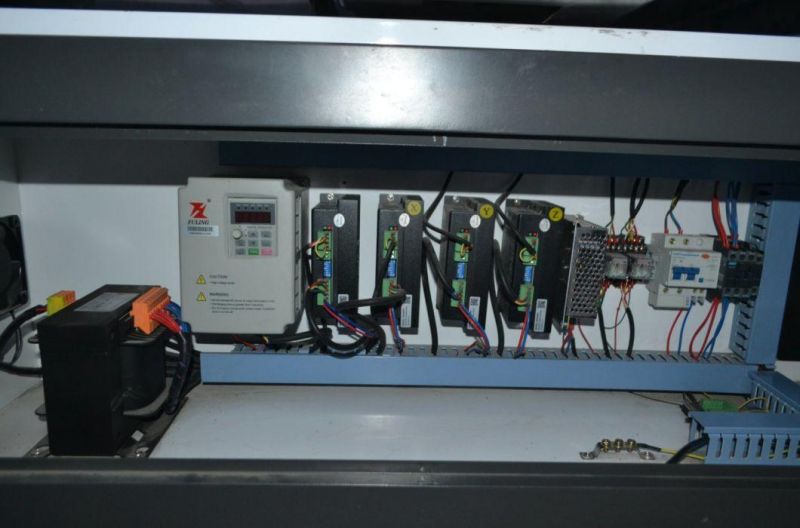

Motors and drivers

86BYG-450B stepper motors and MA860H Leadshine drivers

Control system

Ncstudio control system

Working Accuracy

<0.03/300mmWorking speed<7000mm/minTraveling speed 0-7000mm/min Instruction formatG code *.u00 *.mmg *.pltWorking voltageAC220V, Single Phase, 50-60HzStandard SoftwareArtcam 2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD or other CAM/CAD softwareEnvironment temperature0-45ºCEnvironment humidity30%-75% No coagulate water Too sensorYesOthersEnglish manual,Tool box,Tool sensor,etc.Optional parts1,Rotary axis for engraving round wood:price depends on its diameter
2,2.2kw water cooling spindle
3,Water tank for cutting soft metal
4,Mach3 USB control system

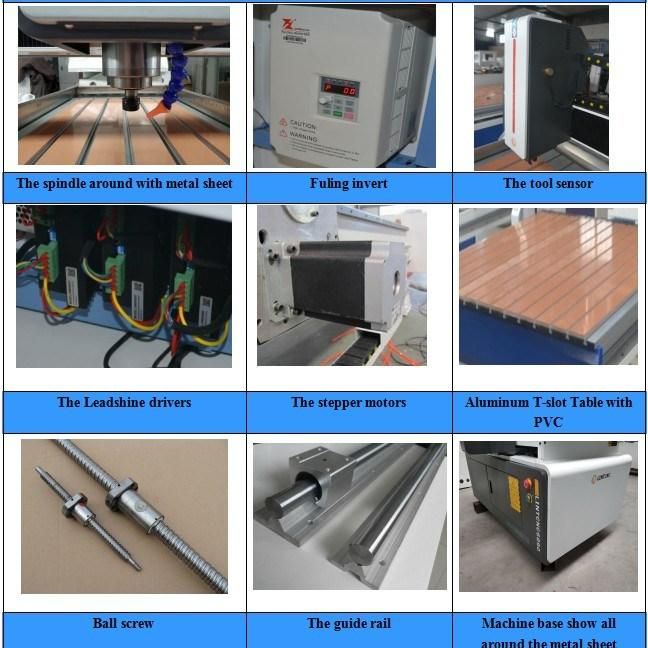

Detailed Photos

Application

1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters,
shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.

Packaging & Shipping

Our Services

 After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.


Certifications



Company Profile

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
