• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y Working Area：1300mm*2500mm
• Z Working Area：200mm
• Max Traveling Speed：60m,Min
• Max Engraving Speed：25m,Min
• Spindle Rotating Speed：0-24000rpm,Min
• The Number of Knife：8PCS
• The Manner to Change Knife：Circular Disk
• Operating System：Syntec
• Drive Motor：Servo
• Spindle Power：9 Kw Spindle
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW1325 Customized Customized Condition New Color Customized X,Y Working Area 1300mm*2500mm Z Working Area 200mm Max Traveling Speed 60m/Min Max Engraving Speed 25m/Min Spindle Rotating Speed 0-24000rpm/Min The Number of Knife 8PCS The Manner to Change Knife Circular Disk Operating System Syntec Drive Motor Servo Spindle Power 9 Kw Spindle Transport Package Plywood Box, Free From Fumigation Specification CE Trademark DWIN Origin Jinan, Shandong, China HS Code 846599 Production Capacity 50 Sets Per Month

Product Description

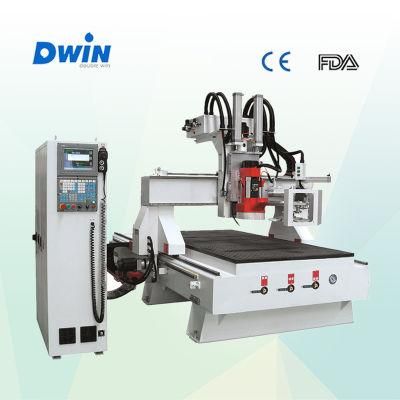

                                        Jinan Factory Auto Tool change woodworking cnc router ( DW1325 )



Features:

1.Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .

2. DW1325 is the type of automatic tool changing system .The exchange time is only 8 seconds. X Z axises  adopt balls crew, high precision, the structure is more stable.

3. Italy air cooling spindle with too changing, high power , original cutters , high precision .long lifetime.

4. Whole machine is welded with seamless steel structure, not easy to be deformed. The side board of gantry adopt steel structure.

5. All adopt imported square orbit , two line sliding track, heavy loading, stable working , high precision and long lifetime .

6. vaccum table, special wood door engraving area make the products more perfect.


Parameter details :

Model	DW1325 ATC CNC Router
X,Y Working area	1300mm*2500mm
Z Working area	200mm
Max working speed	30000mm/min
Processing precision	0.015mm
Repositioning precision	0.04mm
Max ilding speed	60000mm/min
Table structure	Vacuum table
Operation mode	G code*.u00*.mmg*.plt
X,Y,Z structure	Z ballscrew, X,Y gear wheel
Self-consuming power	3.8KW
Working voltage	AC380V 50Hz
Spindle power	9 kw HSD air cooling
Spindle rotating speed	0-24000rpm/min
Drive motor	Japan servo yaskawa
Operation system	Syntec
Net weight	2200kg
Gross weight	2500kg

Guarantee & After Sales Service:

1)  The machine guarantee is 18 months.
2)  24 hours technical support by email or calling.
3)  Friendly English verson manual and operation video CD disc.

Applicable:

Cylindrical or three-dimensional engraving on stone,wood,metal and advertising industry.
