• Model NO.：XS300
• Movement Method：Contour Control
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Configuration：9kw Air Cooling Spindle + Circular Tool Change
• Other：Also Include Drilling Bank (5+4)
• Transport Package：Plywood Case Package
• Specification：1300*2500*250mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. XS300 Movement Method Contour Control Control Method Closed-Loop Control Numerical Control CNC/Mnc Processing Precision 0.01~0.02(mm) Performance Classification MID-Range CNC Machine Tools Configuration 9kw Air Cooling Spindle + Circular Tool Change Other Also Include Drilling Bank (5+4) Transport Package Plywood Case Package Specification 1300*2500*250mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

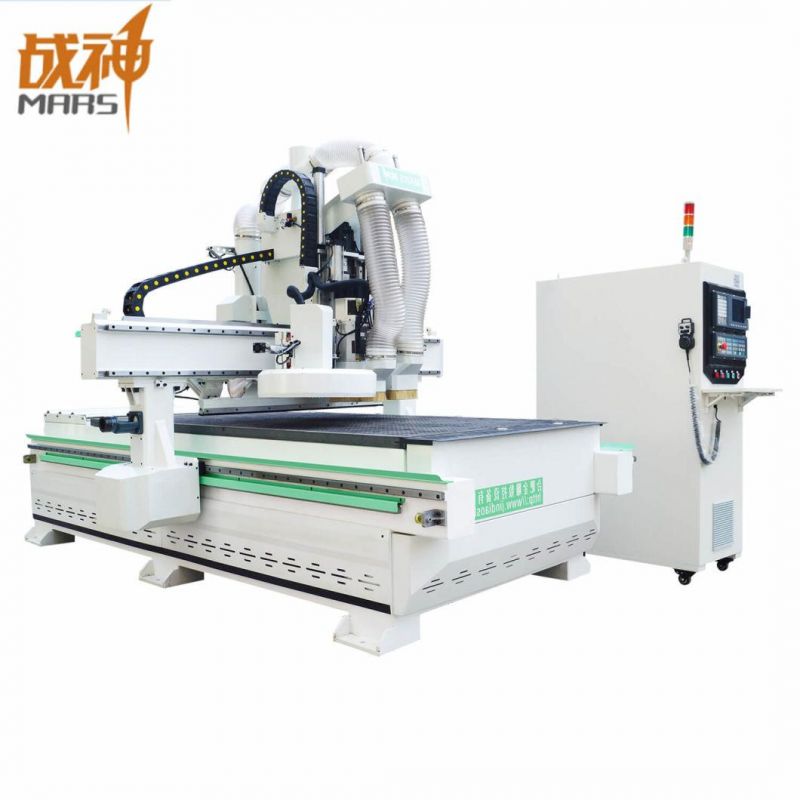

Xs300 High Precision High Efficiency CNC Router Machine with Tools Change in China
 Keywords:15 years experience of production
                     ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                     Three Brand: Mars, Golden Eagle,Borio



Description:
Xs300 High Precision High Efficiency CNC Router Machine with Tools Change in China is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.


Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper



Application Scope & Samples:
Be suitable for processing complicated products, with wide rage of functions, including cutting,milling, etc,


Optional Accessories
Aquila Co.devote to design all products and accessories can maximize meet customers demands.According to the market's different demands, its provide various accessory spareparts for kinds of requirements. The production mode of Aquila is Act according to actual circumstances, which won the customer's trust and favour.


Parameters

Model	S300 ATC Drilling and Cutting CNC Center
Working Stoke	1230*2450*200mm
Body Structure	Heavy-duty thicken steel structure, w/ tempering
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Drilling Head	Italy HSD 5+4 gang drill
Tool Magazine	Carousel, 8pcs
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Transformer	630VA
Vacuum Pump	7.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	3000KG
Machine Size	3700*3100*1900mm

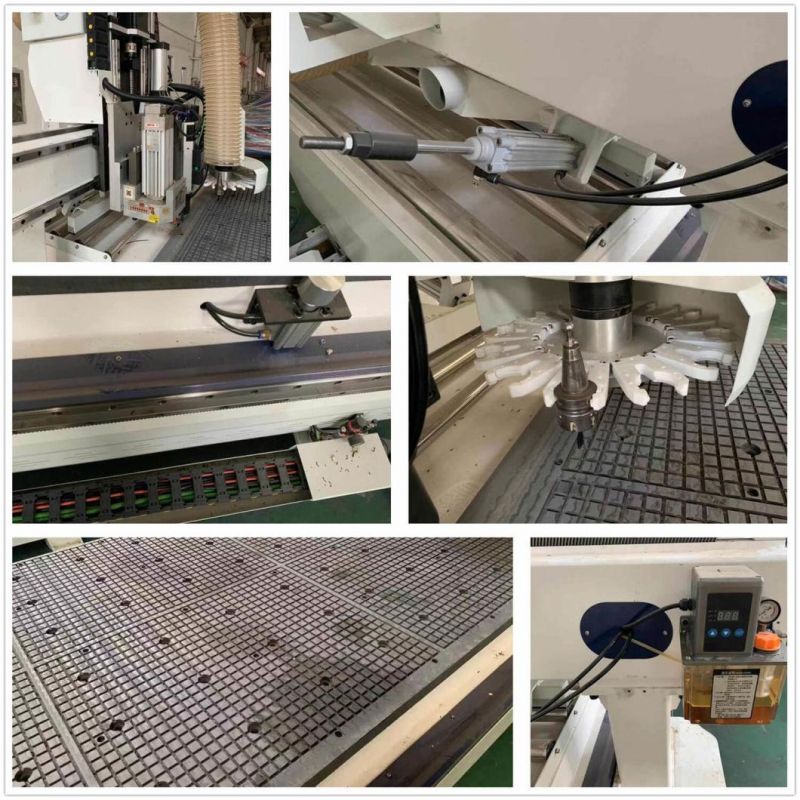

Performance Features:
1. Equipped with all the leading international brand components, with carousel tools magazine.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.
