• Model NO.：YFK680
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：90kw
• Weight：6.3t
• Capacity：1-1.5t,H
• Pellet Size：4-12mm
• Material Applies：Husk,Straw,Sawdust,etc
• Material Moisture：8-15%
• Mold Structure：Double Layer Mold,Vertical Structure
• Transport Package：Standard Container
• Specification：2.6*1.3*2.3m 6.3t
• Trademark：Yufchina company
• Origin：Henan, China (Mainland)
• HS Code：8474802000
• Production Capacity：2300t,Year

Basic Info.

Model NO. YFK680 Warranty 1 Year Customized Customized Condition New Color Multi Color Power 90kw Weight 6.3t Capacity 1-1.5t/H Pellet Size 4-12mm Material Applies Husk,Straw,Sawdust,etc Material Moisture 8-15% Mold Structure Double Layer Mold,Vertical Structure Transport Package Standard Container Specification 2.6*1.3*2.3m 6.3t Trademark Yufchina company Origin Henan, China (Mainland) HS Code 8474802000 Production Capacity 2300t/Year

Product Description

     Automatic Ring Die Cassava Pellet Machine

Application and usage

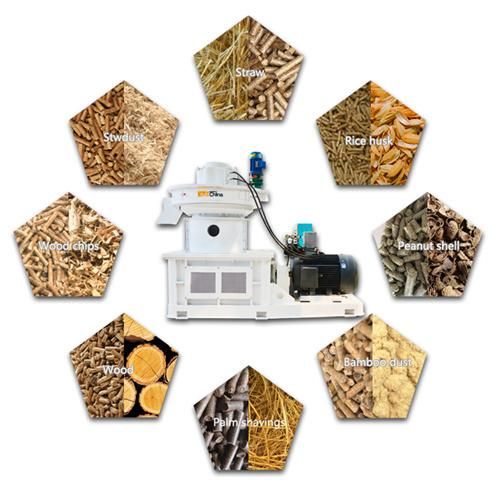

The vertical ring die pellet machine  is suitable for the materials with low adhesive and formation rate,which are difficult to pressing molding,such as rice husk,sunflower seed husk,peanut hull,a variety of wood waste like beanch,trunk,bark,various of crop straw,eucalyptus,palm fiber(EFB),coffee shell,sawdust and so on.This machine is widely used for the recycling usage of wastes and tailings in biomass fuel plant,power plant,wood processing plant,fertilizer plant,chemical factory,foodstuffs factory and brewery.

Our company supplies vertical ring die pellet machine. It has the features of
--enhancing the transportation and storage capacity of biomass material,
--improving the combustion performance,
--improving the efficiency,
--reducing the harmful substances when combustion.

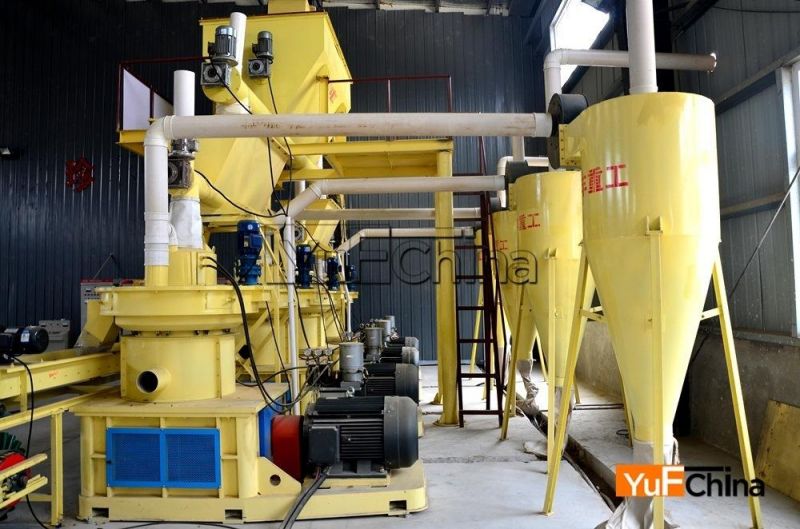

Biomass pellet production line flow

1.Chipping process---------Wood log need to be chipped by wood chipper
2.Drying process -----------Wood chips need dried by drum dryer ,if chips are dry ,We don't need dryer.
3.Further crushing----------The dried wood chips should be crushed by the hammer mill to 1-5mm ,prepared for pellet process.
4.Wood pellet production line processing---------Sawdust go to the pellet machine make pellet directly or big silo which divide material to each pellet machine when have machine more than ones .
5.Cooling process------------30-60mins cooling by nature ,or cooled bywood pellet cooler.
6.Packing process------------You can choose packed by small bag or ton bag .We have packing machine.

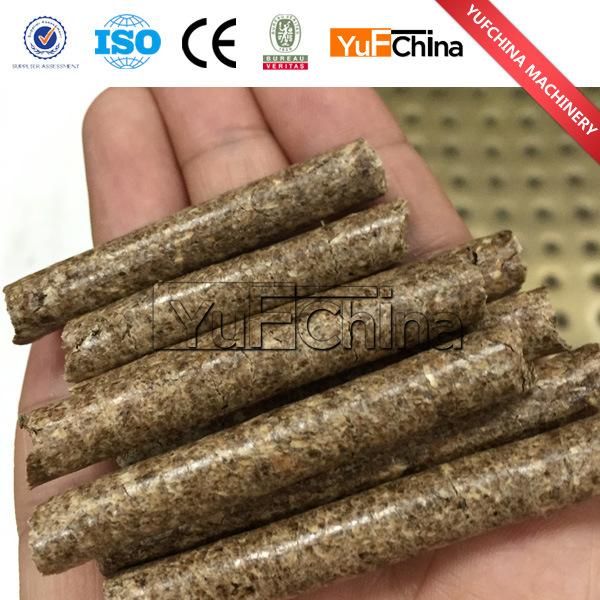

Final products

 --Diameter:8mm
 --Length:10-50mm
 --Humidity:max.8%
 --Ash:1.5%max
 --Calorific:4600kcal/kg
 --Fuel pellet use in hotel ,bath place,factory,electric generator ,cabinet,stove,boiler.







Main technical parameters

Model	Power(kw)	Pellet size (mm)	Inner dia.(mm)	Production(t/h)	Dimension(mm)	Weight(t)
YFK450	55	Φ4-Φ12	450	0.3-1	2200x900x1600	3
YFK550	75	Φ4-Φ12	550	0.7-1	2300x1000x1780	5
YFK560	90	Φ4-Φ12	560	1-1.5	2600x1300x2300	6.3
YFK580	160	Φ4-Φ12	580	1.5-2	2900x1300x2400	7.5
YFK680	160	Φ4-Φ12	680	2-2.5	3200x1400x2400	8.5
YFK850	220	Φ4-Φ12	850	2-3	3750x1650x3250	12.6
YFK880	315	Φ4-Φ12	880	3-4	4300x1900x3600	14.5


After-Sale Service
1 year warranty ,if the machine break is by quality detect not personal reason or natural disaster .
Easy break spare parts not include .
Engineer installation abroad and teach you master the skill to produce wood pellet.
Supply you the spare parts with favarable price all the machine life time.


Company Information

Yufchina Heavy Machinery Co.,LTD is founded in 2004, the production of R&D located in China. From 2004 on, Yufchina has offered the equipment with high-quality and reasonable price for over 200 customers in global, which helps them get $ 800,000 income annually.

Yufchina is devoted to offer the complete pellet line solution, which can meet the huge biomass pellet market demand in rencent years.



If you have any questions about our pellet machine, please feel free to contact us.
