• Model NO.：GD-1325
• Customized：Customized
• Condition：New
• Color：Customer Needing
• Travel (X Axis)(mm)：1300mm
• Travel (Y Axis)(mm)：2500mm
• Weight(Kg)：1000
• Control System Brand：Nc Studio,DSP
• Application：Wood Acrylic PVC Engraving Cutting
• Transmission：Taiwan Hiwin 20mm Guide Rails
• Running Temperature：0-45°
• Repeatability (X/Y/Z) (mm)：0.03
• Software Environment：Windows XP
• No. of Spindles：Multi
• Colors：Clients Requirment
• Spindle Motor Power(Kw)：2.2(Customized)
• After-Sales Service Provided：Free Spare Parts
• Applications：Wood Acrylic PVC Engraving Cutting

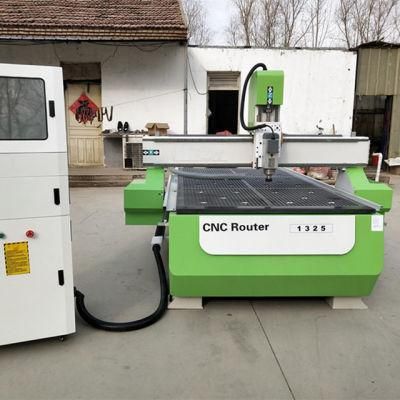

• Machine Type：CNC Router
• Transport Package：Wooden Box
• Specification：1300*2500*200mm
• Trademark：Guandiao
• Origin：China Jinan
• HS Code：8465990000
• Production Capacity：50000pieces,Years

Basic Info.

Model NO. GD-1325 Customized Customized Condition New Color Customer Needing Travel (X Axis)(mm) 1300mm Travel (Y Axis)(mm) 2500mm Weight(Kg) 1000 Control System Brand Nc Studio/DSP Application Wood Acrylic PVC Engraving Cutting Transmission Taiwan Hiwin 20mm Guide Rails Running Temperature 0-45° Repeatability (X/Y/Z) (mm) 0.03 Software Environment Windows XP No. of Spindles Multi Colors Clients Requirment Spindle Motor Power(Kw) 2.2(Customized) After-Sales Service Provided Free Spare Parts Applications Wood Acrylic PVC Engraving Cutting Machine Type CNC Router Transport Package Wooden Box Specification 1300*2500*200mm Trademark Guandiao Origin China Jinan HS Code 8465990000 Production Capacity 50000pieces/Years

Product Description

NICE TO MEET YOU !!!
My friend, i am waitting for you in this website so long time.

Our factory produce Various woodworking machines and other woodworking machinery ,Can also be customized according to your own requirements,Our price is also very advantageous.so that you can save lots of time and cost .

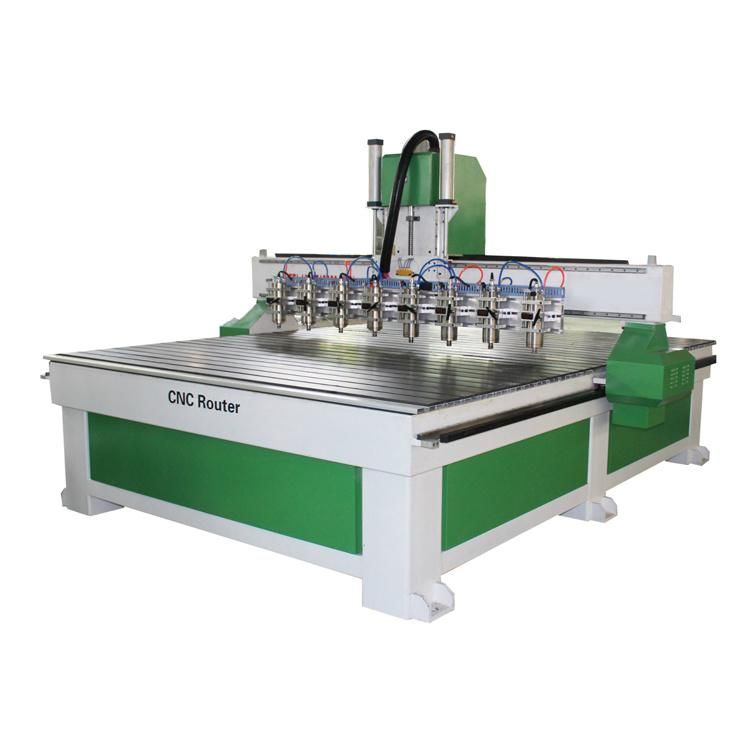

This is Multi head CNC router machine.

PS: All the working area and specifications can be customized according to your requests.




Products Description
1.Can make cutting, carving processing to wood, plastic and marble etc. Also used in manufacture industry for copper, iron and
aluminum work piece processing.

2.Artwork industry: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs. Matrix
processing industry: Applied in carving of elaborate characters and patterns, processing of small matrix products.

3.Building model industry: Carving some elaborate small windows, fences, wall decoration patterns etc.

Seal industry: Carving various seals with cattle horn, plastic, wood and ink storage

Main Features

1.The lathe bed is cast iron wholly. High-rigidity ,firmness, without deformation.

2.Three axes adopt the imported ball screw rod with high precision and linear guide rail which ensures the precision of machine.

3.High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.

4.Adopts water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.

5.High-power, deeply incise. It can incise 30mm thickness acrylic once.

6.The software of the machine can be upgraded so as to ensure the machine improved constantly.

7.Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.

8.Inserting DSP control system can be optional to this machine.

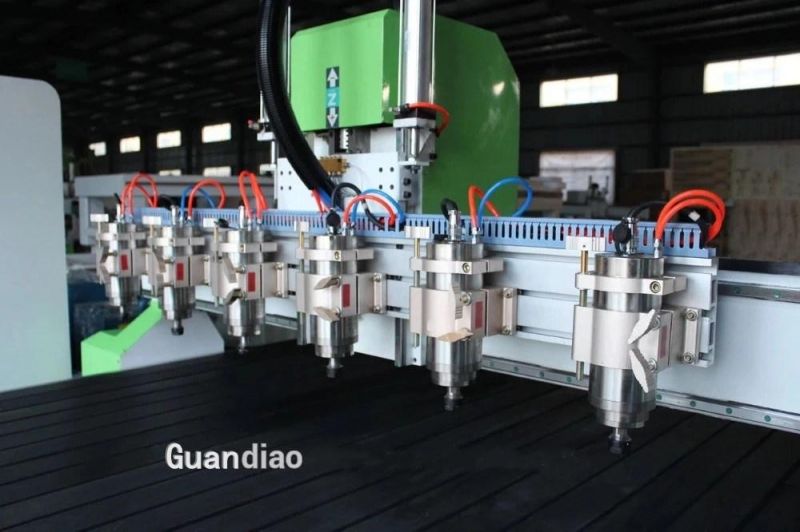

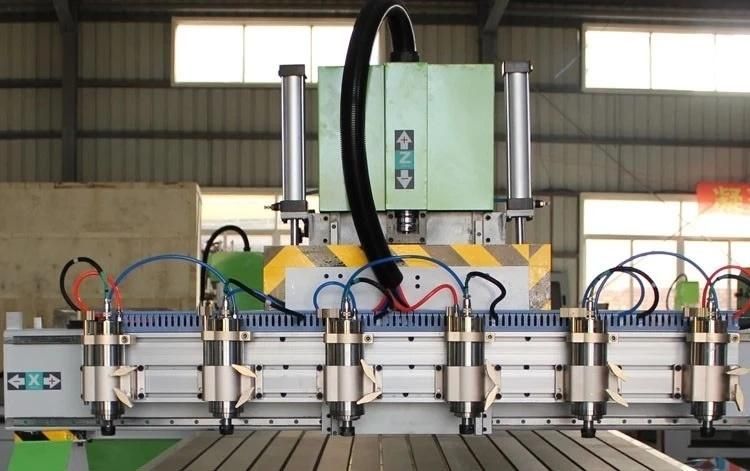

Machine equip with 3/4/5/6/8/10 pics spindles according to user's productions.multi heads ,high efficiency
and each spindle with adjustable holder for same level adjusting when process material, easy for position, ensuring working precision,saving calibration time.


Machine Parts

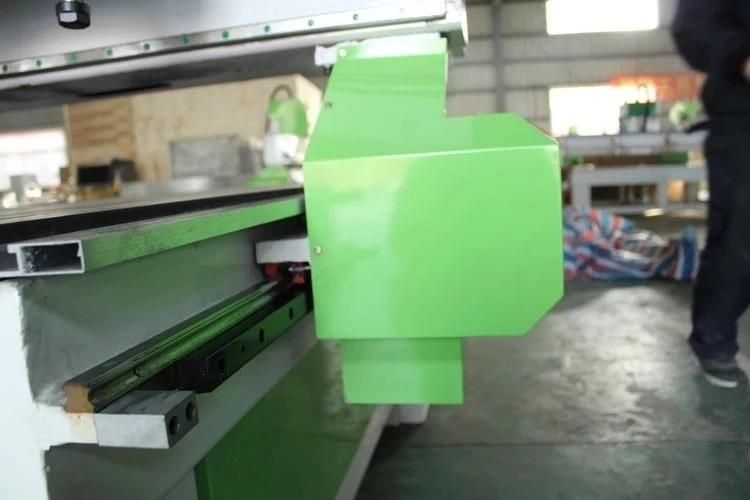

Y axis adopts two way Taiwan Hiwin square guide rail and germany brand helical rack transmission, stable running,longer using life.

Z aixs with two pics balance cylinders
Guandiao CNC use unique patent design on the MULTI HEADS CNC for the Z axis head,two cylinders working with compressors ensure Z axis balance working ,improve working axis, replace of traditional spring design which only lower cost price ,ensure machine high quality.

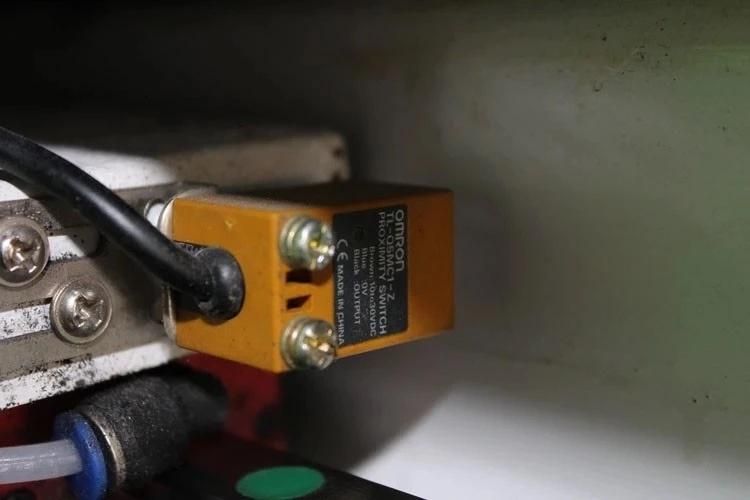

Three axis traveling limit
One machine equip with three pis limit for protecting machine safe&efficient working, we adopts world famous brand Japan Omron limit, stronger sensor,long life time.convenient maintenance
We also add hard limit on each axis for safety issue

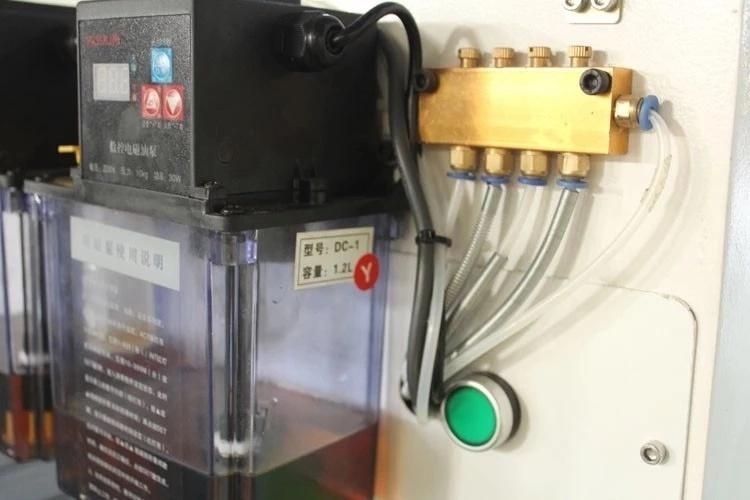

Automatic lubrication device
Automatic oil lubrication for guide rail and rack after setting time .save labor.easy for maintenance for machine.

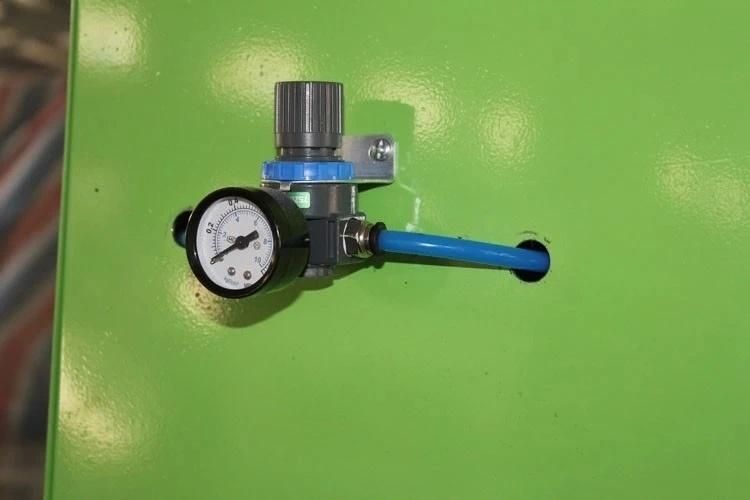

Oil-water speparater
Each machine we install oil-water separating device, for protecting cylinders long life time

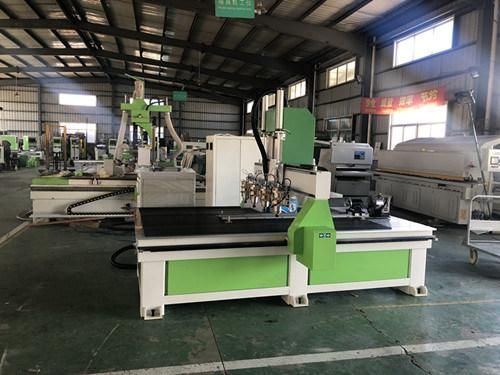

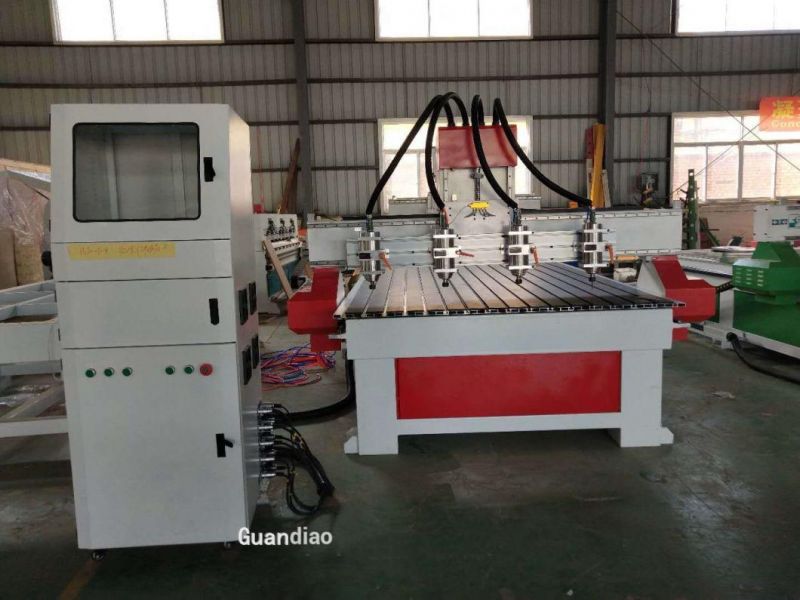

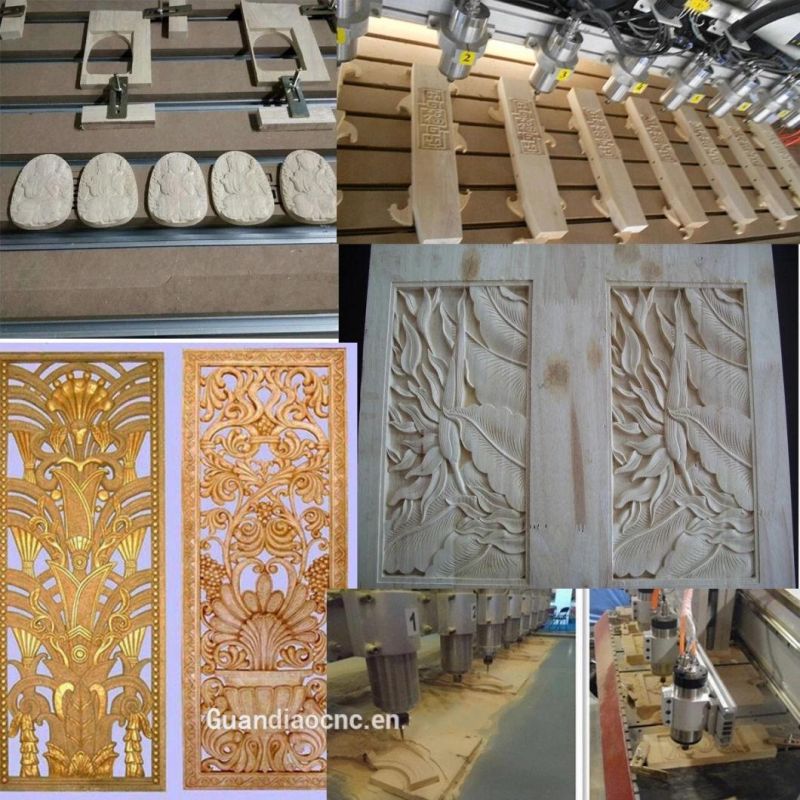

Sample

Packaging & Shipping

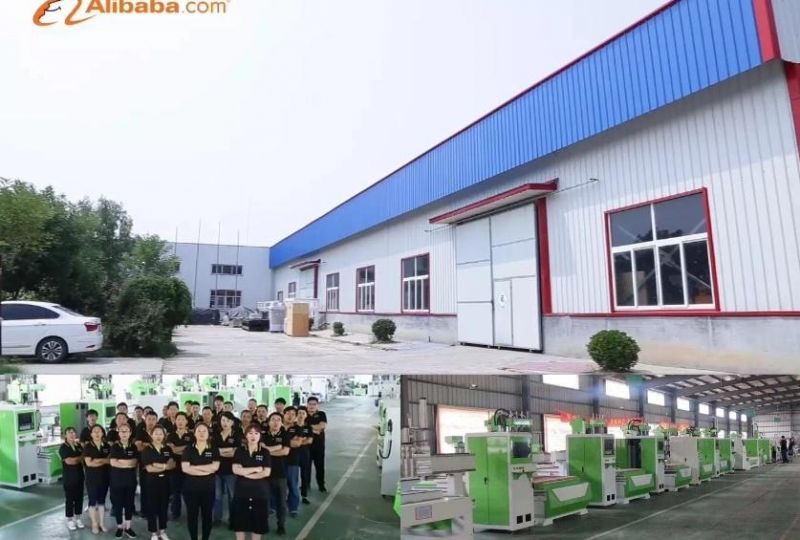

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine,Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture,solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing,automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.


Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2. Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.
4. After sale service:
Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service
5.We accept the ODM,OEM

If you have other needs, please let me know.
