Woodworking Machinery

Hydraulic Press Molded Wood Pallets Making Machine with Automatic Production

Henan Pallet Machinery Co., Ltd.
  • Warranty:1 Year
  • Work Forms:Hydraulic Pressure
  • Processing Technics:Hot Press
  • Structure:Frame Type
  • Pressing Shape:Moulding Press
  • Platen Surface Pressure:High Pressure

Base Info

  • Model NO.:PMYJ-1200
  • Pressing Layer:Single Layer
  • Work Mode:Period
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Certification:CE
  • After-sales Service:Installation & Maintenance
  • Transport Package:Wooden Case
  • Origin:China
  • Production Capacity:12 Pieces,Year

Description

Overview Product Description

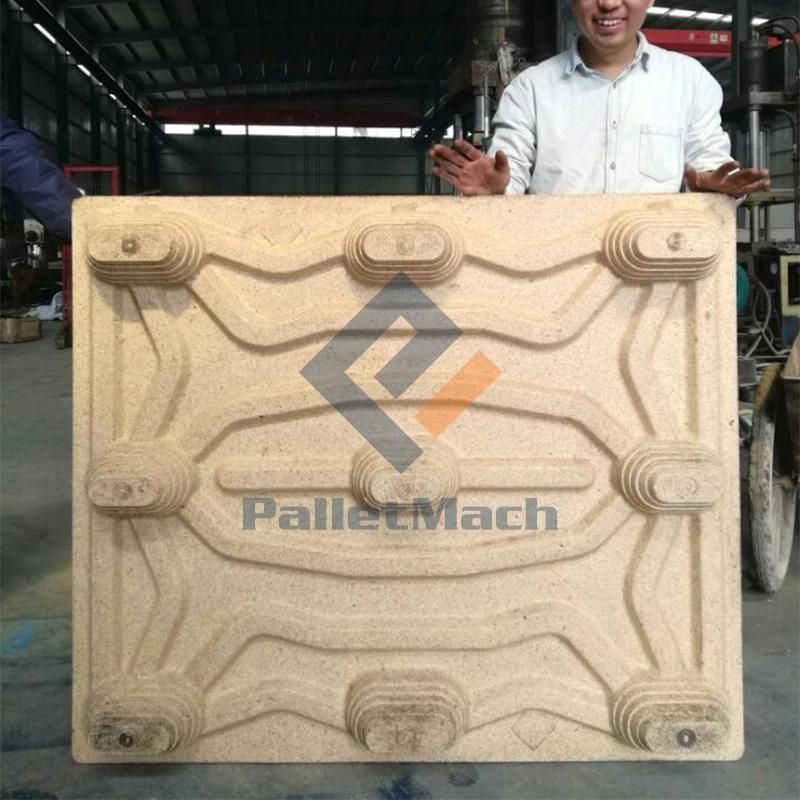

Hydraulic press molded wood pallets making machine is a waste wood recycling machine to produce molded wood pallets. The molded wood pallets are made by molding damaged logs, wood waste and other wood by-products into new export pallets. The environmentally responsible process uses less energy and recycles wood products, making pressed wood pallets a perfect fit for companies going green.



PalletMach is dedicated to serving customers with cost-effective, safe and customer-driven solutions. We have positioned ourselves to meet the ever-changing needs of our customers, and are experienced with designing and delivering high-quality pallets.

Product Parameters



ModelTY-1000TY-1200Voltage220 V/380 V, 50 Hz, three-phase220 V/380 V, 50 Hz, three-phaseCapacity240 pieces/day (24 hours)240 pieces/day (24 hours)Power18.5 kW18.5 kWHydraulic cylinder diameter350 mm380 mmHydraulic cylinder quantity4 pieces4 piecesPressure0-1000 tons (adjustable)0-1200 tons (adjustable)Shaping cycle350 seconds350 secondsWeight22 tons22 tonsDimension2000*1400*3500 mm2000*1400*3500 mmOur Advantages

1. Structure. The frame of new presswood pallet machine for recycling wood waste in Italy adopts the 3-beam 4-column structure with good strength, rigidity, and precision retaining ability.

2. Hydraulic system. Separate hydraulic systems, with compact structure, small flow resistance, sensitive and reliable work.

Sealed performance is good, easy maintenance, and long service life.

Working pressure is adjustable within the scope of the parameter.

3. Control system. Control cabinets can be automatic and manual control.

4. Safe device. The motor controlling parts equip thermal protectors and breakers. So it can protect the motor will not break when overload and have the protection measures of overload and short circuit.



Advantages of Presswood Pallet

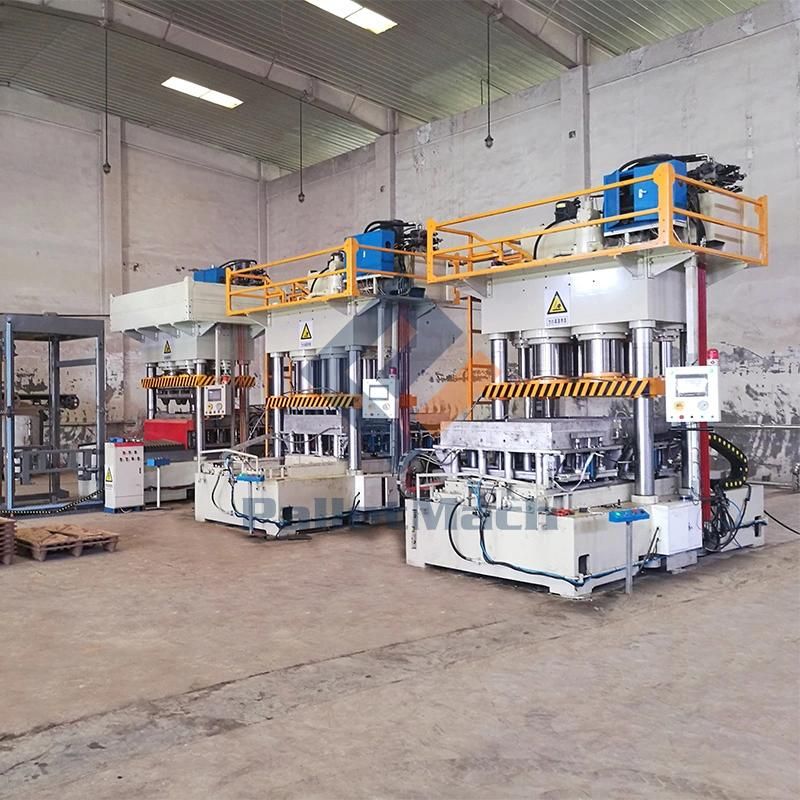

  • Detailed Photos Hydraulic Press Molded Wood Pallets Making Machine with Automatic ProductionHydraulic Press Molded Wood Pallets Making Machine with Automatic Production
