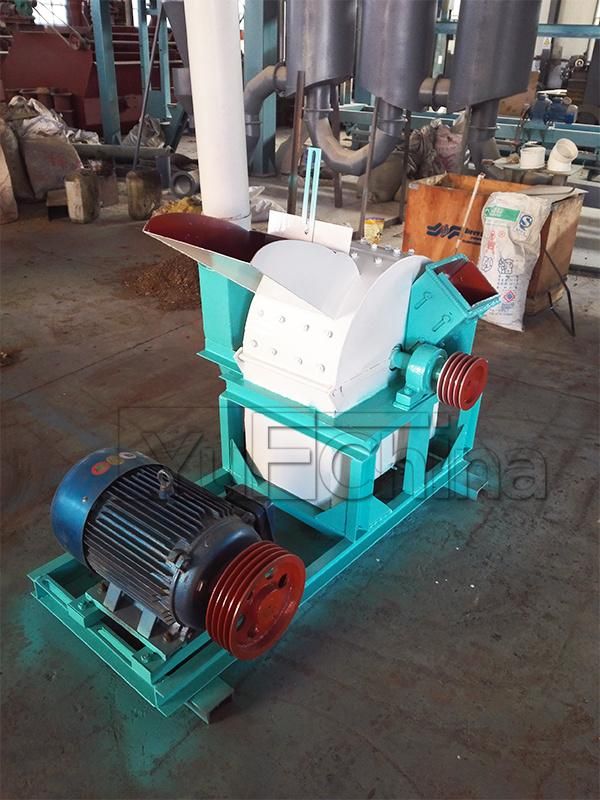

Hammer Mill for Wood and Feed Processing
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- Type：Hammer Mill
- Voltage：380V
- Automatic Grade：Automatic
- Controlling Mode：Artificial
- Energy Saving：Energy Saving
- Warranty：1 Year
Base Info
- Model NO.：YFCZ65*55
- Customized：Non-Customized
- Condition：New
- Color：Multi Color
- Capacity：2-3tph
- Power：45kw
- Hammer：48 PCS
- Transport Package：Container and Wooden Case
- Specification：2100*1000*1100mm
- Trademark：YUFCHINA
- Origin：China
Description
This crusher is a machine specialized in crushing materials by the collision between the high-speed hammer and materials, Raw materials in feed crusher are crushed into suitable particle sizes for feed mixer procession. Final size ofmaterials can be controlled by inserting a screen with different sized holes With competitive price, simple structure and high efficiency, animal feed crushing machine is mainly employed in the farm. middle sized feeding factory or wood pellet making use.

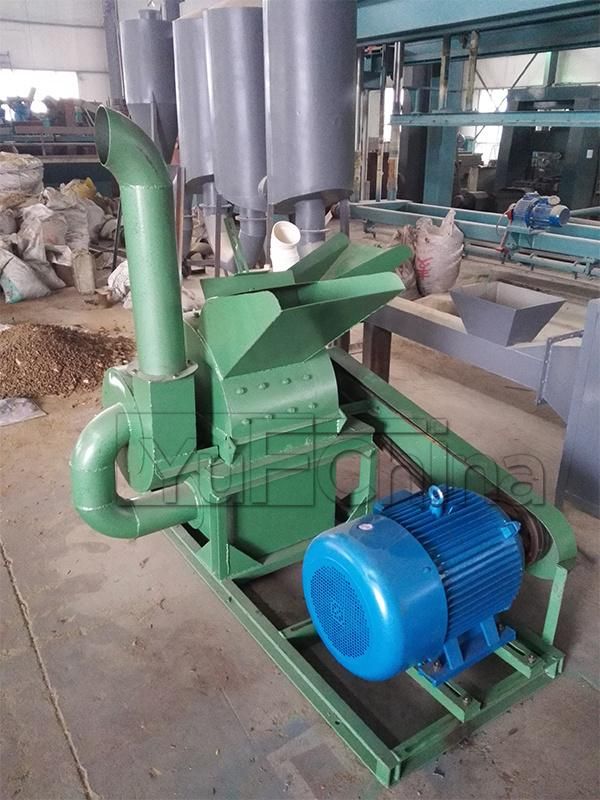

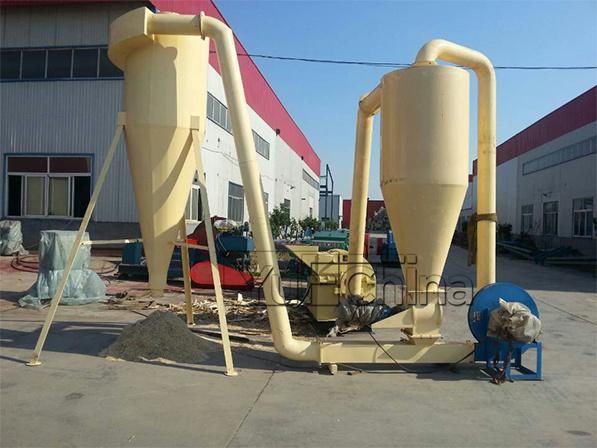

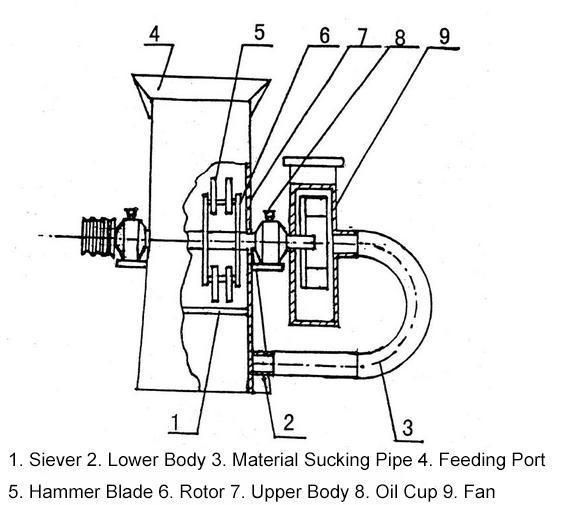

Wood hammer mill featuresThis crusher consists of feeding port. top engine block bottom engine block, rotor, screen sieve, hammer blades, working fan, feed sucking pipe and etc. And the cyclone and storage bag can be equipped as customers required.
Easy to operate, low specific power consumption, accurate and consistent product grinding.
Reasonable design:final size of materials can be adjusted according to replacing the right screen sieve. Moreover the ability to change screen size, and the option of a variable speed frequency drive control, enable the crusher to processing a variety of materials.
Core part-hammers are made of high quality carbon alloy steel, which is durable and wear-resistant. Long life and durability.
Wood and feed crusher application
The crusher is widely employed in farm. middie-sized feeding factory or for family use. This feed grinder can be used for many different particle reduction:
Agricultural materials. such as corn. maize, com stalk, peanut shell dry grass. cotton stalk etc;
Wood industry and crops waste . such as woods , pallet etc.

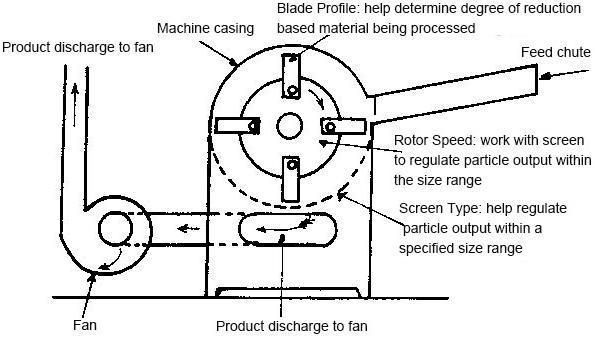

Hammer crusher working principle
1 .The raw material enters into crushing chamber through feed hopper and is held there until it is reduced to the size of the openings in the screen. and there are flailing hammers spinning very fast and close to a perforated screen 2 .Under the drive of airflow, the broken material is moving along the rotor outer-edge and has a continuous collision and friction against the hammer. toothed plate and sieve, then the broken material is crushed. Once the particle size below the diameter of the screen holes, feed powder will pass through the screen

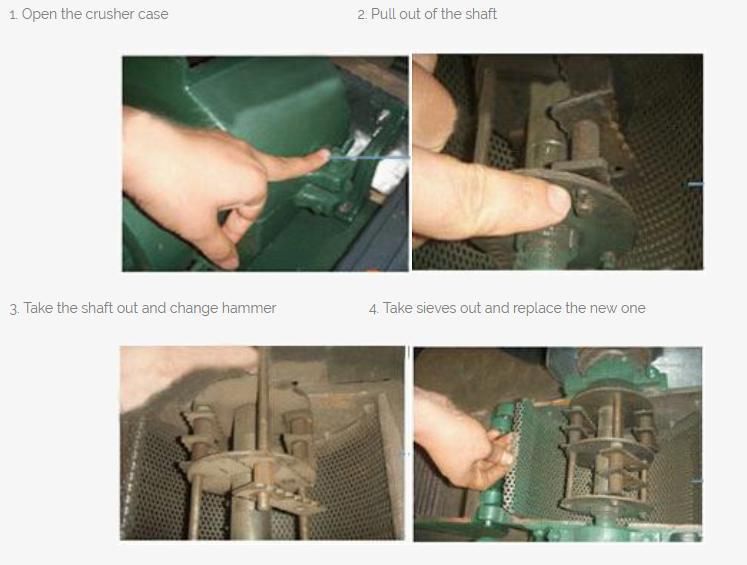

Hammer blades and screen sieve are main and crucial parts in grinding production, which plays prominent role in affecting the capacity and quality of feed particles. Especially screen sieve accounts for 70% of what determines the finished particle size. As easily worn components, hammer blades and sieve should be checked whether they are worn after a certain
working period. If worn. you should replaced them to ensure great grinding efficiency.
For specific sized feed particles based on the production demand, you also need to replace the sieve.
Hammer mill technical parameters
Capacity (t/h)
(kw)
(t)
(mm)
(pcs)
