Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander Machine

Shandong STX Machinery Trade Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：SR-R-RP1300
  • Color：Customized
  • Advantage：Long Service Life
  • Voltage：Customer′s Requirement
  • Working Width：700,1000,1300mm
  • Control Method：Numerical Control
  • Working Thickness：3-110mm
  • Transport Package：Steel Pallet
  • Specification：1300mm working width
  • Trademark：STX
  • Origin：China
  • HS Code：846593
  • Production Capacity：2000 Sets,Year

Description

Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineWorking Width1300mm1000mm700mmMin Working Length580mm580mm580mmWorking Thickness3-110mm3-110mm3-110mmFeeding Speed5-30m/min5-30m/min5-30m/minTotal Power82.62Kw63.12kw47.62kwMotor for First Unit37Kw 22kw18.5kwMotor for Second Unit22Kw 18.5kw15kwMotor for Third Unit18.5Kw18.5kw11kwFeeding Motor4Kw3kw3kwLifting Motor0.75Kw0.75kw0.55kwMotor for Brush Roller0.37Kw0.37kw0.37kwHardness of First RollerSTEEL ROLLERSTEEL ROLLERSTEEL ROLLERHardness of Second Roller80sh80sh80shHardness of Third Roller70sh70sh70shDiameter of First Roller240mm240mm240mmDiameter of Second Roller240mm240mm240mmDiameter of Third Roller210mm210210mmLinear Speed of First Roller20m/s20m/s20m/sLinear Speed of Second Roller20m/s20m/s20m/sLinear Speed of Third Roller16m/s16m/s16m/sAbrasive Belt Size1330×2200mm1030×2200mm730×2200mmWorking Air Pressure0.6Mpa0.6Mpa0.6MpaAir Consumption17m3/h17m3/h17m3/hVolume of Dust Collection Device9670m3/h9670m3/h9670m3/hOverall Dimensions2030×3060×2180mm1740×3060×2180mm1430×3060×2180mmNet Weight5100Kgs4400Kgs4400Kgs

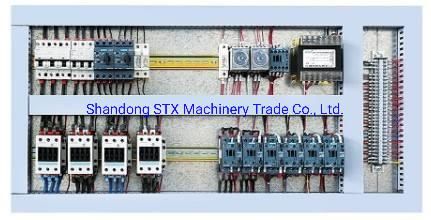

Detailed images:Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineAll SIEMENS Electrical parts are adopted ensures enduring and steady service life.
 All SIEMENS Electrical parts are adopted ensures
enduring and steady service life.

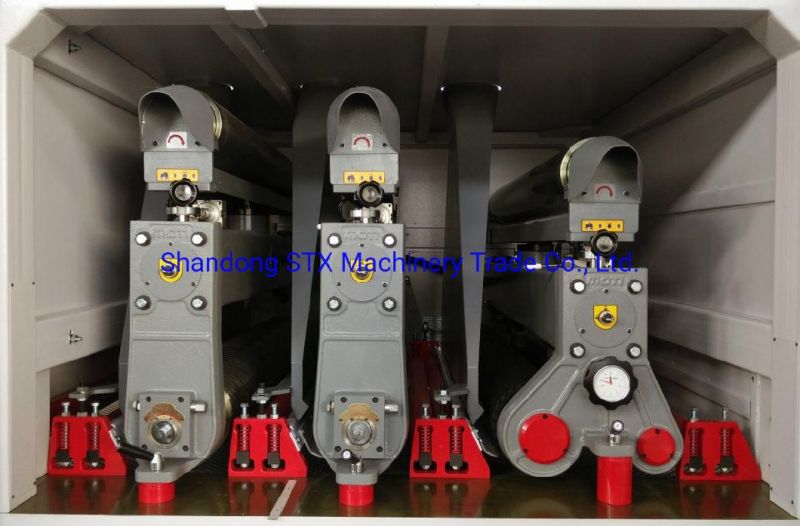

 Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineWood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineAll casting parts are used on sanding and pressing units' structure. They will be more
stable and hardly deformed ensures long time precision of the machine.

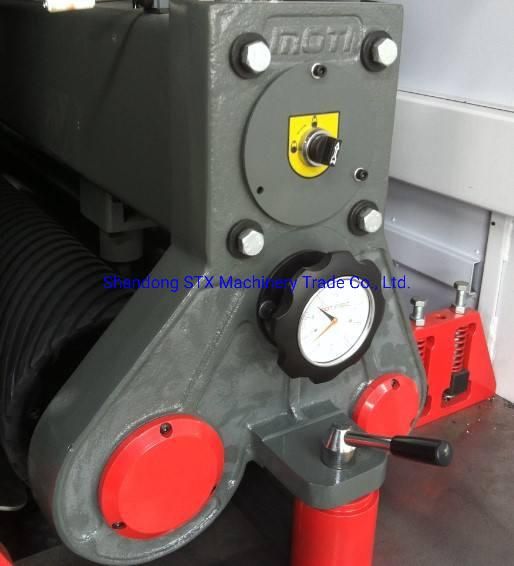

 Control Panel: Numeral control panel CH-525 is used to adjust thickness figures.

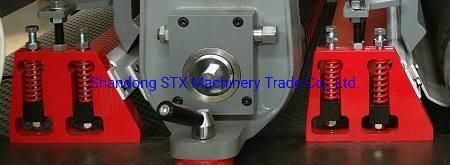

 Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineWood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineDouble pressing roller structure design ensures stable feeding of work piece.
 All casting parts are used on sanding and pressing
 units' structure. They will be more stable and hardly
 deformed ensures long time precision

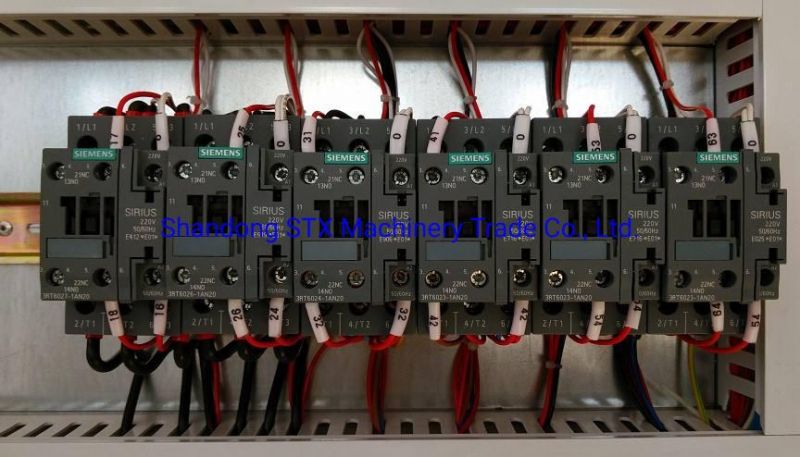

of the machine.Wood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineWood Furniture Board Calibrating Sanding Machine Wide Belt Sander MachineSIEMENS Buttons have steady and long service life.

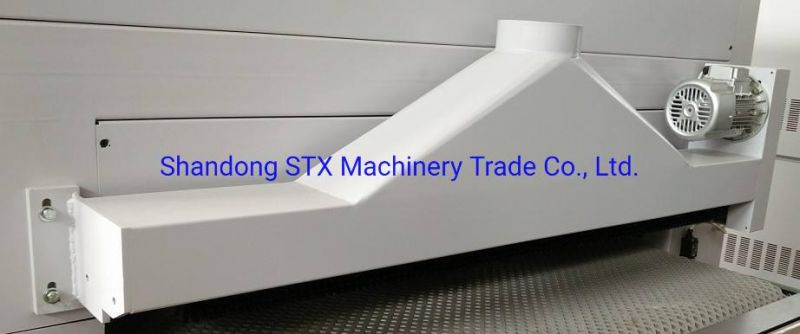

 Brush roller is equipped at rear side cleaning work pieces well.
