• Model NO.：SK2000
• Transmission：Imported High Precision 3 Axis Ball Screw Trans
• Table Structure：Thickened Vacuum Adsorption Table
• Drive&Servo Motor：Syntec,Delta
• Max Traveling Speed：80m,Min
• Spindle Rotary Speed：0-24000r,Min
• Working Voltage：AC380V,3 Phase,50Hz
• Control System：Syntec,Delta
• Processing Unit：Power Processing Unit
• Servo Motor：High-Power Servo Motor+Ball Screw Transmission
• Transport Package：Customized Wooden Carton
• Specification：1220X2440X200mm
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：3000

Basic Info.

Model NO. SK2000 Transmission Imported High Precision 3 Axis Ball Screw Trans Table Structure Thickened Vacuum Adsorption Table Drive&Servo Motor Syntec/Delta Max Traveling Speed 80m/Min Spindle Rotary Speed 0-24000r/Min Working Voltage AC380V/3 Phase/50Hz Control System Syntec/Delta Processing Unit Power Processing Unit Servo Motor High-Power Servo Motor+Ball Screw Transmission Transport Package Customized Wooden Carton Specification 1220X2440X200mm Trademark Mars Origin China HS Code 8458110090 Production Capacity 3000

Product Description

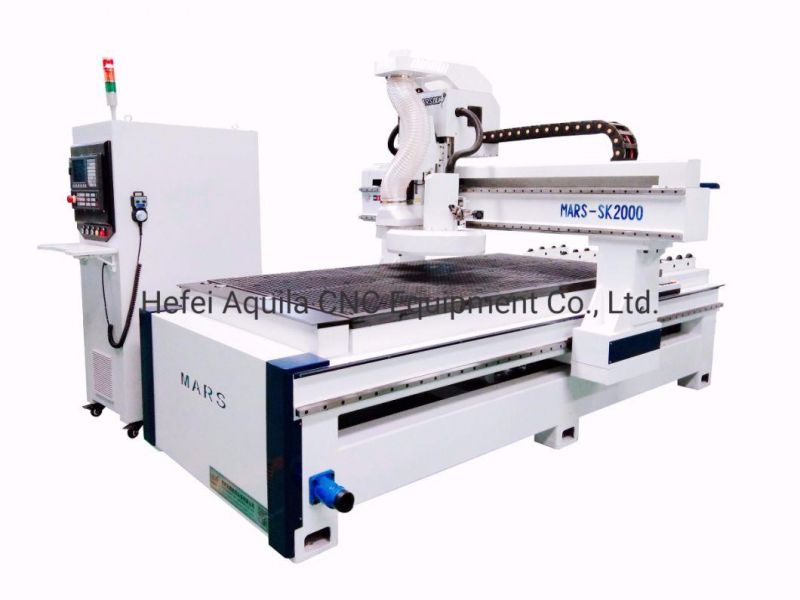

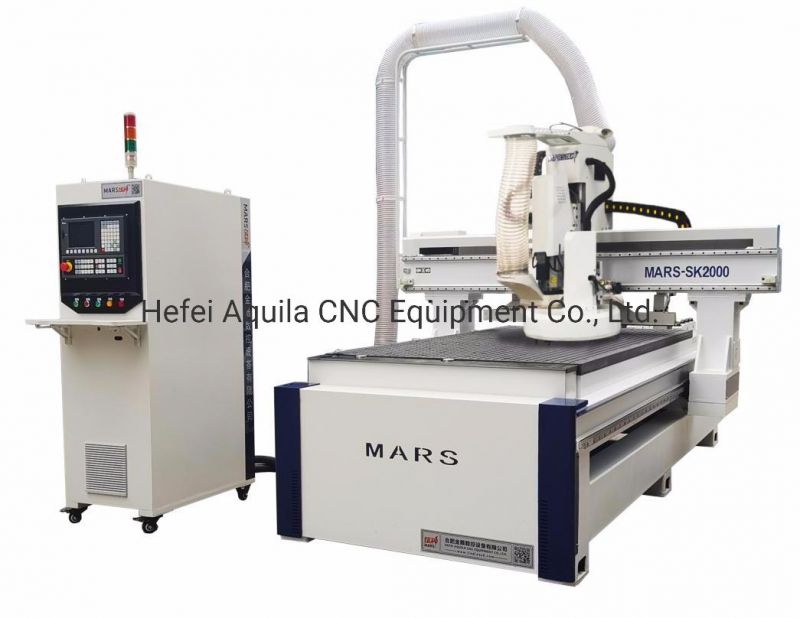

Customized 9KW 6KW Spindle Tracking Mode High Precision Three-Axis Ball Screw Disc Tool Change Maching CNC Router Machine

Keywords:  15 years experience of production
                          ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                         Three Brand: Mars, Golden Eagle,Borio



Technical Parameters:


Model	MARS-SK2000
Working Area	1220x2440x200mm
Table Size	X1300*Y2500
Table Structure	Thickened vacuum adsorption table
Drive&Servo Motor	SYNTEC/DELTA
Max Working Speed	30m/min
Main Spindle Power	9KW spindle+tracking mode circular servo tools change
Tool library	Disc servo tool magazine(8/12/16 can be change)
Max.Rotating Speed	0-24000rpm.
Vacuun Pump Power	11KW
Trans Mission Mode	Three-axis Taiwan imported large-size high-precision screw
Work Voltage	380V 50Hz
Installation Way	Cavity vacuum adsorption
Pushing device	automatic pushing and vacuuming, can be docked with the unloading platform
Positioning device	L-type cylinder positioning
Automatic tool	Automatic tool setting function
Repeat positioning accuracy	0.05mm

Applicable Materials:

Wood doors, cabinets, panels, office furniture, tables and chairs, doors and windows, speakers, game cabinets, computer desks, sewing machines, musical instruments, acrylic, PVC, density boards, milling, punching, cutting, etc.




Application:SK2000 is MARS new designed machine in 2020, mainly for customized panel furniture industry and one-time processing of high-end molded doors milling
Material:  It suitable for processing Acrylic, PVC, MDF(density board) materials
Strength: Easy operation, high standard and functional processing for furniture production, it's MARS spot products in 2021.

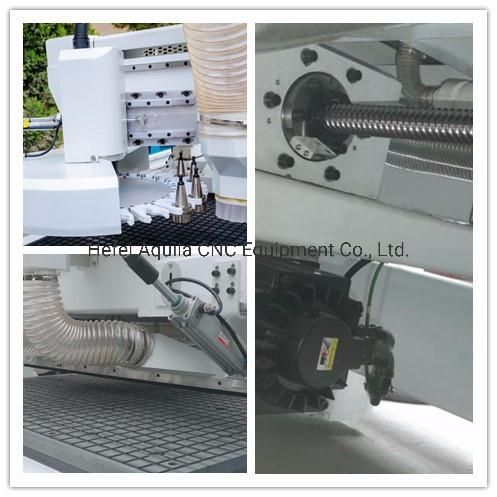

Accessories:

Samples:

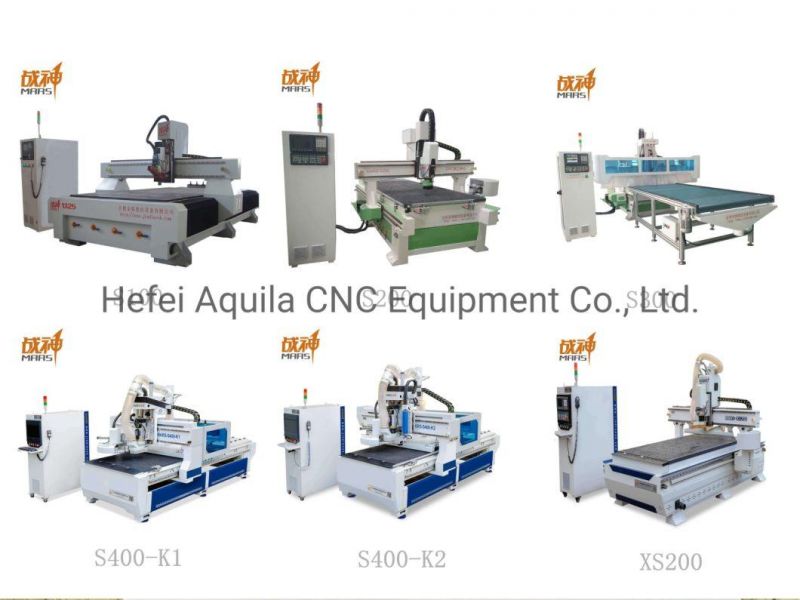

Similar Products :
