• Model NO.：ELE1325
• Inverter：5.5kw Fuling Inverter
• Control System：DSP A11 Control System
• Motor and Driver：450b Stepper Motor and 860h Leadshine Driver
• Working Voltage：380V, 3pH, 50Hz (Option)
• Working Table：T Slot & Vacuum Working Table
• Machine Bed Structure：Strong Frame Structure
• Rack：Helical Rack
• Linear Guide：Taiwan Hiwin Linear Guide Rails
• X Y Axis Structure：Helical Rack Gears Transmission
• Z Axis Structure：Taiwan Tbi Ball Screw Transmission
• Limit Switch：Japan Omron
• Vacuum Pump：5.5kw Water Circulation Vacuum Pump
• Dust Collector：3kw Double Bag Dust Collector
• Transport Package：Wooden Box
• Specification：1300x2500x200mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300*2500*200mm

Table Surface

T slot & vacuum working table

Structure

10-12mm industrial class square tube strong structure

X Y axis

Helical rack gears transmission on XY axis

Taiwan TBI ball screw transmission on Z axis

Spindle

4.5kw HQD air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor and driver

Inverter

5.5kw Fuling inverter

Command Language

G Code

Control System

DSP A11 control system

Computer Interface

USB

Software Compatibility

Artcam 2012 software for free, (Option: Artcam Type3 Software)

Working voltage

380V/50HZ/3PH

Vacuum pump

5.5kw water circulation vacuum pump

3kw double bag dust collector

Taiwan linear guide rails

PS: All the working area and specifications can be customized according to your requests.

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others

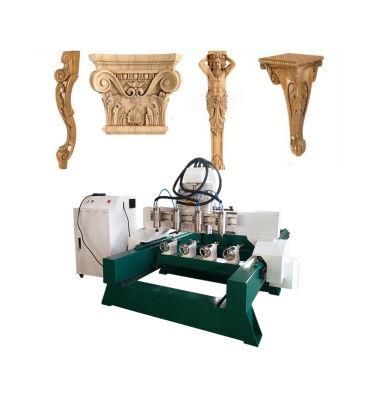

Relief sculpture and 3D engraving and Cylindrical object.



Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions


After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

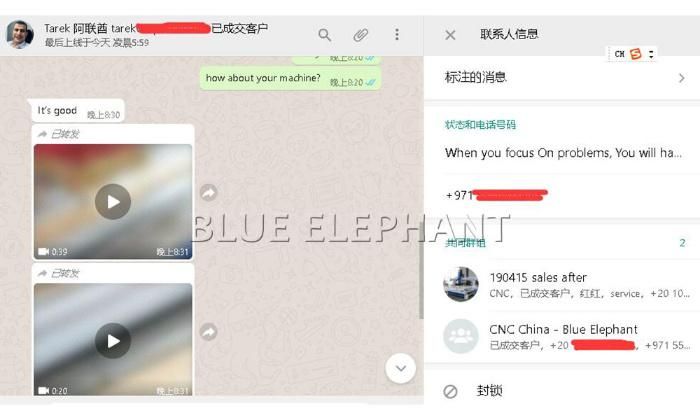

* Use online contact methods such as skype whatsapp facebook to provide online services to customers.







Packaging & Delivery

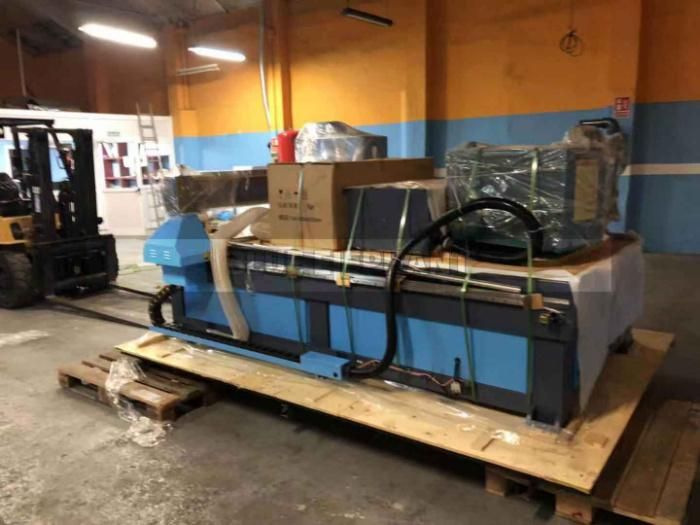

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.

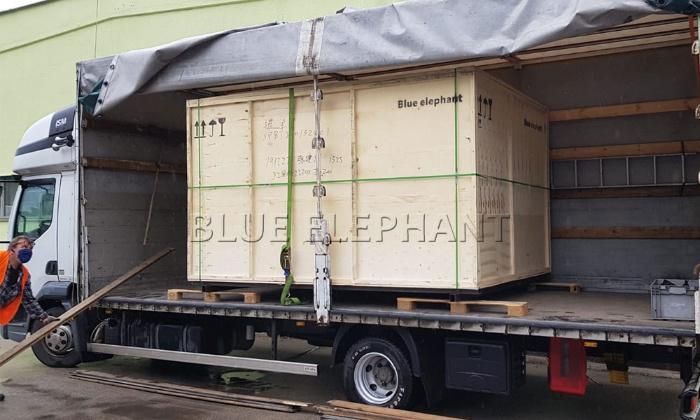

5.If you need a wooden box, we will make a wooden box.

Delivery Detail: Shipped in 25-30 working days after payment.



Company Introduction

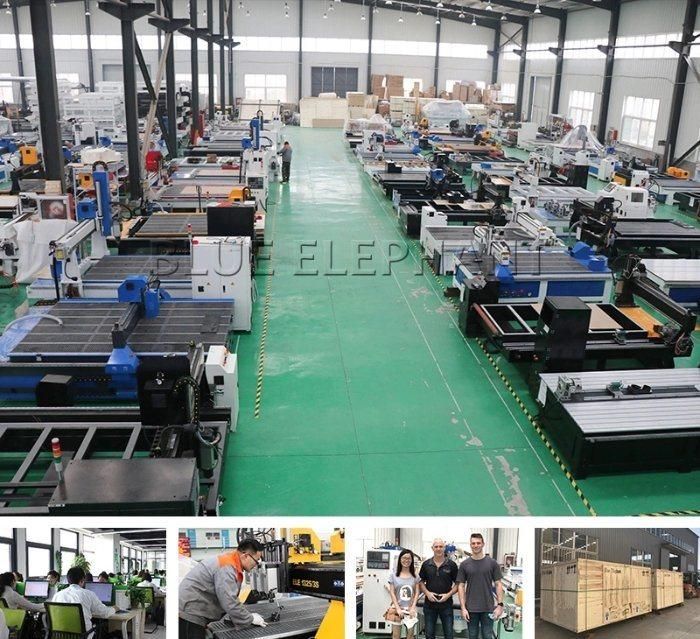

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
