Double Planer Bottom Saw Machine

Qingdao Samac International Trading Co., Ltd.
  • Type:Rip Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:Artificial
  • Automatic Grade:Semiautomatic
  • Precision:Precision

Base Info

  • Model NO.:RMS9323,9326
  • Certification:ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Transport Package:Film
  • Specification:RMS9323,9326
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:80sets,Month

Description

Basic Info.

Model NO. RMS9323/9326 Certification ISO Customized Customized Condition New Color Customized Transport Package Film Specification RMS9323/9326 Trademark SAMACH Origin China Production Capacity 80sets/Month

Product Description

Double planer bottom Saw Machine

RMS9323/9326
Double Planer Bottom Saw Machine




High efficiency large-scale planing saw processing of solid wood materials such as wall panels, anti-corrosion templates.

Double Planer Bottom Saw Machine

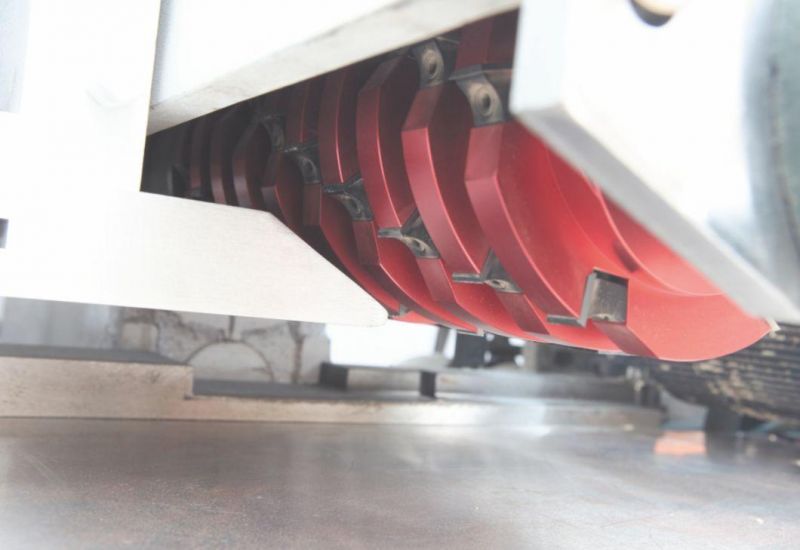

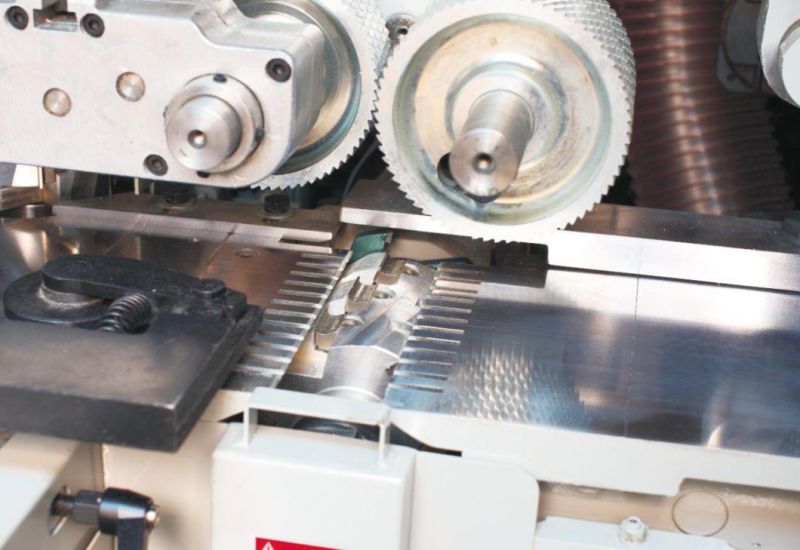

Multiple sets of imported spiral cutter for fine planing, stable performance, high precision, smooth and delicate workpiece surface.

Double Planer Bottom Saw Machine

modelsRMS9323RMS9326
Machining width20-230mm20-260
Machining thickness10-75mm10-80
Min. processing length630/450mm550/300
saw spindle diameter40mm40mm
Saw spindle speed3600rpm3600rpm
Diameter of planer shaft40mm40mm
Shaft speed of planer6000r/min7000rpm
Total power of motor34.82kw36KW
Bottom tool4kw4KW
Upper tool5.5kw5.5KW
Lower saw shaft motor22kw22KW
Feed motor2.2kw3KW
Beam lifting motor0.75kw0.75KW
Gas pressure0.4-0.6mpa0.4-0.6mpa
Diameter of suction port2x120mm3*Φ150
Overall size3600*1300*1500mm3200*1250*1680mm
Machine tool weight2340kg2800kg

Double Planer Bottom Saw Machine
Double Planer Bottom Saw Machine
Double Planer Bottom Saw Machine

Reasons to choose SAMACH:

1: Good resources with No.1 quality
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls
5: friend partner relationship.

Quality and service moving us forward! Looking forward to cooperating with you!
