• Transport Package：Export Packing
• Specification：1600X750X1200mm
• Trademark：TRILLION SHINE
• Origin：China
• HS Code：8465950000
• Production Capacity：1000 Sets,Year

Basic Info.

Transport Package Export Packing Specification 1600X750X1200mm Trademark TRILLION SHINE Origin China HS Code 8465950000 Production Capacity 1000 Sets/Year

Product Description

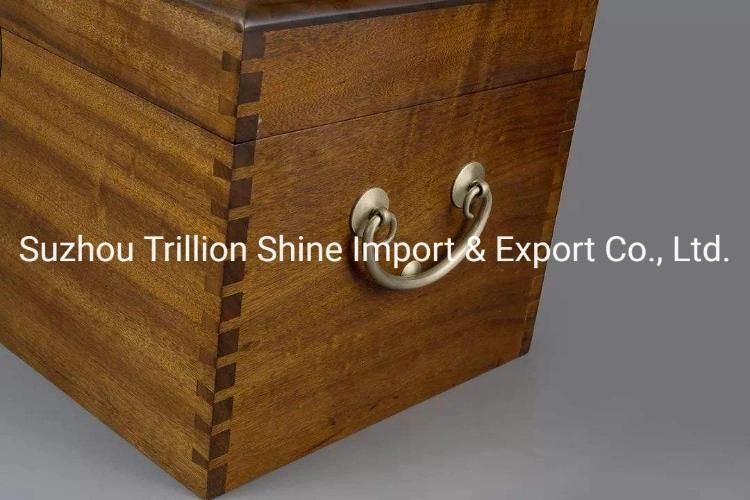

CNC-600 CNC Dovetail Tenoner Machine is mainly used for making wood furniture, wood drawer, wood box etc.

Features

1.  Adopting CNC operation interface;
2. The motion system uses high-precision ball screw and linear guide rail transmission;
3. Adopting high precision servo system, work smoothly and stable.
4. The touch screen HMI, easy operation, convenient for inputting and modifying the processing parameters, compensation.
5. Pressing system uses 4 pressing cylinders.
6. High processing efficiency, can process a variety of shapes wooden male and female tenon;

Specification


Model	CNC650
Max working width	605 mm
Max working thickness	40 mm
Number of shaft/spindle	1 pc.
Spindle speed	18000r/min
Power of Spindle Motor	2.2kw
X Axis motor(servo)	0.75kw
Y Axis motor	0.75kw
Air supply pressure	6 Bar
Dust Extraction Capacity	550m3/h
Overall dimensions(LXWXH)	1650*850*1200mm
Weight	650kg

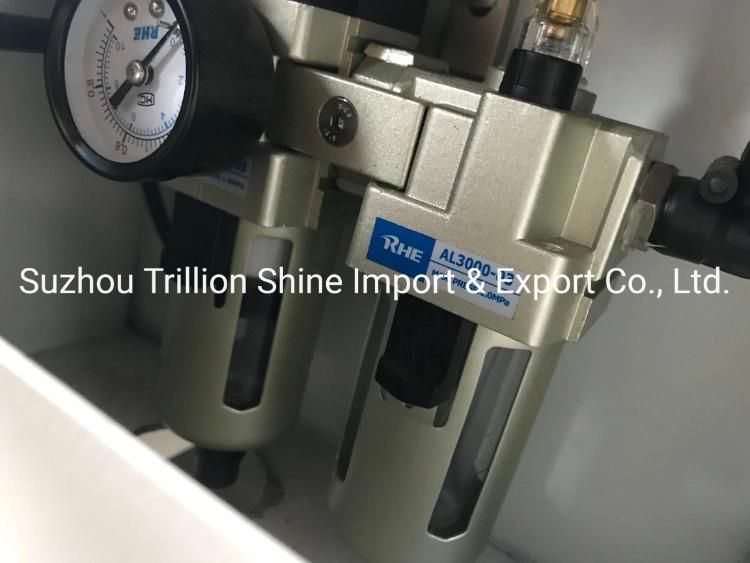

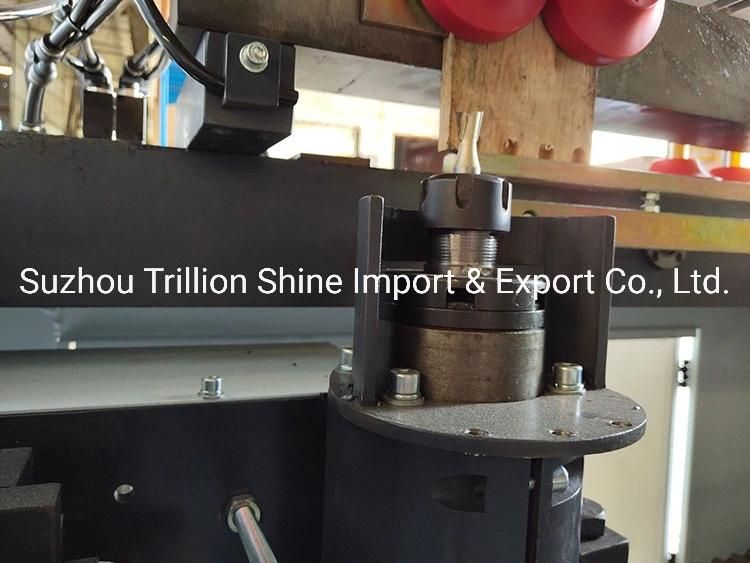

Detailed Images
