1325 Multi Process Engraving Machine 4 Workstage Atc Woodworking CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:4 Spindles
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE
Base Info
- Model NO.:GJH 1325-4
- Customized:Customized
- Condition:New
- Color:Customized
- Application:Wood, MDF, Arylic
- Guide Rail:Hiwin 25
- Screw:Tbi 2510
- Running Mode:Servo
- Driver:Leadshine (Optional Delta, Yaskawa)
- Motor:800W
- Spindle:4.5kw, Air Cooling
- Control System:Nc Studio 95A
- Transport Package:Plywood Case
- Specification:GJH 1325-4
- Trademark:GJH
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:10 Sets Per Month
Description
Basic Info.
Model NO. GJH 1325-4 Customized Customized Condition New Color Customized Application Wood, MDF, Arylic Guide Rail Hiwin 25 Screw Tbi 2510 Running Mode Servo Driver Leadshine (Optional Delta, Yaskawa) Motor 800W Spindle 4.5kw, Air Cooling Control System Nc Studio 95A Transport Package Plywood Case Specification GJH 1325-4 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 10 Sets Per MonthProduct Description

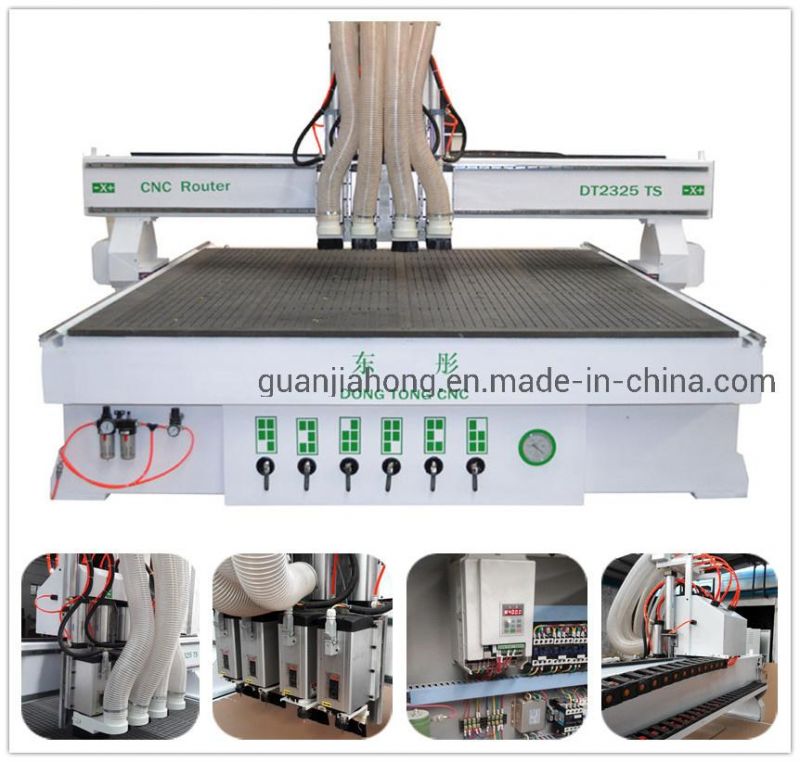

Multi Process engraving machine, 4 Workstage ATC CNC Router,from professional cnc woodworking engraving machine maufacturor.

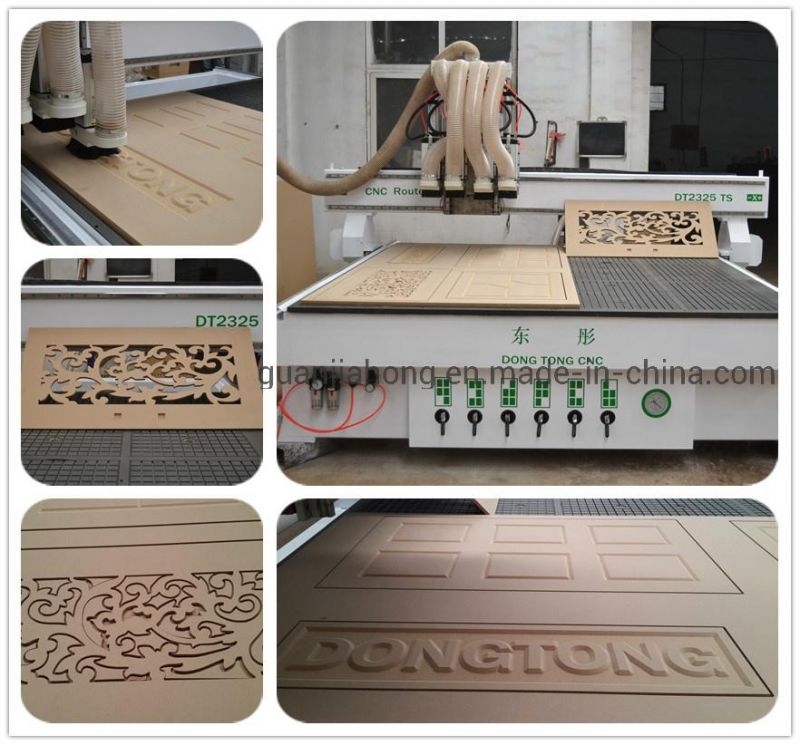

1. GJH 1325-4 engraving machine is designed for board, furniture, handicraft, etc. Four Workstage ATC functions bring us high-efficiency and high quality.
2. Lathe bed adopts welded structure, high strength and no variant, ensure the machining accuracy.
3. For Y axis, double motor drive, power stable operation, high precision.
4. Genuine NC Studio 95A for control system.
5. Support breakpoint processing, easy to adjust.
6. All kinds of machine models can be customized according to the clients' requirements.
Modle: GJH 1325-4
Machine size: 3100x2200x1900mm
Packing size: 3200x2280x2500mm
Working area: 1300mm×2500mm
Total power: 20KW
N.W.: 1500Kgs
G.W.: 1800Kgs
Transmission | X/Y: Rack; Z:Screw |
Screw No. | TBI 2510 |
Guild rail | HIWIN 25 |
Driving mode | Mixed servo |
Driver | Leadshine Y758-XZ2206 |
Motor | 86 Y 110XZ |
Motor power | 800W |
Working voltage | 380V |
Gantry | 10MM welded structure |
Table | Vacuum table & T-slot combined |
Operation system | NC Studio 95A |
Spindle | 4.5KW, Air-cooling, 4 sets |
Lubrication | Auto |
Dust collector | Yes |
Vacuum pump | 380V 5.5KW Domestic water cooling |
NO | Index | Index | Parameter |
1 | Traveling | X axis | 2100mm |
Y axis | 2500mm | ||
Z axis | 200mm | ||
2 | Table size | 2300x2500mm | |
3 | Accuracy | Working accuracy | 0.02mm |
Reposition accuracy | 0.02mm | ||
4 | Transmission | X axis | Rack |
Y axis | Rack | ||
Z axis | Screw | ||
5 | Speed | Max Rapid | 30000mm/min |
Max working speed | 20000mm/min | ||
6 | Spindle | Spindle power | 4.5KW |
(Air-cooling) | Spindle speed | 0-18000r/min | |
7 | Drive mode | Servo | |
8 | Working voltage | AC380/50HZ | |
9 | Command language | G Code | |
10 | Operation system | NC Studio 95A (Genuine) |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer
should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support
and service by email/fax/ tel and lifetime technical support
If you have specific requirement for wood CNC Router, wood engraving machine,
customization is available.
