• Model NO.：YDM-300
• Capacity：500kg-1000kg
• Transport Package：Container
• Specification：20FT,40FT Container
• Trademark：INVECH MACHINERY
• Origin：China
• Production Capacity：500PCS,Year

Basic Info.

Model NO. YDM-300 Capacity 500kg-1000kg Transport Package Container Specification 20FT/40FT Container Trademark INVECH MACHINERY Origin China Production Capacity 500PCS/Year

Product Description

Pipes Wood Shavings Sawdust Drying Machine for Pallet Block Production

Brief Introduction

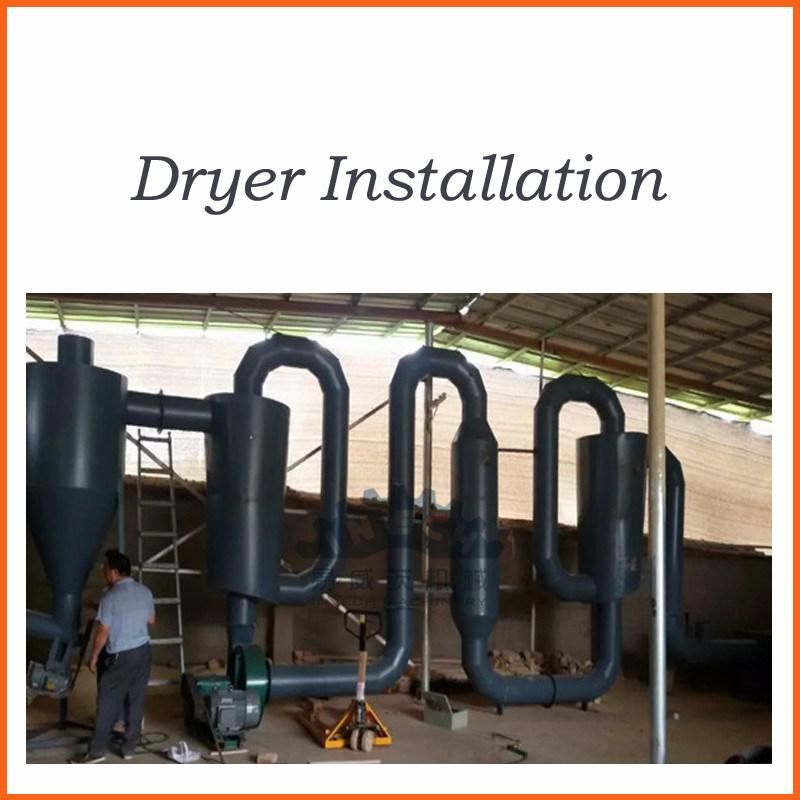

Air-flowing type Dryer machine ,also known as hot air pipeline drying machine ,using the principle of airflow drying instantly ,loading the wet wood shavings and sawdust into the drying tube by the screw conveyor.Under the transport and dispersion of the high speed hot air, the moisture in the wet material is evaporated,then we can get the dry final product for further processing.


Technical Parameters:

Model	YDM-300	YDM-500	YDM-800
Capacity(kg/h)	300-400	400-500	700-800
Power	4kw	10kw	15kw
Package size(m)	1.5X1.22X0.98+2.3x1.4x1.5	1.45x1.2x1.0+2.5x1.9x1.5	2.24*1.63*1.61+1.55*1.2*1.5
Wood Waste Consumption	10-15kg/h	25-30 kg/h	35-40 kg/h
Weight (kg)	1500	1800	3000

Related Machines

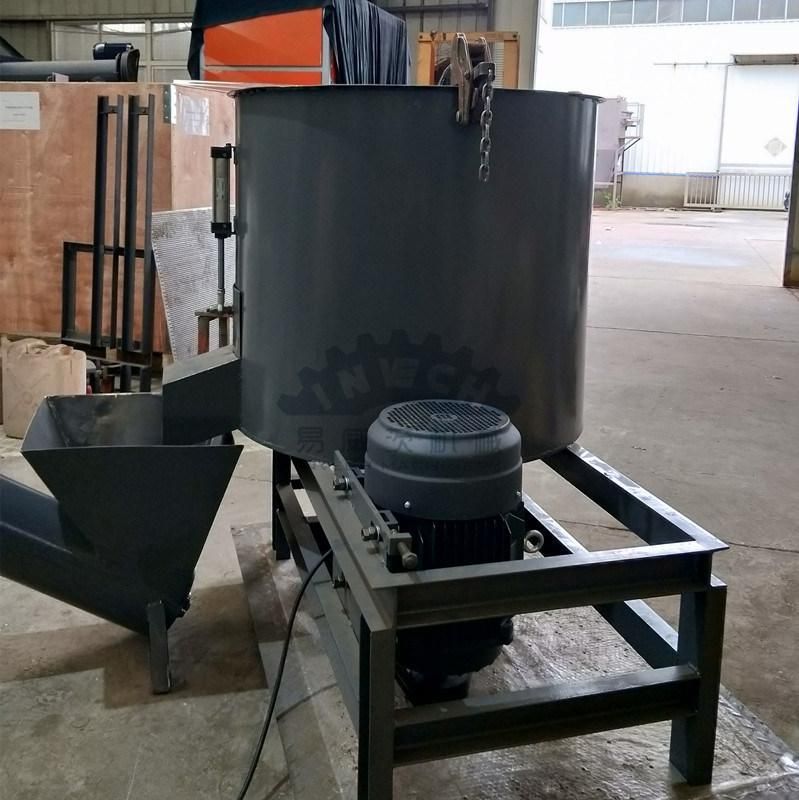

Sawdust Glue Mixer
