• Model NO.：MH2500,2
• Trademark：QDZD
• Origin：Qingdao
• Production Capacity：100sets,Year

Basic Info.

Model NO. MH2500/2 Trademark QDZD Origin Qingdao Production Capacity 100sets/Year

Product Description

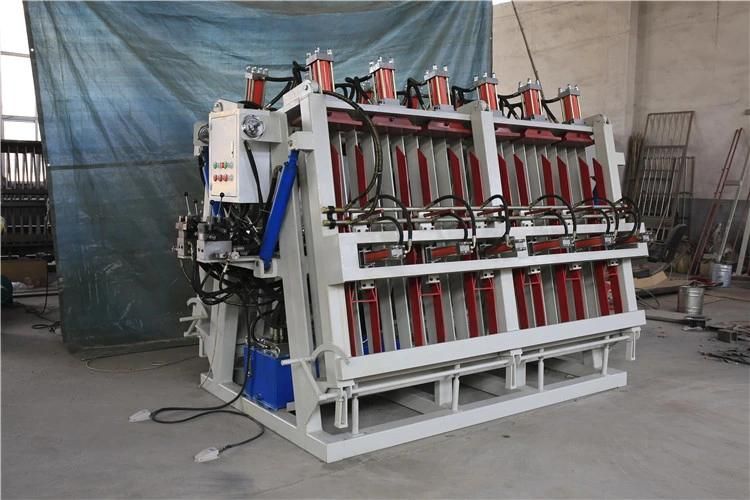

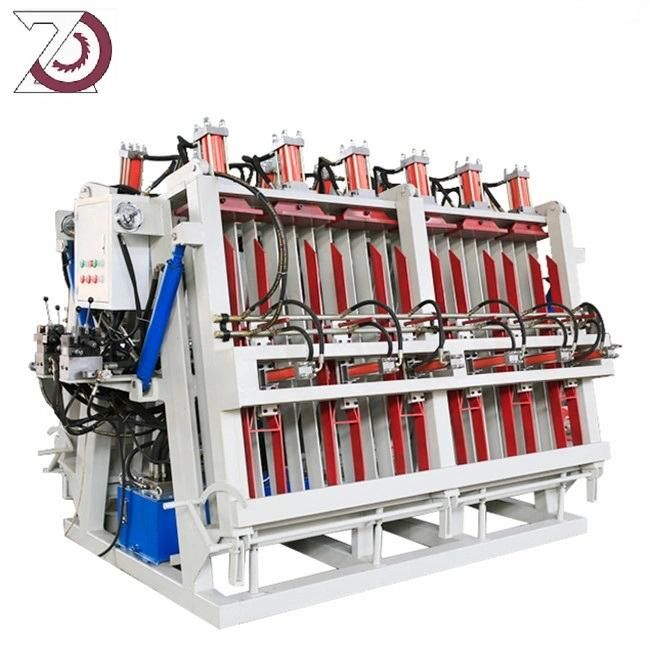

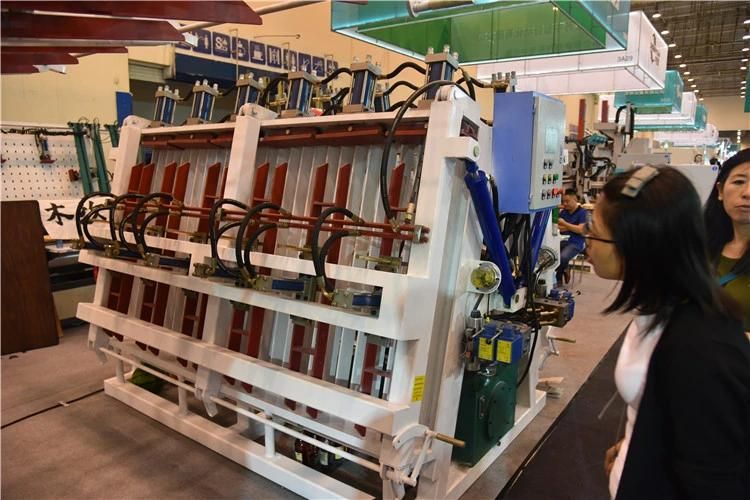

Two sides hydraulic block board composer



SPECIFICATION

Type	MH2500/2	MH4600/2	MH5200/2
Max processing length	2500 mm	4600 mm	5200 mm
Max processing width	1300 mm	1300 mm	1300 mm
Max processing thickness	150 mm	150 mm	150 mm
The diameter of upper cylinder pressure	Φ80 mm	Φ80 mm	Φ80 mm
Number of upper cylinder	6 pcs	12 pcs	14 pcs
The diameter of side cylinder pressure	Φ40 mm	Φ40 mm	Φ40 mm
Number of side cylinder	6 pcs	12 pcs	14 pcs
Side of the cylinder bore	80 mm	63 mm	63 mm
Side lift cylinder number	4 pcs	4 pcs	4 pcs
Power	380v 50HZ	380v 50HZ	380v 50HZ
Hydraulic motor power	5.5 KW	5.5 KW	5.5 KW
Rated pressure	16 Mpa	16 Mpa	16 Mpa
Overall size/mm	3100x2300x2320	5000x2300x2320	5600x2300x2320
Weight/kg	3800	6800	7200

Our Services:
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
* Welcome to visit our factory.

(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.

(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
