• Model NO.：LT-1212,1325,2030
• Product Keyword：1325 Wood Router Price
• Spindle：3kw,4.5kw Water Cooling Spindle
• Working Area：1300*2500*200mm
• Control System：Ncstudio,Mach3 Control System
• Guide Rail：Square Linear Guide Rail
• Table Surface：T-Slot Table or Vacuum Table
• Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860
• Bed Structure：Cast Iron Vertical Shafts and Steel Gantry
• Inverter：Fuling Inverter
• Transmission：X, Y Axis by Helical Gear Rack, Z Axis by Tbi Ball
• Software：Artcam,Type3
• Water Tank：Water Cooling System for Soft Metal
• Rotary Device：Rotary Axis for Round Material Processing
• Post Processor：.Nc
• Application：Advertising, Furniture Making
• Transport Package：Plywood Case
• Specification：3300*1950*1950mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

ModelLT-1325 wood CNC Router

Working area

1300(X)*2500(Y)*200(Z)mm

Machine structure

cast iron vertical shafts and steel gantry

Table surface

Aluminum T-slot table with PVC

Spindle

3.0KW water cooling spindle

pindle rotating speed

0-24000 rpm

Collect size

ER20

Guide rail

Taiwan Hiwin linear square guide rail

Transmission

X,Y axis by helical gear rack, Z axis by TBI ball screw

Motors and drivers

Stepper motor 450B and leadshine drivers MA860

Control system

Ncstudio control system

Invert

Fuling invert

Max. idling speed

25m/min

Max. working speed

12m/minWorking Accuracy<0.05/300mmInstruction formate G code *.u00 *.mmg *.pltWorking voltageAC220V/AC380V,single phase/3 phase,50-60HzStandard softwareArtcam2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD and other CAM/CAD softwareControl CabinetIndependentOtherTool Sensor; Oiling system; Water pump; Tool Box,English manuals etc.Optional parts1,4.5kw Water cooled spindle;
2,Rotary axis for engraving round wood:price depends on its diameter;
3,Dust collector;
4,Stainless steel water tank;
5,Mach3 USB control system.

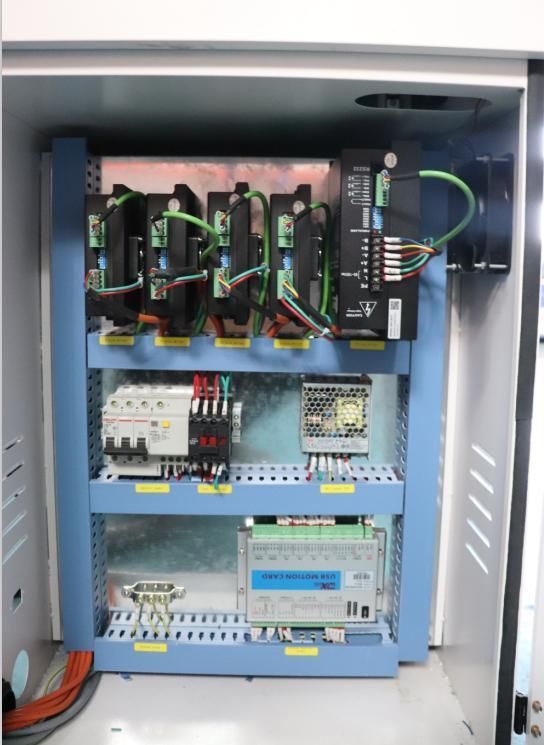

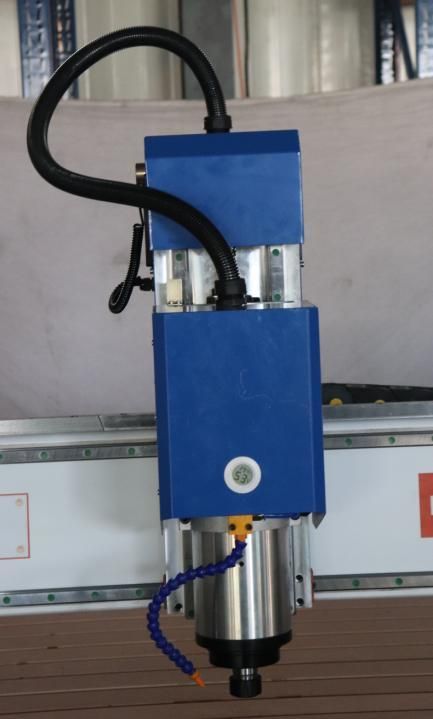

 Main parts of the machine:

Application:

1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters,
shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.

Packaging & Shipping

Our Services

 After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.



Company Information

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.

Contact Us:

Any requirement or question feel free to contact me. I will be very glad to serve for you.
